895-104 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 104POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Contact Material	Contact Type	Gender	Number of Positions/Bay/Row	Termination	Card Type	Number of Positions	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Color	Mounting Type	Contact Finish	Read Out	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Features
EDAC Inc. 895-104-541-803	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Copper Alloy	Cantilever	Female	52	Wire Wrap	Non Specified - Dual Edge	104	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Black	Through Hole	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	125 °C	-40 C

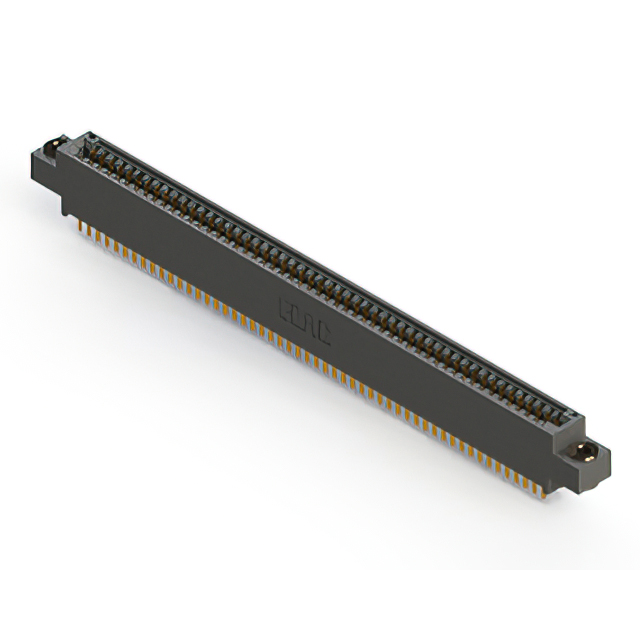

EDAC Inc. 895-104-521-803	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Copper Alloy	Cantilever	Female	52	Solder	Non Specified - Dual Edge	104	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Black	Through Hole	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	125 °C	-40 C
EDAC Inc. 895-104-500-207	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Copper Alloy	Cantilever	Female	52	Solder Eyelet(s)	Non Specified - Dual Edge	104	Flush Mount M3 Threaded Insert Top Opening			Black	Through Hole	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	125 °C	-40 C
EDAC Inc. 895-104-525-507	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Copper Alloy	Cantilever	Female	52	Solder	Non Specified - Dual Edge	104	M3 Threaded Insert Top Mount Opening			Black	Through Hole	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	125 °C	-40 C
EDAC Inc. 895-104-556-812	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Copper Alloy	Cantilever	Female	52	Solder	Non Specified - Dual Edge	104	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Black	Board Edge Straddle Mount	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	125 °C	-40 C	Card Extender
EDAC Inc. 895-104-525-808	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Copper Alloy	Cantilever	Female	52	Solder	Non Specified - Dual Edge	104	4-40 Threaded Insert Top Mount Opening			Black	Through Hole	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	125 °C	-40 C
EDAC Inc. 895-104-523-202	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Copper Alloy	Cantilever	Female	52	Solder	Non Specified - Dual Edge	104	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Black	Through Hole	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	125 °C	-40 C
EDAC Inc. 895-104-544-812	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Copper Alloy	Cantilever	Female	52	Wire Wrap	Non Specified - Dual Edge	104	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Black	Through Hole	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	125 °C	-40 C

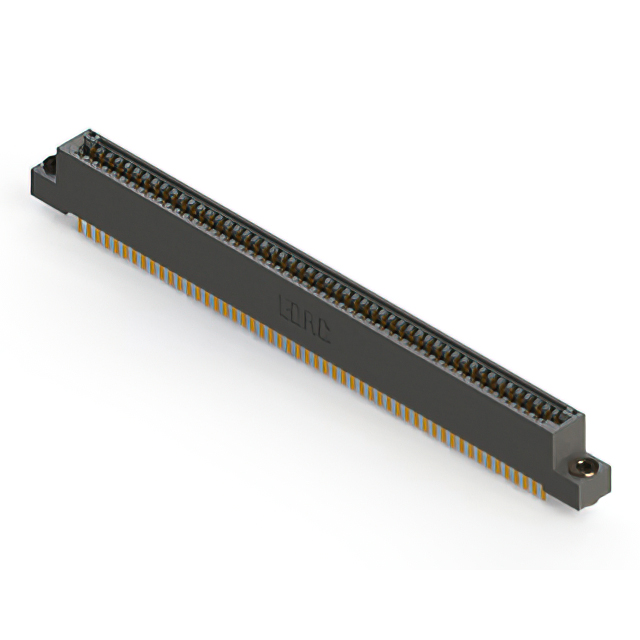

EDAC Inc. 895-104-520-203	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Copper Alloy	Cantilever	Female	52	Solder	Non Specified - Dual Edge	104	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Black	Through Hole	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	125 °C	-40 C
EDAC Inc. 895-104-540-504	2	Polyphenylene Sulfide (PPS)	0.1 "	2.54 mm	Copper Alloy	Cantilever	Female	52	Wire Wrap	Non Specified - Dual Edge	104		0.156 "	3.96 mm	Black	Through Hole	Gold	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.25 Ám	10 Áin	125 °C	-40 C
