G61L0C-P Series
Manufacturer: ODU
Beta
⌘K

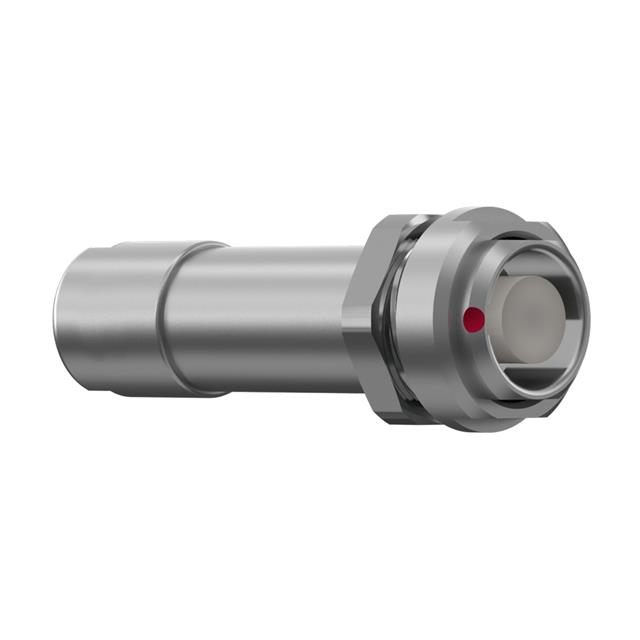

ODU MINI-SNAP RECEPT, STY 6, SZ
| Part | Shielding | Primary Material | Insert Material | Ingress Protection | Contact Finish - Mating | Shell Material | Contact Material | Cable Opening | Cable Opening [Max] | Cable Opening [Min] | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Features | Voltage Rating | Mounting Feature | Applications | Orientation | Shell Finish | Color | Shell Size - Insert | Current Rating (Amps) | Connector Type | Number of Positions | Cable Opening [Min] | Cable Opening [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Unshielded | Metal | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Gold | Brass | Brass | 4 mm 5.2 mm | 0.205 in | 0.157 in | Push-Pull | 120 °C | -40 C | Free Hanging (In-Line) Panel Mount | Backshell Ground | 333 V | Bulkhead - Front or Rear Side Nut | Industrial Medical Military Testing Equipment & Measurement | 0 | Chrome over Nickel | Silver | 1 | 7.5 A | Receptacle Female Sockets | 7 | ||||
Unshielded | Metal | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Gold | Brass | Brass | 0.126 in 3.2 mm | 0.079 in 2 mm | Push-Pull | 120 °C | -40 C | Free Hanging (In-Line) Panel Mount | Backshell Ground | 550 VDC | Bulkhead - Front or Rear Side Nut | Industrial Medical Military Testing Equipment & Measurement | 0 | Chrome over Nickel | Silver | 1 | 15 A | Receptacle Female Sockets | 2 | |||||
Unshielded | Metal | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Gold | Brass | Brass | 0.283 " | 0.236 in | Push-Pull | 120 °C | -40 C | Free Hanging (In-Line) Panel Mount | Backshell Ground | 333 V | Bulkhead - Front or Rear Side Nut | Industrial Medical Military Testing Equipment & Measurement | 0 | Chrome over Nickel | Silver | 1 | 7.5 A | Receptacle Female Sockets | 7 | 6 mm | 7.2 mm | |||
Unshielded | Metal | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Gold | Brass | Brass | 7 mm 7.7 mm | 0.303 in | 0.276 " | Push-Pull | 120 °C | -40 C | Free Hanging (In-Line) Panel Mount | Backshell Ground | 333 V | Bulkhead - Front or Rear Side Nut | Industrial Medical Military Testing Equipment & Measurement | 0 | Chrome over Nickel | Silver | 1 | 7.5 A | Receptacle Female Sockets | 6 | Crimp | |||
Unshielded | Metal | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Gold | Brass | Brass | 0.126 in 3.2 mm | 0.079 in 2 mm | Push-Pull | 120 °C | -40 C | Free Hanging (In-Line) Panel Mount | Backshell Ground | 550 VDC | Bulkhead - Front or Rear Side Nut | Industrial Medical Military Testing Equipment & Measurement | 0 | Chrome over Nickel | Silver | 1 | 15 A | Receptacle Female Sockets | 2 | Crimp | ||||
Unshielded | Metal | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Gold | Brass | Brass | 7 mm 7.7 mm | 0.303 in | 0.276 " | Push-Pull | 120 °C | -40 C | Free Hanging (In-Line) Panel Mount | Backshell Ground | 333 V | Bulkhead - Front or Rear Side Nut | Industrial Medical Military Testing Equipment & Measurement | 0 | Chrome over Nickel | Silver | 1 | 7.5 A | Receptacle Female Sockets | 6 | ||||
Unshielded | Metal | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Gold | Brass | Brass | 0.244 " | 0.197 in | Push-Pull | 120 °C | -40 C | Free Hanging (In-Line) Panel Mount | Backshell Ground | 500 V | Bulkhead - Front or Rear Side Nut | Industrial Medical Military Testing Equipment & Measurement | 0 | Chrome over Nickel | Silver | 1 | 7.5 A | Receptacle Female Sockets | 4 | 5 mm | 6.2 mm | |||
Unshielded | Metal | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Gold | Brass | Brass | 0.283 " | 0.236 in | Push-Pull | 120 °C | -40 C | Free Hanging (In-Line) Panel Mount | Backshell Ground | 500 V | Bulkhead - Front or Rear Side Nut | Industrial Medical Military Testing Equipment & Measurement | 0 | Chrome over Nickel | Silver | 1 | 12 Amps | Receptacle Female Sockets | 6 mm | 7.2 mm |
