RS1 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN SOCKET STRIP SKT 12 POS 2.54MM SOLDER ST THRU-HOLE
| Part | Contact Shape | Contact Material | Contact Finish Thickness - Post | Insulation Material | Number of Positions | Fastening Type | Termination | Current Rating (Amps) | Insulation Color | Mounting Type | Number of Rows | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Contact Finish - Post | Connector Type | Contact Type | Voltage Rating | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Square | Brass | Flash | Polybutylene Terephthalate (PBT) Glass Filled | 12 | Push-Pull | Solder | 3 A | Black | Through Hole | 1 | Flash | -40 C | 105 ░C | 0.335 " | 8.51 mm | Gold | Receptacle | Forked | 250 VAC | Gold | 0.118 in | 3 mm | 0.1 " | 2.54 mm | All | UL94 V-0 |

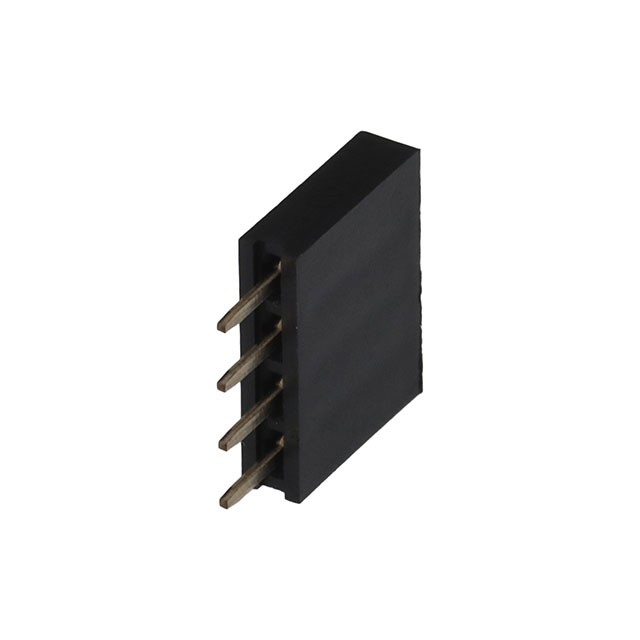

 Adam Tech | Square | Phosphor Bronze | Flash | Polybutylene Terephthalate (PBT) Glass Filled | 4 | Push-Pull | Solder | 3 A | Black | Through Hole | 1 | Flash | -40 C | 105 ░C | 0.335 " | 8.51 mm | Gold | Receptacle | Forked | 250 V | Gold | 0.118 in | 3 mm | 0.1 " | 2.54 mm | All | UL94 V-0 |

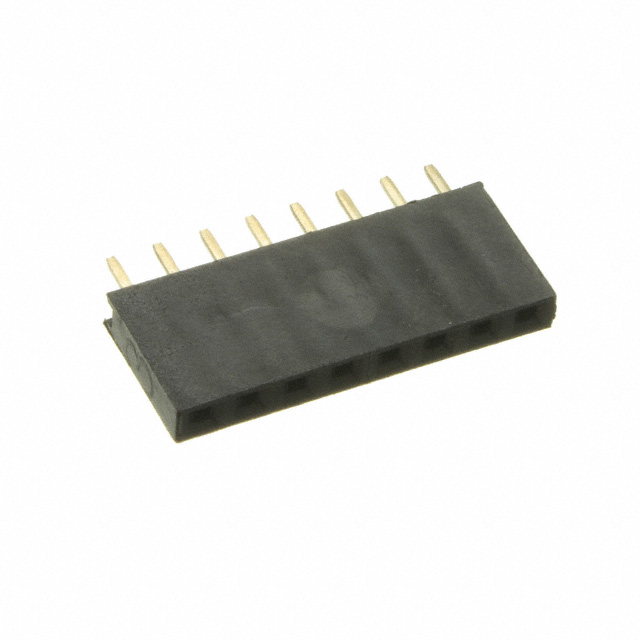

 Adam Tech | Square | Brass | Flash | Polybutylene Terephthalate (PBT) Glass Filled | 8 | Push-Pull | Solder | 3 A | Black | Through Hole | 1 | Flash | -40 C | 105 ░C | 0.335 " | 8.51 mm | Gold | Receptacle | Forked | 250 VAC | Gold | 0.118 in | 3 mm | 0.1 " | 2.54 mm | All | UL94 V-0 |

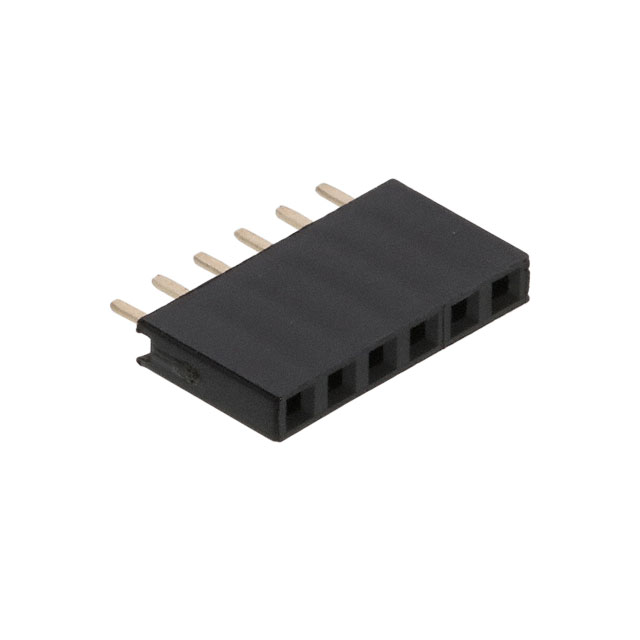

 Adam Tech | Square | Brass | Flash | Polybutylene Terephthalate (PBT) Glass Filled | 6 | Push-Pull | Solder | 3 A | Black | Through Hole | 1 | Flash | -40 C | 105 ░C | 0.335 " | 8.51 mm | Gold | Receptacle | Forked | 250 VAC | Gold | 0.118 in | 3 mm | 0.1 " | 2.54 mm | All | UL94 V-0 |
Adam Tech | Square | Brass | Flash | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Push-Pull | Solder | 3 A | Black | Through Hole | 1 | Flash | -40 C | 105 ░C | 0.335 " | 8.51 mm | Gold | Receptacle | Forked | 250 VAC | Gold | 0.118 in | 3 mm | 0.1 " | 2.54 mm | All | UL94 V-0 |
 Adam Tech | Square | Brass | Flash | Polybutylene Terephthalate (PBT) Glass Filled | 11 | Push-Pull | Solder | 3 A | Black | Through Hole | 1 | Flash | -40 C | 105 ░C | 0.335 " | 8.51 mm | Gold | Receptacle | Forked | 250 VAC | Gold | 0.118 in | 3 mm | 0.1 " | 2.54 mm | All | UL94 V-0 |
