OSTTF04 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

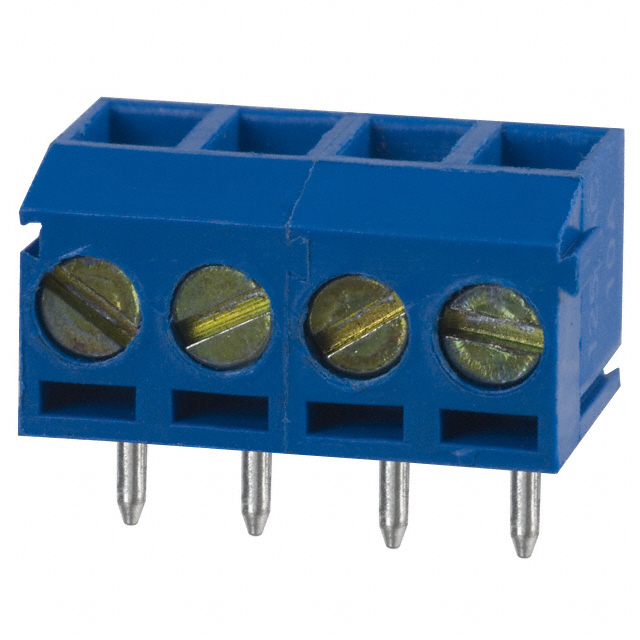

TERM BLK 4P TOP ENTRY 3.5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Screw Thread | Screw Material - Plating | Clamp Material - Plating [custom] | Housing Material | Contact Material - Plating | Torque - Screw | Torque - Screw | Current | Wire Termination | Voltage | Mating Orientation | Wire Gauge [Max] | Wire Gauge [Min] | Pitch | Pitch | Positions Per Level | Features | Color | Mounting Type | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | M2 | Steel - Zinc Plated | Stainless Steel | Thermoplastic | Brass - Tin Plated | 1.7 Lb-In | 0.2 Nm | 10 A | Screw - Leaf Spring Wire Guard | 125 V | Vertical with Board | 26 AWG | 16 AWG | 3.5 mm | 0.138 " | 4 | Interlocking (Side) | Blue | Through Hole | 1 |
