GRPB082 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER SMD 16POS 1.27MM
| Part | Insulation Height | Insulation Height | Mounting Type | Insulation Material | Contact Finish Thickness - Mating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Type | Termination | Contact Finish - Post | Contact Finish Thickness - Post | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Material | Contact Length - Mating | Contact Length - Mating | Shrouding | Style | Number of Positions Loaded | Fastening Type | Material Flammability Rating | Number of Positions | Contact Shape | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

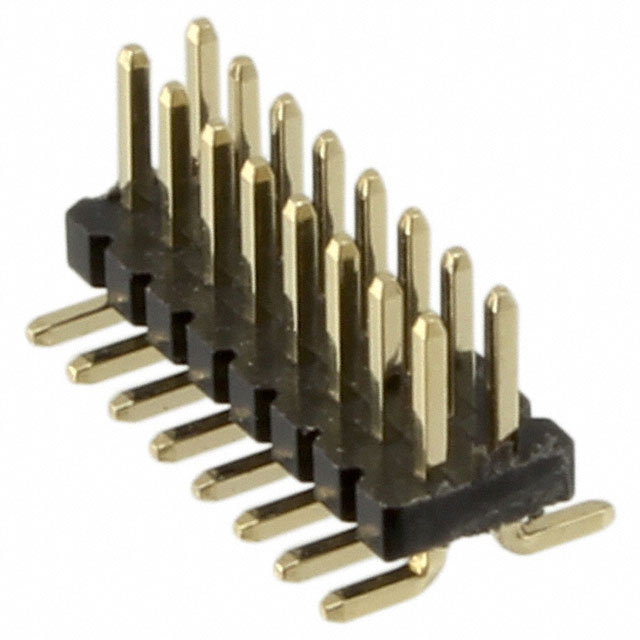

 Sullins Connector Solutions | 0.039 " | 1 mm | Surface Mount | Nylon 9T Polyamide (PA9T) | Flash | Header | -40 °C | 105 ░C | 2 | Male Pin | Solder | Gold | Flash | 0.05 in | 1.27 mm | 0.05 in | 1.27 mm | Gold | Brass | 3 mm | 0.118 in | Unshrouded | Board to Board Cable | All | Push-Pull | UL94 V-0 | 16 | Square | ||

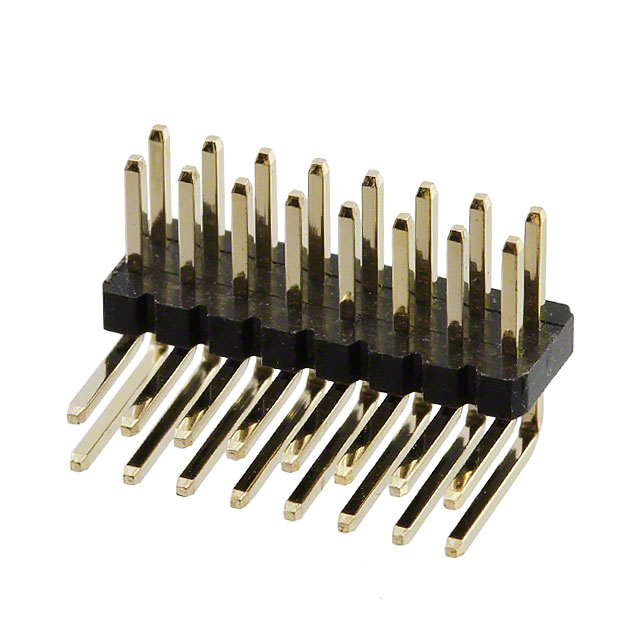

 Sullins Connector Solutions | 0.134 in | 3.4 mm | Through Hole Right Angle | Nylon 9T Polyamide (PA9T) | Flash | Header | -40 °C | 105 ░C | 2 | Male Pin | Solder | Gold | Flash | 0.05 in | 1.27 mm | 0.05 in | 1.27 mm | Gold | Brass | 3 mm | 0.118 in | Unshrouded | Board to Board Cable | All | Push-Pull | UL94 V-0 | 16 | Square | 2.5 mm | 0.098 in |
