AST213 Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
TERM BLK 12POS TOP ENT 3.5MM PCB
| Part | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating | Housing Material | Pitch | Pitch | Voltage | Current | Wire Termination | Wire Gauge [Max] | Wire Gauge [Min] | Number of Levels | Color | Mating Orientation | Positions Per Level | Features | Mounting Type | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | 3.5 mm | 0.138 " | 150 V | 10 A | Screwless - Spring Cage Tension Clamp | 28 AWG | 16 AWG | 1 | Black | Vertical with Board | 12 | Push Button Actuated | Through Hole | |

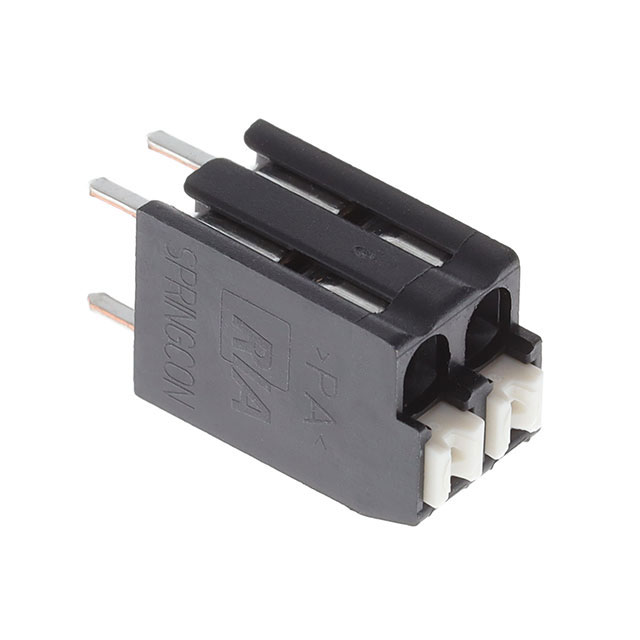

 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | 3.5 mm | 0.138 " | 150 V | 10 A | Screwless - Spring Cage Tension Clamp | 28 AWG | 16 AWG | 1 | Black | Vertical with Board | 2 | Push Button Actuated | Through Hole | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | 3.5 mm | 0.138 " | 150 V | 10 A | Screwless - Spring Cage Tension Clamp | 28 AWG | 16 AWG | 1 | Black | Vertical with Board | 3 | Push Button Actuated | Through Hole | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | 3.5 mm | 0.138 " | 150 V | 10 A | Screwless - Spring Cage Tension Clamp | 28 AWG | 16 AWG | 1 | Black | Vertical with Board | 9 | Push Button Actuated | Through Hole | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | 3.5 mm | 0.138 " | 150 V | 10 A | Screwless - Spring Cage Tension Clamp | 28 AWG | 16 AWG | 1 | Black | Vertical with Board | Push Button Actuated | Through Hole | 7 | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | 3.5 mm | 0.138 " | 150 V | 10 A | Screwless - Spring Cage Tension Clamp | 28 AWG | 16 AWG | 1 | Black | Vertical with Board | 11 | Push Button Actuated | Through Hole | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | 3.5 mm | 0.138 " | 150 V | 10 A | Screwless - Spring Cage Tension Clamp | 28 AWG | 16 AWG | 1 | Black | Vertical with Board | 5 | Push Button Actuated | Through Hole | |
METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | 3.5 mm | 0.138 " | 150 V | 10 A | Screwless - Spring Cage Tension Clamp | 28 AWG | 16 AWG | 1 | Black | Vertical with Board | 10 | Push Button Actuated | Through Hole | |

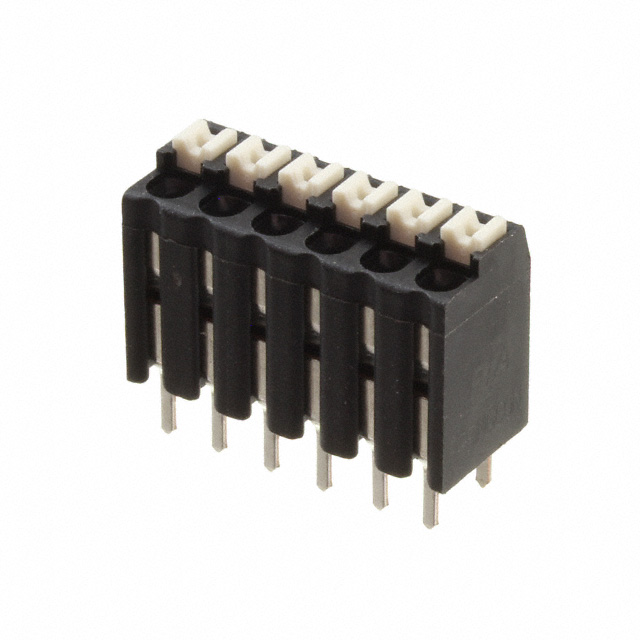

 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | 3.5 mm | 0.138 " | 150 V | 10 A | Screwless - Spring Cage Tension Clamp | 28 AWG | 16 AWG | 1 | Black | Vertical with Board | 6 | Push Button Actuated | Through Hole | |

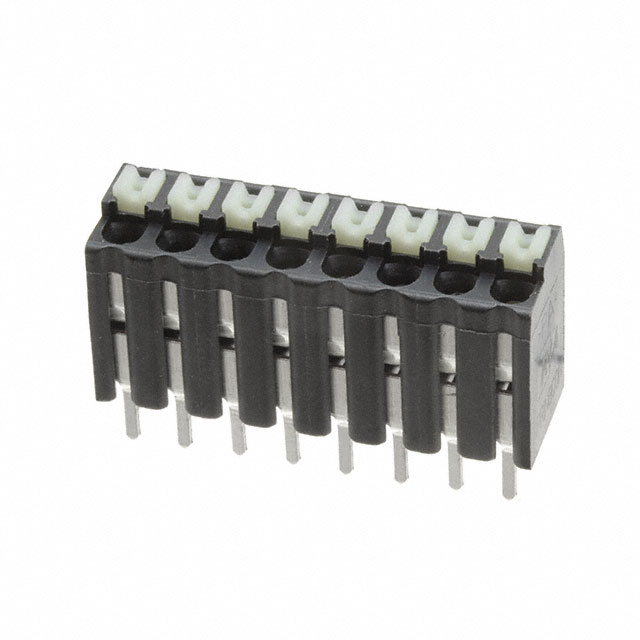

 METZ CONNECT USA Inc. | Copper Alloy - Tin Plated | -40 C | 105 ░C | Steel | Nylon 6T Polyamide (PA6T) | 3.5 mm | 0.138 " | 150 V | 10 A | Screwless - Spring Cage Tension Clamp | 28 AWG | 16 AWG | 1 | Black | Vertical with Board | 8 | Push Button Actuated | Through Hole |
