6000FE Series
Manufacturer: Belden Inc.
Beta
⌘K

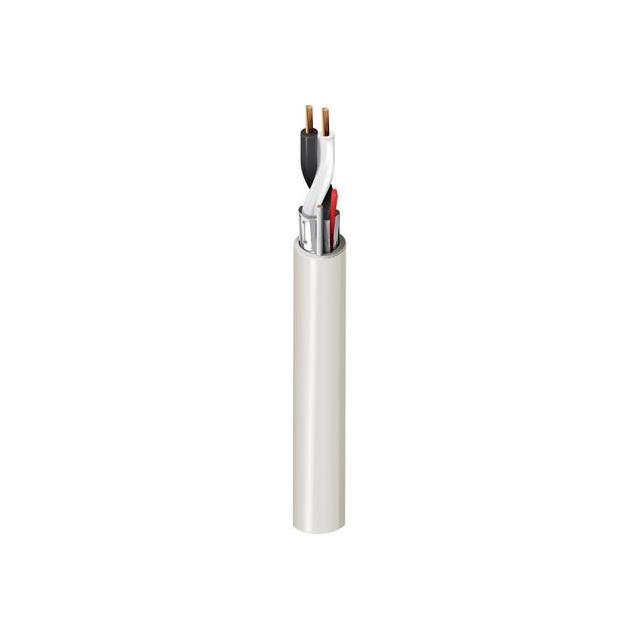

CABLE 2COND 12AWG NATURAL
| Part | Shield Material | Shield Coverage | Features | Conductor Material | Shield Type | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket Color | Usage | Cable Type | Ratings | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Voltage | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Drain Wire Rip Cord | Copper Bare | Foil | 0.381 mm | 0.015 in | Natural | Security Sound | Multi-Conductor | UL Style CL2P | 304.8 m | 1000 ft | 6.6 mm | 0.26 in | 2 | 150 V | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 19 | 25 AWG | 12 AWG | Low Smoke Poly-Vinyl Chloride (LSPVC) |
