EXB-V4 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

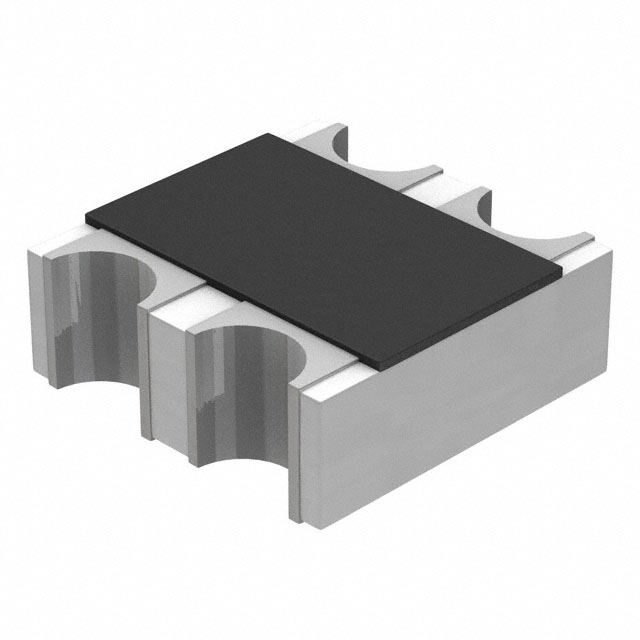

RES ARRAY 2 RES 510K OHM 0606
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Circuit Type | Number of Pins | Number of Resistors | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Temperature Coefficient | Tolerance | Mounting Type | Supplier Device Package | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Resistance (Ohms) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 0.7 mm | 0.028 in | Isolated | 4 | 2 | 0.063 in | 1.6 mm | 0.063 in | 1.6 mm | 200 ppm/°C | 5 % | Surface Mount | 0606 | 0606 Concave | -55 °C | 125 °C | ||
Panasonic Industrial Automation Sales | 0.7 mm | 0.028 in | Isolated | 4 | 2 | 0.063 in | 1.6 mm | 0.063 in | 1.6 mm | 200 ppm/°C | 5 % | Surface Mount | 0606 | 0606 Concave | -55 °C | 125 °C | 56 Ohms | |
Panasonic Industrial Automation Sales | 0.7 mm | 0.028 in | Isolated | 4 | 2 | 0.063 in | 1.6 mm | 0.063 in | 1.6 mm | 200 ppm/°C | 5 % | Surface Mount | 0606 | 0606 Concave | -55 °C | 125 °C | 270 Ohms | |
Panasonic Industrial Automation Sales | 0.7 mm | 0.028 in | Isolated | 4 | 2 | 0.063 in | 1.6 mm | 0.063 in | 1.6 mm | 200 ppm/°C | 5 % | Surface Mount | 0606 | 0606 Concave | -55 °C | 125 °C | 1.2 kOhms | |
Panasonic Industrial Automation Sales | 0.7 mm | 0.028 in | Isolated | 4 | 2 | 0.063 in | 1.6 mm | 0.063 in | 1.6 mm | 200 ppm/°C | 5 % | Surface Mount | 0606 | 0606 Concave | -55 °C | 125 °C | 2k | |
Panasonic Industrial Automation Sales | 0.7 mm | 0.028 in | Isolated | 4 | 2 | 0.063 in | 1.6 mm | 0.063 in | 1.6 mm | 200 ppm/°C | 5 % | Surface Mount | 0606 | 0606 Concave | -55 °C | 125 °C | 130 Ohms | |
Panasonic Industrial Automation Sales | 0.7 mm | 0.028 in | Isolated | 4 | 2 | 0.063 in | 1.6 mm | 0.063 in | 1.6 mm | 200 ppm/°C | 5 % | Surface Mount | 0606 | 0606 Concave | -55 °C | 125 °C | 120k | |
Panasonic Industrial Automation Sales | 0.7 mm | 0.028 in | Isolated | 4 | 2 | 0.063 in | 1.6 mm | 0.063 in | 1.6 mm | 200 ppm/°C | 5 % | Surface Mount | 0606 | 0606 Concave | -55 °C | 125 °C | 270 kOhms | |
Panasonic Industrial Automation Sales | 0.7 mm | 0.028 in | Isolated | 4 | 2 | 0.063 in | 1.6 mm | 0.063 in | 1.6 mm | 200 ppm/°C | 5 % | Surface Mount | 0606 | 0606 Concave | -55 °C | 125 °C | 1 kOhms | |
Panasonic Industrial Automation Sales | 0.7 mm | 0.028 in | Isolated | 4 | 2 | 0.063 in | 1.6 mm | 0.063 in | 1.6 mm | 200 ppm/°C | 5 % | Surface Mount | 0606 | 0606 Concave | -55 °C | 125 °C | 110 Ohms |
