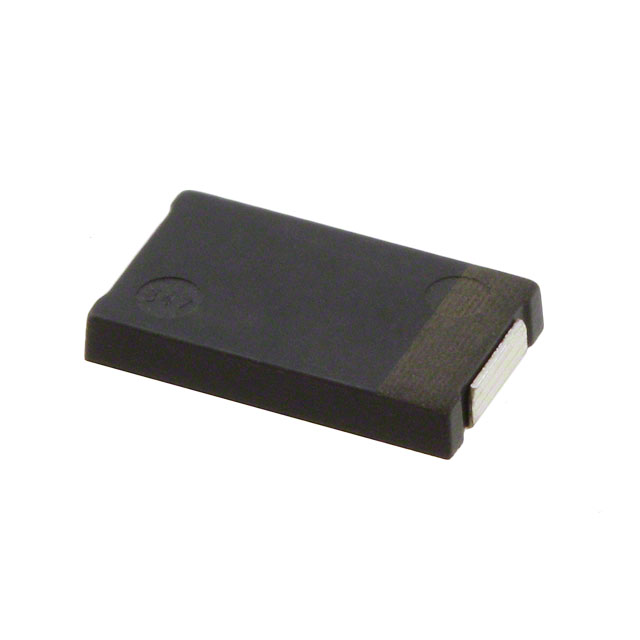

EEF-ST Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 270 ΜF, 2.5 V, 2917 [7343 METRIC], 0.006 OHM
| Part | ESR (Equivalent Series Resistance) | Ripple Current @ High Frequency | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] [z] | Voltage - Rated | Mounting Type | Lifetime @ Temp. | Type | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Operating Temperature [Max] | Operating Temperature [Min] | Capacitance | Tolerance | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 6 mOhms | 7.5 A | General Purpose | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 1.5 mm | 0.059 " | 2.5 V | Surface Mount | 2000 Hrs | Polymer | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 105 ░C | -55 °C | 270 µF | 20 % | 7343 Metric | 2917 |
