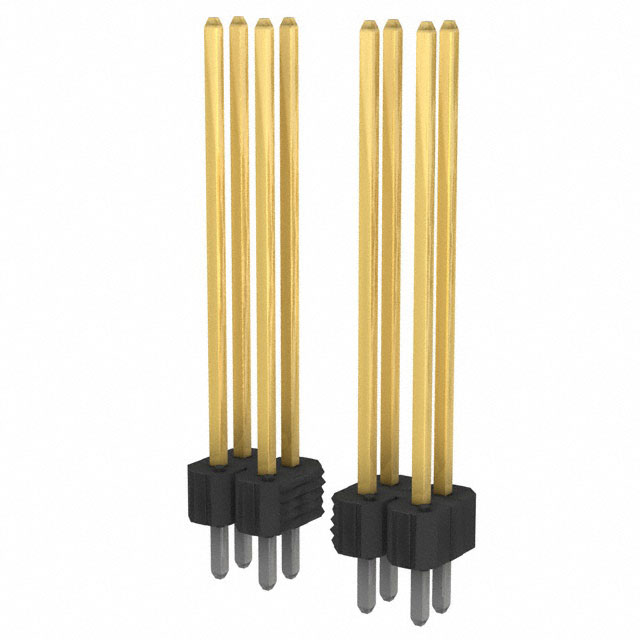

87901 Series

Catalog

CONN HEADER VERT 54POS 2.54MM

Part	Voltage Rating	Fastening Type	Overall Contact Length	Overall Contact Length	Connector Type	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Mounting Type	Insulation Height	Insulation Height	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Current Rating (Amps)	Number of Rows	Insulation Color	Contact Type	Shrouding	Termination	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating
Amphenol ICC (FCI) 87901-454HLF	110 VDC	Push-Pull	1.04 in	26.42 mm	Header	0.1 in	2.54 mm	20.83 mm	0.82 in	UL94 V-0	Square	0.12 in	3.05 mm	All	Through Hole	0.1 in	2.54 mm	Tin	2.54 çm	100 çin	54	5 A	2	Black	Male Pin	Unshrouded	Solder	Phosphor Bronze	2.54 mm	0.1 in
Amphenol ICC (FCI) 87901-470HLF	110 VDC	Push-Pull	1.04 in	26.42 mm	Header	0.1 in	2.54 mm	20.83 mm	0.82 in	UL94 V-0	Square	0.12 in	3.05 mm	All	Through Hole	0.1 in	2.54 mm	Tin	2.54 çm	100 çin	70	5 A	2	Black	Male Pin	Unshrouded	Solder	Phosphor Bronze	2.54 mm	0.1 in
Amphenol ICC (FCI) 87901-462HLF	110 VDC	Push-Pull	1.04 in	26.42 mm	Header	0.1 in	2.54 mm	20.83 mm	0.82 in	UL94 V-0	Square	0.12 in	3.05 mm	All	Through Hole	0.1 in	2.54 mm	Tin	2.54 çm	100 çin	62	5 A	2	Black	Male Pin	Unshrouded	Solder	Phosphor Bronze	2.54 mm	0.1 in
Amphenol ICC (FCI) 87901-440		Push-Pull	1.04 in	26.42 mm	Header	0.1 in	2.54 mm	20.83 mm	0.82 in	UL94 V-0	Square	0.12 in	3.05 mm	All	Through Hole	0.1 in	2.54 mm		2.54 çm	100 çin	40		2	Black	Male Pin	Unshrouded	Solder	Phosphor Bronze	2.54 mm	0.1 in
Amphenol ICC (FCI) 87901-110HLF	110 VDC	Push-Pull	1.04 in	26.42 mm	Header	0.1 in	2.54 mm	20.83 mm	0.82 in	UL94 V-0	Square	0.12 in	3.05 mm	All	Through Hole	0.1 in	2.54 mm		0.76 Ám	30 Áin	10	5 A	2	Black	Male Pin	Unshrouded	Solder	Phosphor Bronze	2.54 mm	0.1 in	Gold or Gold GXT™
Amphenol ICC (FCI) 87901-168HLF	110 VDC	Push-Pull	1.04 in	26.42 mm	Header	0.1 in	2.54 mm	20.83 mm	0.82 in	UL94 V-0	Square	0.12 in	3.05 mm	All	Through Hole	0.1 in	2.54 mm		0.76 Ám	30 Áin	68	5 A	2	Black	Male Pin	Unshrouded	Solder	Phosphor Bronze	2.54 mm	0.1 in	Gold or Gold GXT™
Amphenol ICC (FCI) 87901-436HLF	110 VDC	Push-Pull	1.04 in	26.42 mm	Header	0.1 in	2.54 mm	20.83 mm	0.82 in	UL94 V-0	Square	0.12 in	3.05 mm	All	Through Hole	0.1 in	2.54 mm	Tin	2.54 çm	100 çin	36	5 A	2	Black	Male Pin	Unshrouded	Solder	Phosphor Bronze	2.54 mm	0.1 in
Amphenol ICC (FCI) 87901-154HLF	110 VDC	Push-Pull	1.04 in	26.42 mm	Header	0.1 in	2.54 mm	20.83 mm	0.82 in	UL94 V-0	Square	0.12 in	3.05 mm	All	Through Hole	0.1 in	2.54 mm		0.76 Ám	30 Áin	54	5 A	2	Black	Male Pin	Unshrouded	Solder	Phosphor Bronze	2.54 mm	0.1 in	Gold or Gold GXT™
Amphenol ICC (FCI) 87901-114HLF	110 VDC	Push-Pull	1.04 in	26.42 mm	Header	0.1 in	2.54 mm	20.83 mm	0.82 in	UL94 V-0	Square	0.12 in	3.05 mm	All	Through Hole	0.1 in	2.54 mm		0.76 Ám	30 Áin	14	5 A	2	Black	Male Pin	Unshrouded	Solder	Phosphor Bronze	2.54 mm	0.1 in	Gold or Gold GXT™

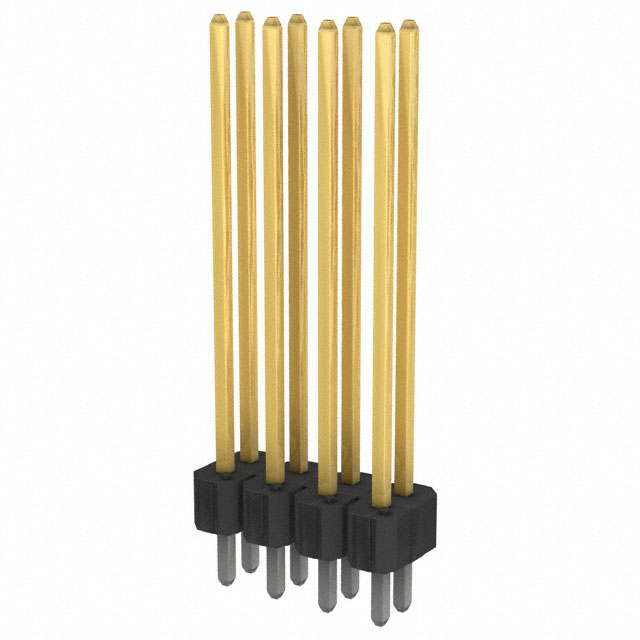

Amphenol ICC (FCI) 87901-208HLF	110 VDC	Push-Pull	1.04 in	26.42 mm	Header	0.1 in	2.54 mm	20.83 mm	0.82 in	UL94 V-0	Square	0.12 in	3.05 mm	All	Through Hole	0.1 in	2.54 mm		0.38 µm	15 µin	8	5 A	2	Black	Male Pin	Unshrouded	Solder	Phosphor Bronze	2.54 mm	0.1 in	Gold or Gold GXT™
