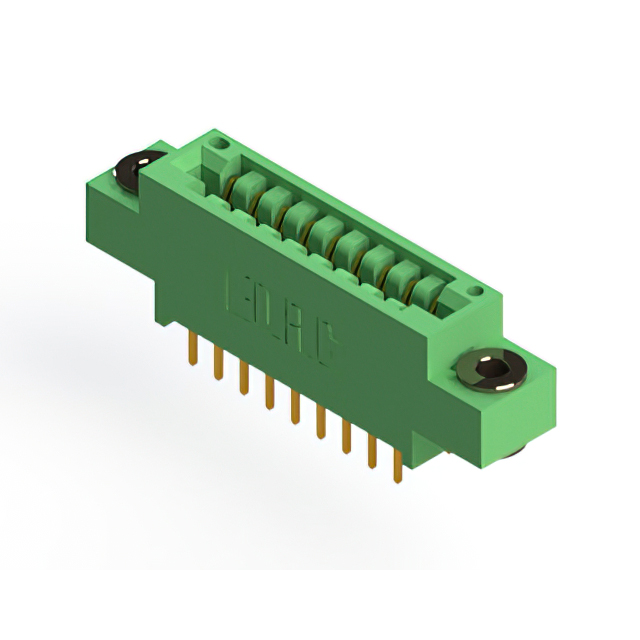

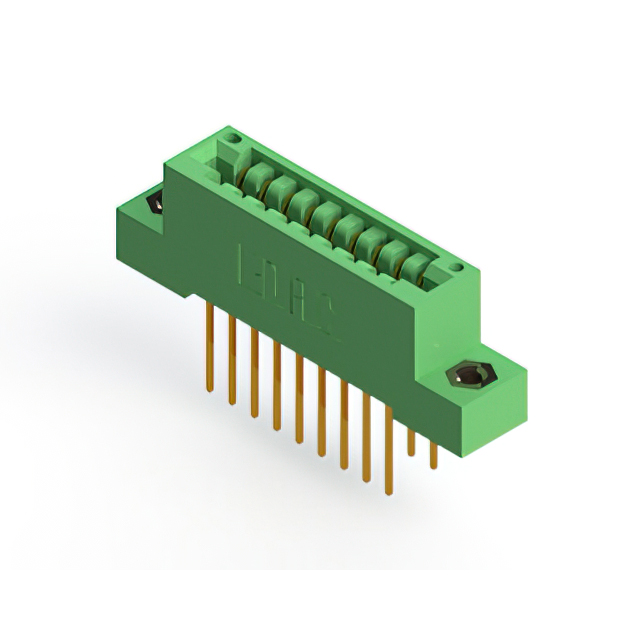

846-018 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE SGL FMALE 18POS 0.125
...
| Part | Contact Type | Mounting Type | Card Type | Pitch [x] | Pitch [x] | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Number of Rows | Material - Insulation | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Finish | Read Out | Number of Positions | Termination Rows | Termination | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Cantilever | Through Hole | Non Specified - Single Edge | 0.125 in | 3.18 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 1 | Diallyl Phthalate (DAP) | 18 | 10 Áin | 0.25 Ám | Copper Alloy | Gold | Single | 18 | 1 | Wire Wrap | |||||
 EDAC Inc. | Cantilever | Through Hole | Non Specified - Single Edge | 0.125 in | 3.18 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 1 | Diallyl Phthalate (DAP) | 18 | 10 Áin | 0.25 Ám | Copper Alloy | Gold | Single | 18 | 1 | Solder Eyelet(s) | M3 Threaded Insert Top Mount Opening | ||||
 EDAC Inc. | Cantilever | Through Hole | Non Specified - Single Edge | 0.125 in | 3.18 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 1 | Diallyl Phthalate (DAP) | 18 | 10 Áin | 0.25 Ám | Copper Alloy | Gold | Single | 18 | 1 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | ||||
 EDAC Inc. | Cantilever | Through Hole Right Angle | Non Specified - Single Edge | 0.125 in | 3.18 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 1 | Diallyl Phthalate (DAP) | 18 | 10 Áin | 0.25 Ám | Copper Alloy | Gold | Single | 18 | 1 | Solder | 4-40 Threaded Insert Top Mount Opening | ||||
 EDAC Inc. | Cantilever | Through Hole | Non Specified - Dual Edge | 0.125 in | 3.18 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | 9 | 10 Áin | 0.25 Ám | Copper Alloy | Gold | Dual | 18 | 2 | Solder | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | ||
 EDAC Inc. | Cantilever | Through Hole Right Angle | Non Specified - Single Edge | 0.125 in | 3.18 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 1 | Diallyl Phthalate (DAP) | 18 | 10 Áin | 0.25 Ám | Copper Alloy | Gold | Single | 18 | 1 | Solder | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | ||
 EDAC Inc. | Cantilever | Through Hole | Non Specified - Dual Edge | 0.125 in | 3.18 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | 9 | 10 Áin | 0.25 Ám | Copper Alloy | Gold | Dual | 18 | 2 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | ||||
 EDAC Inc. | Cantilever | Through Hole | Non Specified - Single Edge | 0.125 in | 3.18 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 1 | Diallyl Phthalate (DAP) | 18 | 10 Áin | 0.25 Ám | Copper Alloy | Gold | Single | 18 | 1 | Solder | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | ||
 EDAC Inc. | Cantilever | Through Hole | Non Specified - Dual Edge | 0.125 in | 3.18 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | 9 | 10 Áin | 0.25 Ám | Copper Alloy | Gold | Dual | 18 | 2 | Solder | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in | ||
 EDAC Inc. | Cantilever | Through Hole | Non Specified - Dual Edge | 0.125 in | 3.18 mm | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Female | 2 | Diallyl Phthalate (DAP) | 9 | 10 Áin | 0.25 Ám | Copper Alloy | Gold | Dual | 18 | 2 | Solder | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " |
