842-092 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 92POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Color	Gender	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Type	Number of Positions/Bay/Row	Contact Finish	Termination	Pitch	Pitch	Contact Type	Contact Material	Number of Positions	Features
EDAC Inc. 842-092-544-204	Diallyl Phthalate (DAP)	2	2	Green	Female	Dual	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Non Specified - Dual Edge	46	Gold	Wire Wrap	0.1 "	2.54 mm	Cantilever	Copper Alloy	92

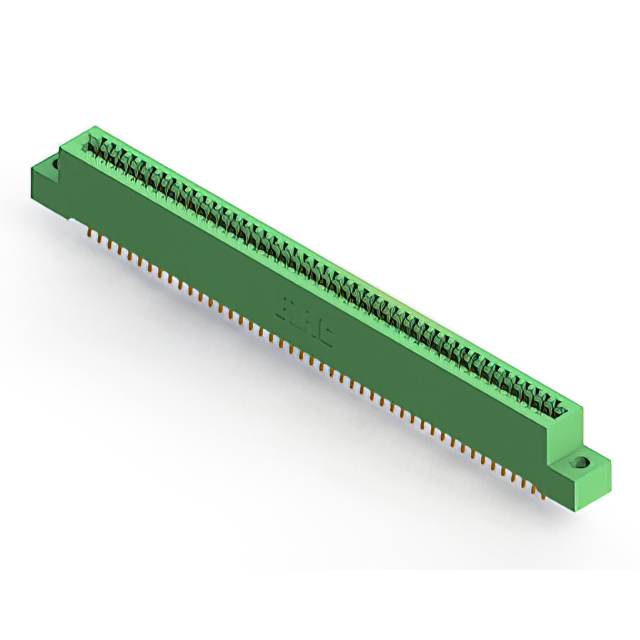

EDAC Inc. 842-092-556-204	Diallyl Phthalate (DAP)	2	2	Green	Female	Dual	125 °C	-40 C	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Non Specified - Dual Edge	46	Gold	Solder	0.1 "	2.54 mm	Cantilever	Copper Alloy	92	Card Extender
EDAC Inc. 842-092-560-212	Diallyl Phthalate (DAP)	2	2	Green	Female	Dual	125 °C	-40 C	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	46	Gold	Solder	0.1 "	2.54 mm	Cantilever	Copper Alloy	92	Card Extender
EDAC Inc. 842-092-540-208	Diallyl Phthalate (DAP)	2	2	Green	Female	Dual	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	46	Gold	Wire Wrap	0.1 "	2.54 mm	Cantilever	Copper Alloy	92

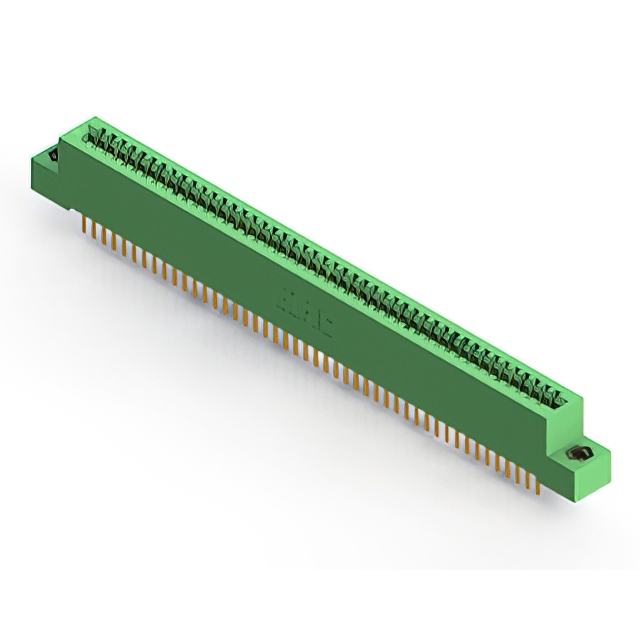

EDAC Inc. 842-092-520-208	Diallyl Phthalate (DAP)	2	2	Green	Female	Dual	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	46	Gold	Solder	0.1 "	2.54 mm	Cantilever	Copper Alloy	92
EDAC Inc. 842-092-559-212	Diallyl Phthalate (DAP)	2	2	Green	Female	Dual	125 °C	-40 C	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	46	Gold	Solder	0.1 "	2.54 mm	Cantilever	Copper Alloy	92

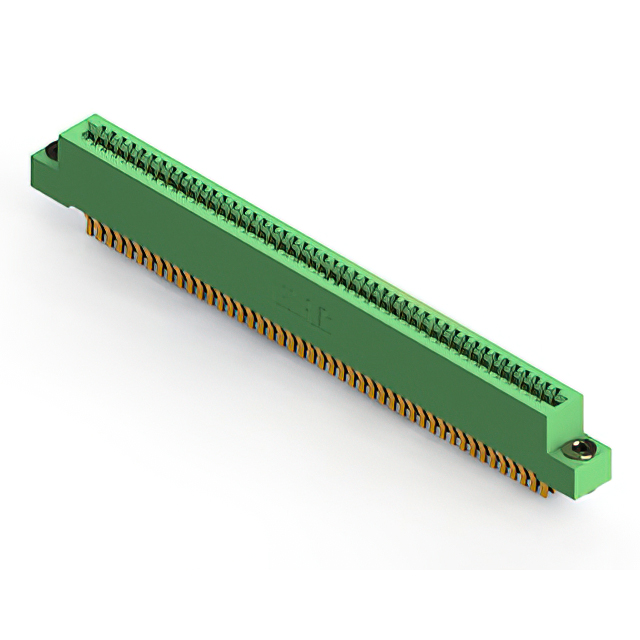

EDAC Inc. 842-092-560-203	Diallyl Phthalate (DAP)	2	2	Green	Female	Dual	125 °C	-40 C	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Non Specified - Dual Edge	46	Gold	Solder	0.1 "	2.54 mm	Cantilever	Copper Alloy	92	Card Extender
EDAC Inc. 842-092-500-204	Diallyl Phthalate (DAP)	2	2	Green	Female	Dual	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Non Specified - Dual Edge	46	Gold	Solder Eyelet(s)	0.1 "	2.54 mm	Cantilever	Copper Alloy	92
EDAC Inc. 842-092-541-207	Diallyl Phthalate (DAP)	2	2	Green	Female	Dual	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening			Non Specified - Dual Edge	46	Gold	Wire Wrap	0.1 "	2.54 mm	Cantilever	Copper Alloy	92

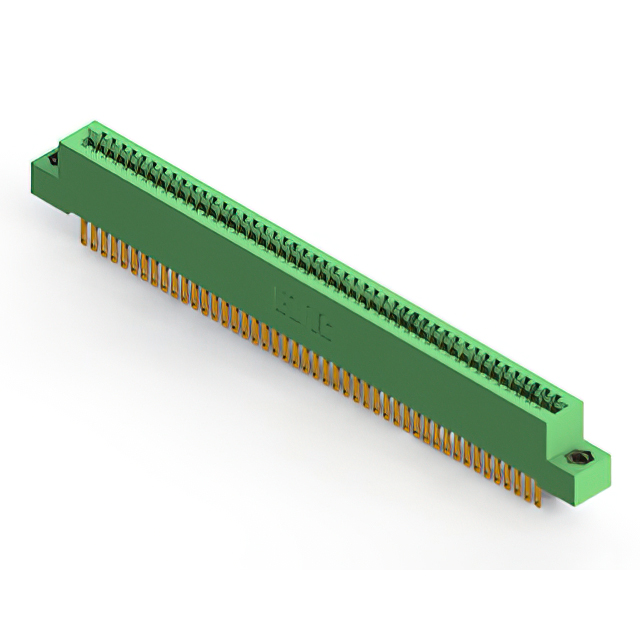

EDAC Inc. 842-092-500-208	Diallyl Phthalate (DAP)	2	2	Green	Female	Dual	125 °C	-40 C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	46	Gold	Solder Eyelet(s)	0.1 "	2.54 mm	Cantilever	Copper Alloy	92
