C350 Series

Catalog

SCR MODULE, 115 A, 600 V

Part	Current - Off State (Max) [Max] [custom]	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Current - On State (It (AV)) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Off State	Voltage - On State (Vtm) (Max) [Max]	Package / Case	Current - On State (It (RMS)) (Max) [Max]	SCR Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Supplier Device Package

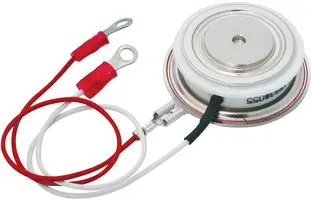

Powerex Inc. C350M	20 mA	150 mA	Clamp On	115 A	125 °C	-40 C	600 V	2.6 V	A-PUK TO-200AB	180 A	Standard Recovery	1480 A 1600 A	Press-Pak (Pow-R-Disc)
Powerex Inc. C350B	20 mA	150 mA	Clamp On	115 A	125 °C	-40 C	200 V	2.6 V	A-PUK TO-200AB	180 A	Standard Recovery	1480 A 1600 A	Press-Pak (Pow-R-Disc)
Powerex Inc. C350P	20 mA	150 mA	Clamp On	115 A	125 °C	-40 C	1 kV	2.6 V	A-PUK TO-200AB	180 A	Standard Recovery	1480 A 1600 A	Press-Pak (Pow-R-Disc)
