M2480 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

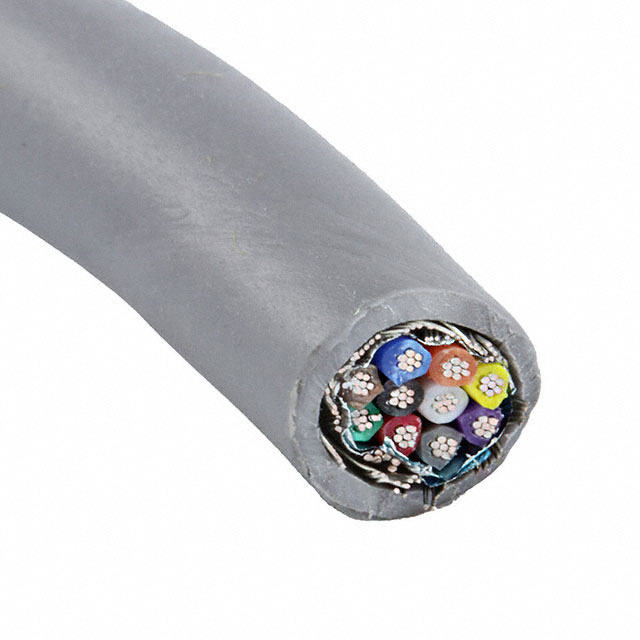

CABLE 10COND 22AWG SHLD
| Part | Shield Coverage | Shield Material | Voltage | Conductor Material | Cable Type | Shield Type | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket Color | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Ratings | Wire Gauge | Number of Conductors [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | Copper Tinned | Multi-Conductor | Braid Foil | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 28 AWG | 7 | Drain Wire Rip Cord | Slate | 304.8 m | 1000 ft | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 22 AWG | 10 |
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | Copper Tinned | Multi-Conductor | Braid Foil | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 28 AWG | 7 | Drain Wire Rip Cord | Slate | 152.4 m | 500 ft | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 22 AWG | 10 |
