829587 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

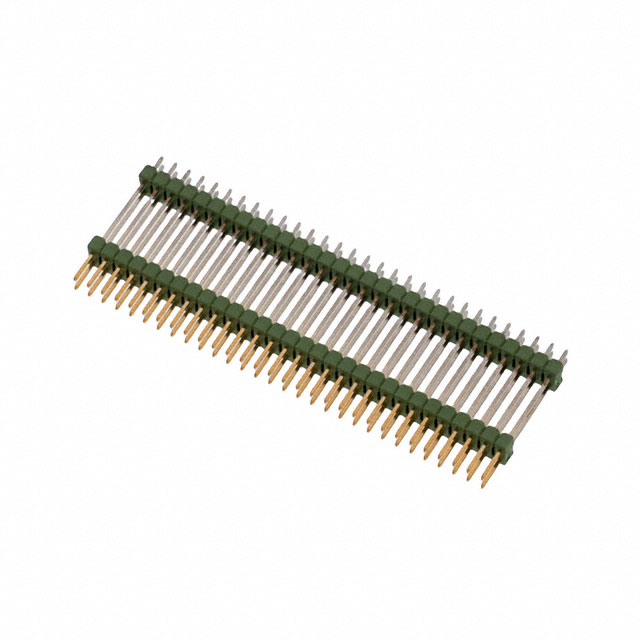

CONN HDR 52POS 0.1 STACK T/H
| Part | Row Spacing | Row Spacing | Contact Finish Thickness - Post (Mating) [custom] | Length - Post (Mating) [x] | Length - Post (Mating) [x] | Termination | Mounting Type | Length - Tail | Length - Tail | Color | Length - Overall Pin [x] | Length - Overall Pin [x] | Number of Positions | Number of Rows [custom] | Pitch | Pitch | Length - Stack Height [z] | Length - Stack Height | Contact Finish - Post (Mating) | Contact Finish Thickness - Post (Mating) [custom] | Contact Finish Thickness - Post (Mating) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.54 mm | 0.1 " | Flash | 0.232 in | 5.9 mm | Solder | Through Hole | 3.2 mm | 0.126 in | Green | 1.087 in | 27.6 mm | 52 | 2 | 0.1 " | 2.54 mm | 0.728 in | 18.5 mm | Gold | ||
TE Connectivity AMP Connectors | 2.54 mm | 0.1 " | Flash | 0.232 in | 5.9 mm | Solder | Through Hole | 3.2 mm | 0.126 in | Green | 1.087 in | 27.6 mm | 40 | 2 | 0.1 " | 2.54 mm | 0.728 in | 18.5 mm | Gold | 3.94 µin | 0.1 µm |
 TE Connectivity AMP Connectors | 2.54 mm | 0.1 " | Flash | 0.232 in | 5.9 mm | Solder | Through Hole | 3.2 mm | 0.126 in | Green | 1.087 in | 27.6 mm | 60 | 2 | 0.1 " | 2.54 mm | 0.728 in | 18.5 mm | Gold |
