2307725 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

8P,2MM,B-B,REC,SRHZ,SMD,0.1AU,TR

Part	Mounting Type	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Insulation Color	Contact Finish - Mating	Number of Positions Loaded	Voltage Rating	Connector Type	Contact Material	Current Rating (Amps)	Material Flammability Rating	Termination	Contact Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Material	Insulation Height [z]	Insulation Height [z]

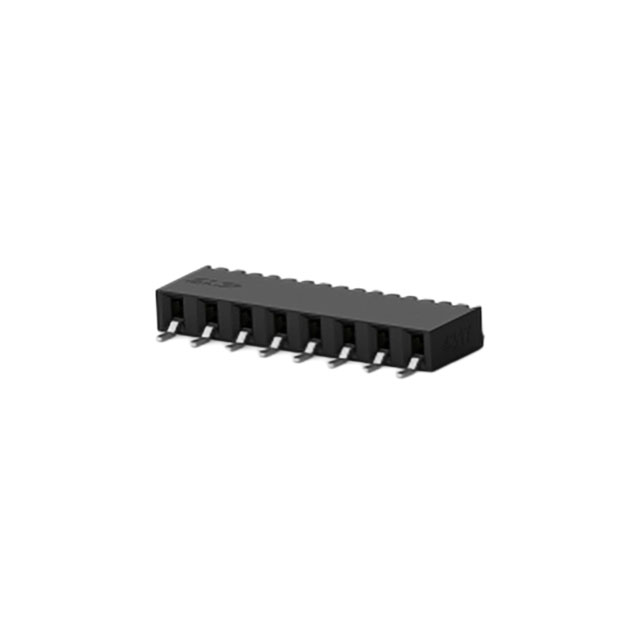

TE Connectivity Raychem Cable Protection 2307725-8	Surface Mount Right Angle	Tin	0.079 in	2 mm	8	2.1 mm	0.083 "	0.3 µm	12 µin	125 °C	-40 °C	1	Black	Gold	All	125 VDC	Receptacle	Phosphor Bronze	2 A	UL94 V-0	Solder	Female Socket	Square	3.94 µin	0.1 µm	Push-Pull	Liquid Crystal Polymer (LCP)

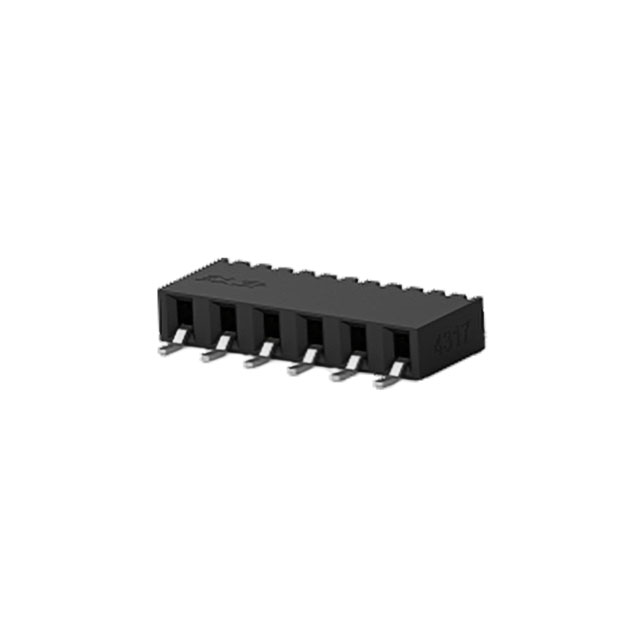

TE Connectivity Raychem Cable Protection 2307725-6	Surface Mount Right Angle	Tin	0.079 in	2 mm	6			3 µm	118.1 µin	125 °C	-40 °C	1	Black	Gold	All	125 VDC	Receptacle	Phosphor Bronze	2 A	UL94 V-0	Solder	Female Socket	Square	3.94 µin	0.1 µm	Push-Pull	Liquid Crystal Polymer (LCP)	0.08 in	2.03 mm
TE Connectivity Raychem Cable Protection 1-2307725-0	Surface Mount Right Angle	Tin	0.079 in	2 mm	10			3 µm	118.1 µin	125 °C	-40 °C	1	Black	Gold	All	125 VDC	Receptacle	Phosphor Bronze	2 A	UL94 V-0	Solder	Female Socket	Square	3.94 µin	0.1 µm	Push-Pull	Liquid Crystal Polymer (LCP)	0.08 in	2.03 mm

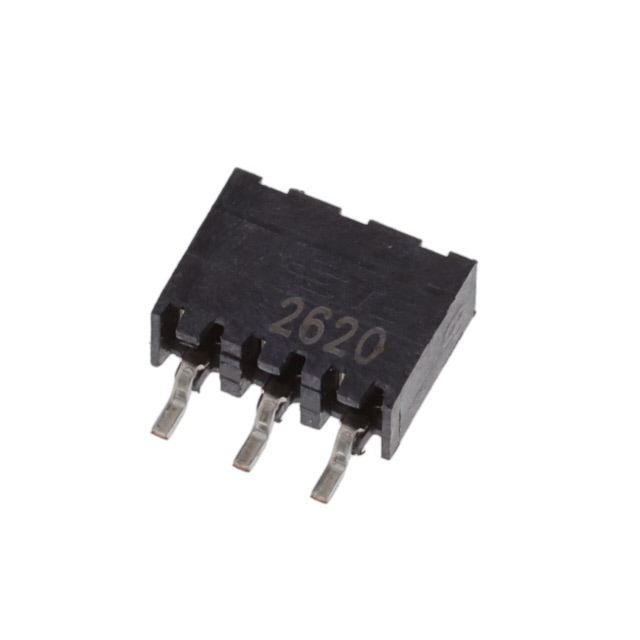

TE Connectivity Raychem Cable Protection 2307725-3	Surface Mount Right Angle	Tin	0.079 in	2 mm		2.1 mm	0.083 "	0.3 µm	12 µin	125 °C	-40 °C	1	Black	Gold	All	125 VDC	Receptacle	Phosphor Bronze	2 A	UL94 V-0	Solder	Female Socket	Square	3.94 µin	0.1 µm	Push-Pull	Liquid Crystal Polymer (LCP)
TE Connectivity Raychem Cable Protection 2307725-2	Surface Mount Right Angle	Tin	0.079 in	2 mm	2	2.1 mm	0.083 "	0.3 µm	12 µin	125 °C	-40 °C	1	Black	Gold	All	125 VDC	Receptacle	Phosphor Bronze	2 A	UL94 V-0	Solder	Female Socket	Square	3.94 µin	0.1 µm	Push-Pull	Liquid Crystal Polymer (LCP)
