09400160 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY POWER CONNECTORS 16B HPR BULKHEAD HOUSING, CENTRAL LEVER

Part	Thread Size	Connector Type	Size	Lock Location	Style	Housing Finish	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size	Features
HARTING 09400160381
HARTING 09400160413	PG29	Hood	16 B	Screw Locks on Hood	Top Entry	Powder Coated	4.35 "	2.283 in	110.5 mm	58 mm	165 mm	6.496 "	Aluminum Die Cast	125 °C	-40 C	Black
HARTING 09400160311		Base - Panel Mount	16 B	Screw Locks on Hood	Bottom Entry	Epoxy Powder Paint	1.138 "	2.283 in	28.9 mm	58 mm	165 mm	6.496 "	Aluminum Die Cast	125 °C	-40 C	Black
HARTING 09400160402	PG21	Hood	16 B	Screw Locks on Hood	Top Entry	Powder Coated	4.35 "	2.283 in	110.5 mm	58 mm	165 mm	6.496 "	Aluminum Die Cast	125 °C	-40 C	Black
HARTING 09400160451		Hood		Screw Locks on Hood	Top Entry	Powder Coated			140 mm	58 mm	165 mm		Aluminum Die Cast	125 °C	-40 C	Black	2.283 "	5.512 "	6.496 "	16HPR	Corrosion Resistant

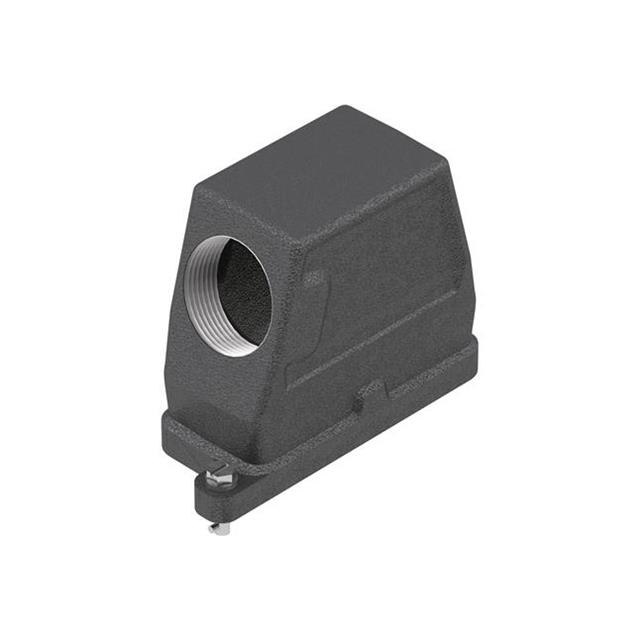

HARTING 09400160504	PG36	Hood	16 B	Screw Locks on Hood	Side Entry	Powder Coated	4.35 "	2.283 in	110.5 mm	58 mm	165 mm	6.496 "	Aluminum Die Cast	125 °C	-40 C	Black
HARTING 09400160513	PG29	Hood	16 B	Screw Locks on Hood	Side Entry	Powder Coated	4.35 "	2.283 in	110.5 mm	58 mm	165 mm	6.496 "	Aluminum Die Cast	125 °C	-40 C	Black
HARTING 09400160414	PG36	Hood	16 B	Screw Locks on Hood	Top Entry	Powder Coated	4.35 "	2.283 in	110.5 mm	58 mm	165 mm	6.496 "	Aluminum Die Cast	125 °C	-40 C	Black
HARTING 09400160403	PG29	Hood	16 B	Screw Locks on Hood	Top Entry	Powder Coated	4.35 "	2.283 in	110.5 mm	58 mm	165 mm	6.496 "	Aluminum Die Cast	125 °C	-40 C	Black
