PYBJ10 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 12V 10W

Part	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Voltage - Output 1	Approval Agency	Standard Number	Efficiency	Features	Voltage - Isolation	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Applications	Type	Power (Watts)	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [z]

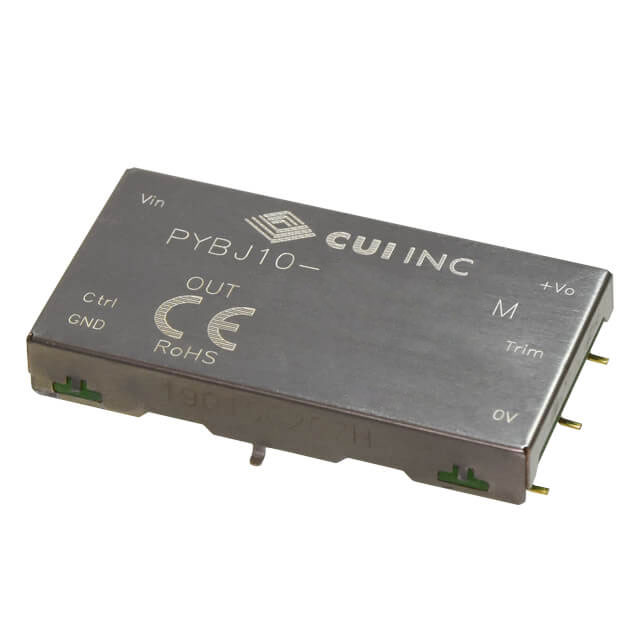

CUI Inc. PYBJ10-Q24-S12-M	833 mA	-40 °C	85 °C	36 V	12 V	CB Scheme IEC UL	62368-1	87 %	OCP OVP Remote On/Off SCP	1.5 kV	1	0.87 in	1.59 in	22 mm	0.28 "	7 mm	40.2 mm	Surface Mount	ITE (Commercial)	Isolated Module	10 W	6-SMD Module	9 V

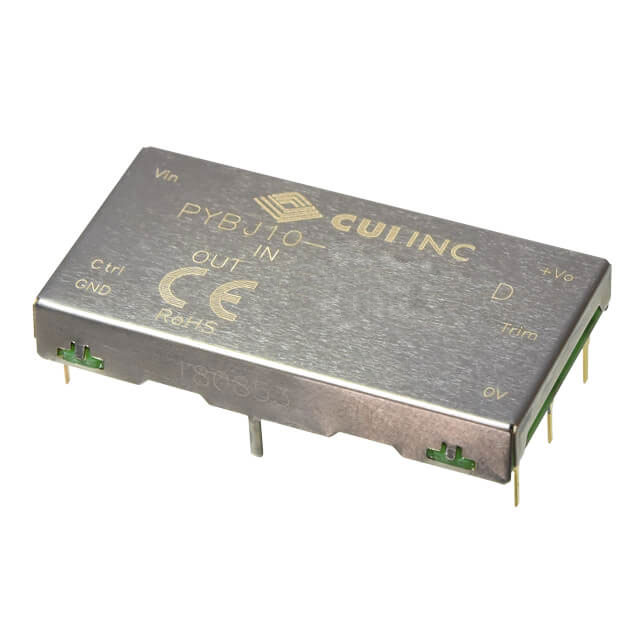

CUI Inc. PYBJ10-Q24-S5-D	2 A	-40 °C	85 °C	36 V	5 V	CB Scheme IEC UL	62368-1	84 %	OCP OVP Remote On/Off SCP	1.5 kV	1	0.87 in	1.59 in		0.27 "		40.2 mm	Through Hole	ITE (Commercial)	Isolated Module	10 W	6-DIP Module	9 V	22 mm	6.8 mm

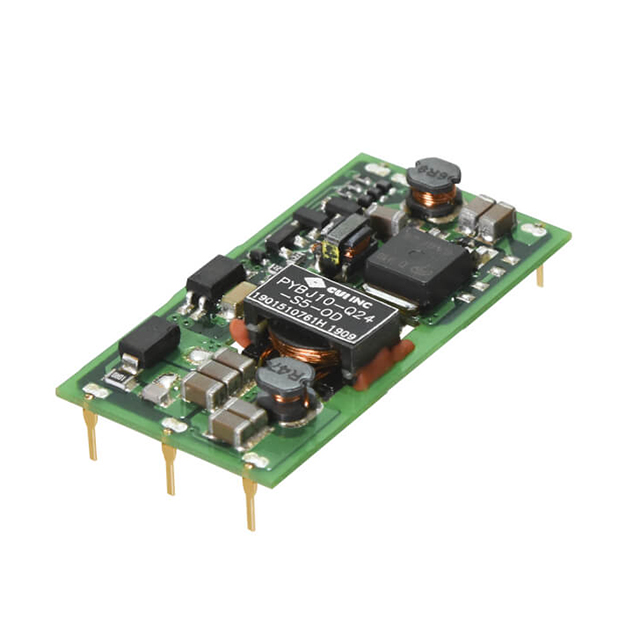

CUI Inc. PYBJ10-Q24-S5-OD	2 A	-40 °C	85 °C	36 V	5 V	CB Scheme IEC UL	62368-1	84 %	OCP OVP Remote On/Off SCP	1.5 kV	1	0.82 in	1.54 in	20.8 mm	0.24 in	6.1 mm	39.2 mm	Through Hole	ITE (Commercial)	Isolated Module	10 W	6-DIP Module	9 V
CUI Inc. PYBJ10-Q24-S12-OD	833 mA	-40 °C	85 °C	36 V	12 V	CB Scheme IEC UL	62368-1	87 %	OCP OVP Remote On/Off SCP	1.5 kV	1	0.82 in	1.54 in	20.8 mm	0.24 in	6.1 mm	39.2 mm	Through Hole	ITE (Commercial)	Isolated Module	10 W	6-DIP Module	9 V
CUI Inc. PYBJ10-Q24-S12-D	833 mA	-40 °C	85 °C	36 V	12 V	CB Scheme IEC UL	62368-1	87 %	OCP OVP Remote On/Off SCP	1.5 kV	1	0.87 in	1.59 in		0.27 "		40.2 mm	Through Hole	ITE (Commercial)	Isolated Module	10 W	6-DIP Module	9 V	22 mm	6.8 mm
CUI Inc. PYBJ10-Q24-S15-M	667 mA	-40 °C	85 °C	36 V	15 V	CB Scheme IEC UL	62368-1	88 %	OCP OVP Remote On/Off SCP	1.5 kV	1	0.87 in	1.59 in	22 mm	0.28 "	7 mm	40.2 mm	Surface Mount	ITE (Commercial)	Isolated Module	10 W	6-SMD Module	9 V
