431201 Series

Catalog

CONN BARRIER STRP 22CIRC 0.438"

Part	Operating Temperature	Material - Insulation	Mounting Type	Material Flammability Rating	Pitch [x]	Pitch [x]	Number of Circuits	Top Termination	Terminal Block Type	Wire Gauge [Max]	Wire Gauge [Min]	Number of Rows	Voltage Rating	Barrier Type	Number of Wire Entries	Bottom Termination	Current Rating (Amps)	Number of Wire Entries [custom]	Number of Circuits [custom]
Curtis Industries 431201-22-0	105 C	Polypropylene (PP)	Through Hole	UL94 V-0	0.438 in	11.12 mm	22	Screws	Barrier Block	22 AWG	12 AWG	1	600 V	2 Wall (Dual)	22	Solder Turret	20 A
Curtis Industries 431201-07-0	105 C	Polypropylene (PP)	Through Hole	UL94 V-0	0.438 in	11.12 mm	7	Screws	Barrier Block	22 AWG	12 AWG	1	600 V	2 Wall (Dual)		Solder Turret	20 A	7
Curtis Industries 431201-23-0	105 C	Polypropylene (PP)	Through Hole	UL94 V-0	0.438 in	11.12 mm		Screws	Barrier Block	22 AWG	12 AWG	1	600 V	2 Wall (Dual)	23	Solder Turret	20 A		23
Curtis Industries 431201-12-0	105 C	Polypropylene (PP)	Through Hole	UL94 V-0	0.438 in	11.12 mm	12	Screws	Barrier Block	22 AWG	12 AWG	1	600 V	2 Wall (Dual)	12	Solder Turret	20 A
Curtis Industries 431201-27-0	105 C	Polypropylene (PP)	Through Hole	UL94 V-0	0.438 in	11.12 mm	27	Screws	Barrier Block	22 AWG	12 AWG	1	600 V	2 Wall (Dual)	27	Solder Turret	20 A
Curtis Industries 431201-03-0	105 C	Polypropylene (PP)	Through Hole	UL94 V-0	0.438 in	11.12 mm	3	Screws	Barrier Block	22 AWG	12 AWG	1	600 V	2 Wall (Dual)	3	Solder Turret	20 A
Curtis Industries 431201-21-0	105 C	Polypropylene (PP)	Through Hole	UL94 V-0	0.438 in	11.12 mm	21	Screws	Barrier Block	22 AWG	12 AWG	1	600 V	2 Wall (Dual)	21	Solder Turret	20 A
Curtis Industries 431201-01-0	105 C	Polypropylene (PP)	Through Hole	UL94 V-0			1	Screws	Barrier Block	22 AWG	12 AWG	1	600 V	2 Wall (Dual)	1	Solder Turret	20 A

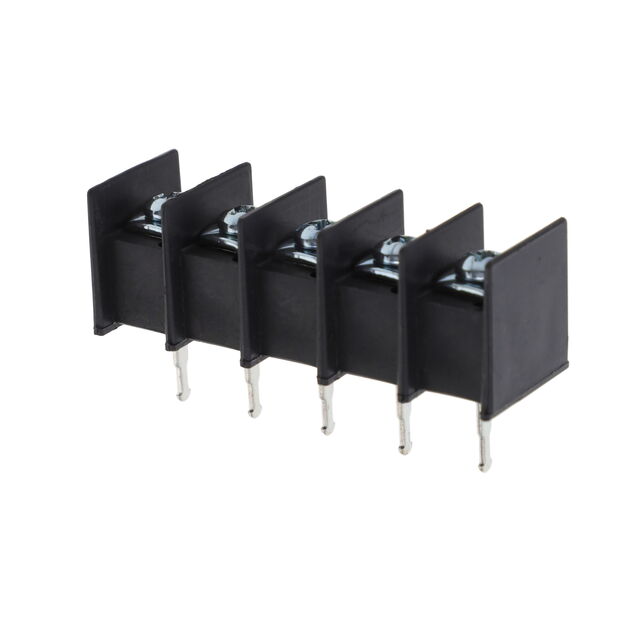

Curtis Industries 431201-05-0	105 C	Polypropylene (PP)	Through Hole	UL94 V-0	0.438 in	11.12 mm	5	Screws	Barrier Block	22 AWG	12 AWG	1	600 V	2 Wall (Dual)	5	Solder Turret	20 A
Curtis Industries 431201-06-0	105 C	Polypropylene (PP)	Through Hole	UL94 V-0	0.438 in	11.12 mm	6	Screws	Barrier Block	22 AWG	12 AWG	1	600 V	2 Wall (Dual)	6	Solder Turret	20 A
