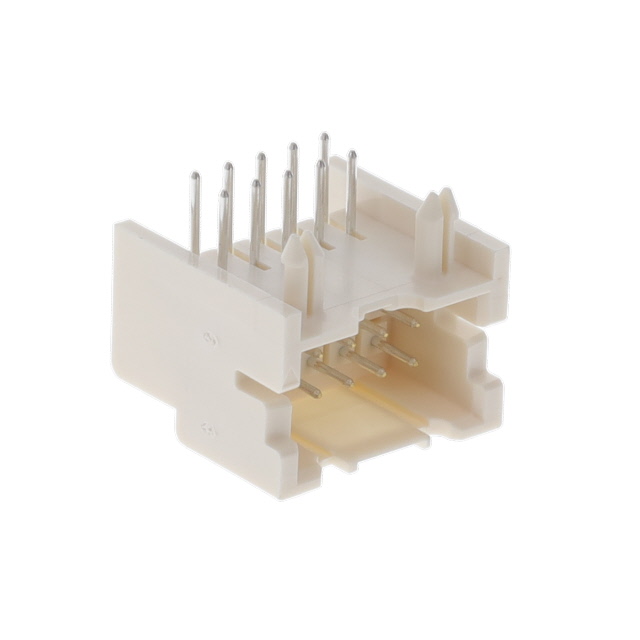

S10B-XAD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 10POS 2.5MM
| Part | Insulation Height | Insulation Height | Contact Type | Contact Finish - Post | Style | Fastening Type | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post [x] | Contact Length - Post | Material Flammability Rating | Number of Positions Loaded | Contact Material | Number of Positions | Insulation Material | Insulation Color | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Termination | Shrouding | Current Rating (Amps) | Contact Shape | Connector Type | Number of Rows [custom] | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 12.1 mm | 0.476 " | Male Pin | Tin | Board to Cable/Wire | Locking Ramp | 250 V | 85 °C | -25 °C | 0.134 " | 3.4 mm | UL94 V-0 | All | Copper Alloy | 10 | Glass Filled Nylon 6/6 Polyamide (PA66) | Natural | 2.5 mm | 0.098 in | Right Angle Through Hole | Solder | Shrouded - 4 Wall | 3 A | Circular | Header | 2 | 2.5 mm | 0.098 in |
