R11322 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

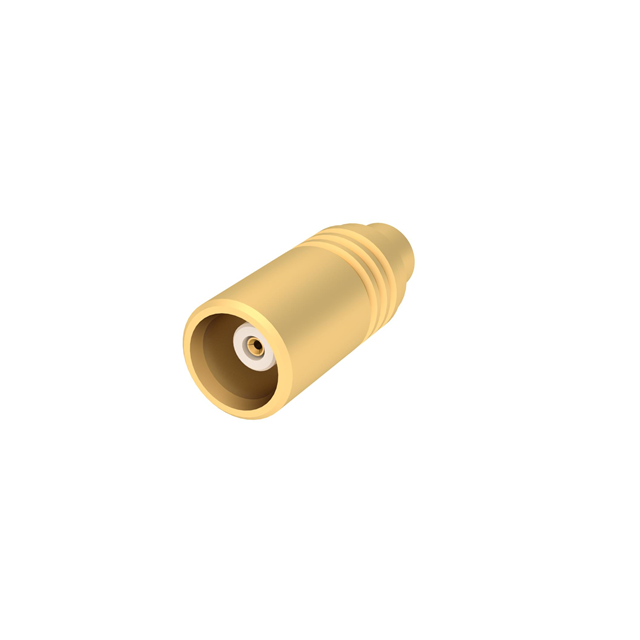

MCX / STRAIGHT JACK SOLDER TYPE
| Part | Center Contact Plating | Dielectric Material | Body Finish | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Fastening Type | Number of Ports | Frequency - Max [Max] | Mounting Type | Shield Termination | Housing Color | Impedance | Connector Style | Center Contact Material | Contact Termination | Cable Group | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Gold | 250 V | -55 C | 115 °C | 500 | Brass | Snap-On | 1 | 6000 MHz | Free Hanging (In-Line) | Solder | Gold | 50 Ohms | MCX | Beryllium Copper | Solder | RG-405 (.085" Semi Rigid) | Female Socket Jack |
