1241.1104 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH: PUSH-BUTTON; POS: 2; SPST-NO; 0.125A/48VDC; OFF-(ON)
| Part | Electrical Life | Mechanical Life | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Voltage Rating - DC | Mounting Type | Features | Type | Actuator Marking | Ingress Protection | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Actuator Type | Switch Function | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

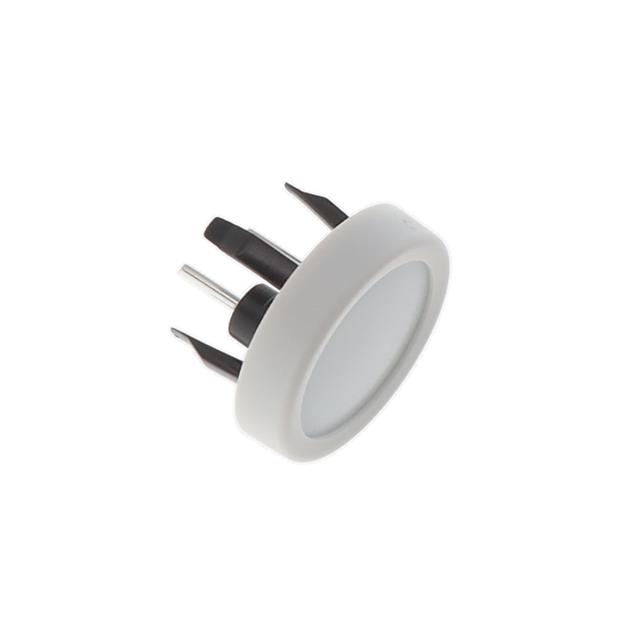

 SCHURTER Inc. | 1000000 Cycles | 1000000 Cycles | SPST-NO | -25 °C | 60 °C | Solder Lug | 48 V | Panel Mount Snap-In | Tactile Feedback | Standard | No Marking | IP65 - Dust Tight Water Resistant | 13 mm | 125 mA | Button Flush Round | Off-Mom | White |

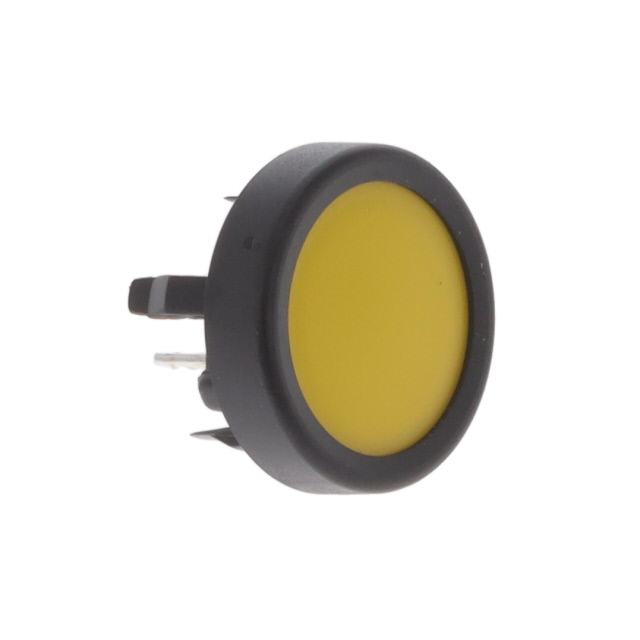

 SCHURTER Inc. | 1000000 Cycles | 1000000 Cycles | SPST-NO | -25 °C | 60 °C | Solder Lug | 48 V | Panel Mount Snap-In | Tactile Feedback | Standard | No Marking | IP65 - Dust Tight Water Resistant | 13 mm | 125 mA | Button Flush Round | Off-Mom | Yellow |
 SCHURTER Inc. | 1000000 Cycles | 1000000 Cycles | SPST-NO | -25 °C | 60 °C | Solder Lug | 48 V | Panel Mount Snap-In | Tactile Feedback | Standard | No Marking | IP65 - Dust Tight Water Resistant | 13 mm | 125 mA | Button Flush Round | Off-Mom | |

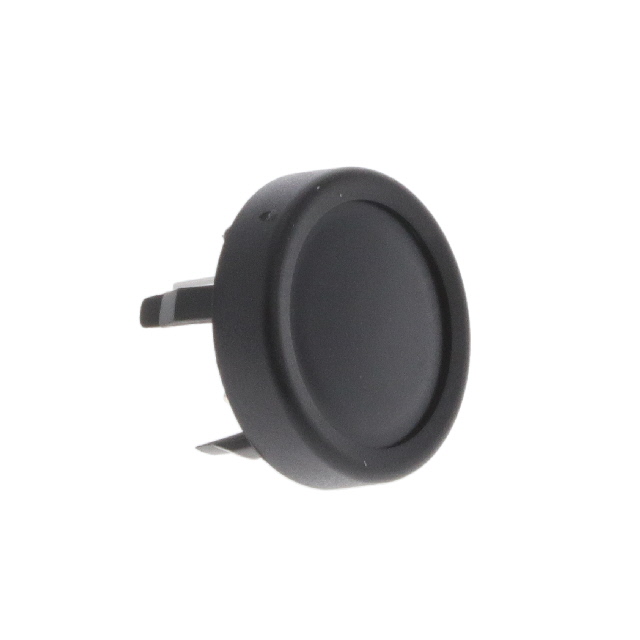

 SCHURTER Inc. | 1000000 Cycles | 1000000 Cycles | SPST-NO | -25 °C | 60 °C | Solder Lug | 48 V | Panel Mount Snap-In | Tactile Feedback | Standard | No Marking | IP65 - Dust Tight Water Resistant | 13 mm | 125 mA | Button Flush Round | Off-Mom | Black |

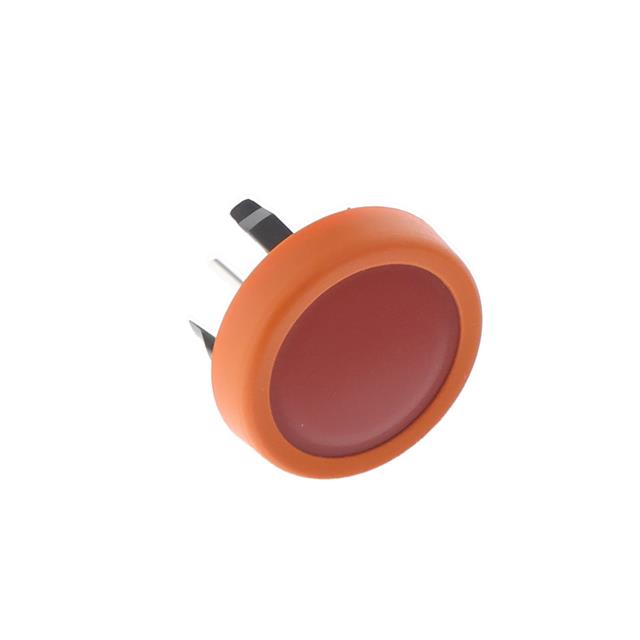

 SCHURTER Inc. | 1000000 Cycles | 1000000 Cycles | SPST-NO | -25 °C | 60 °C | Solder Lug | 48 V | Panel Mount Snap-In | Tactile Feedback | Standard | No Marking | IP65 - Dust Tight Water Resistant | 13 mm | 125 mA | Button Flush Round | Off-Mom | Red |
