845-053 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 53POS 0.100

...

Part	Material - Insulation	Termination Rows	Contact Finish	Pitch	Pitch	Number of Rows	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Contact Type	Card Type	Read Out	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

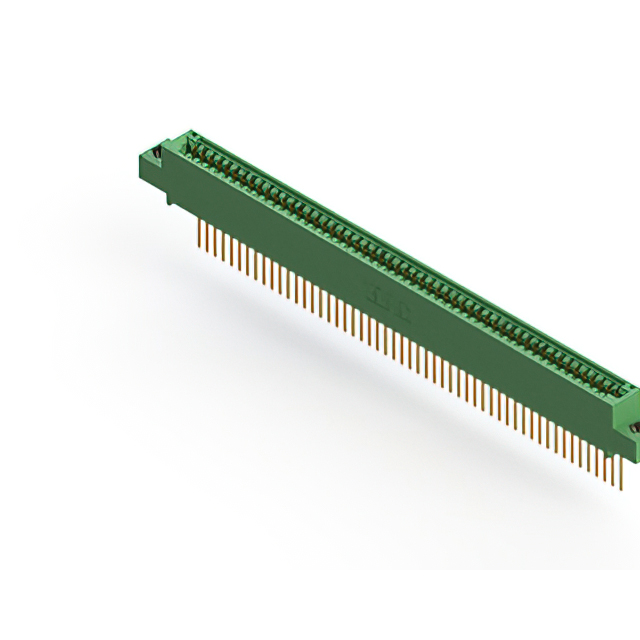

EDAC Inc. 845-053-540-408	Diallyl Phthalate (DAP)	1	Gold	0.1 "	2.54 mm	1	Through Hole	125 °C	-40 C	Female	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Non Specified - Single Edge	Single	Green	0.25 Ám	10 Áin	53	53	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 845-053-520-602	Diallyl Phthalate (DAP)	1	Gold	0.1 "	2.54 mm	1	Through Hole	125 °C	-40 C	Female	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Non Specified - Single Edge	Single	Green	0.25 Ám	10 Áin	53	53		3.25 mm	0.128 "

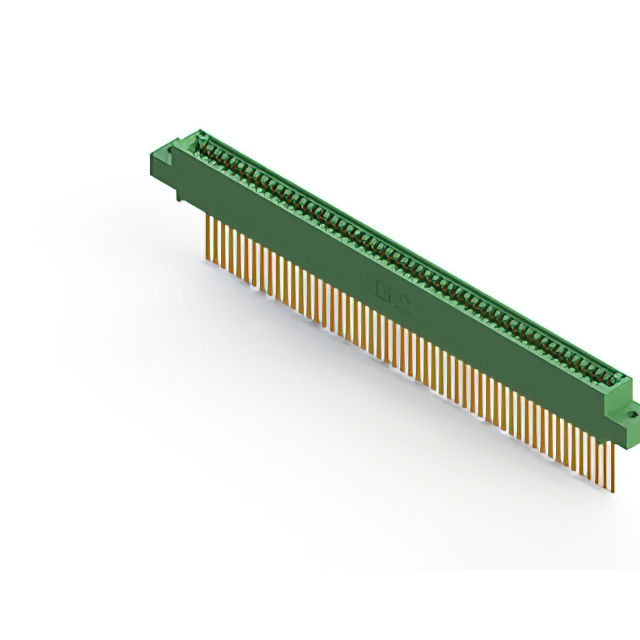

EDAC Inc. 845-053-544-402	Diallyl Phthalate (DAP)	1	Gold	0.1 "	2.54 mm	1	Through Hole	125 °C	-40 C	Female	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Non Specified - Single Edge	Single	Green	0.25 Ám	10 Áin	53	53		3.25 mm	0.128 "
EDAC Inc. 845-053-558-404	Diallyl Phthalate (DAP)	1	Gold	0.1 "	2.54 mm	1	Right Angle Through Hole	125 °C	-40 C	Female	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Non Specified - Single Edge	Single	Green	0.25 Ám	10 Áin	53	53		3.96 mm	0.156 "

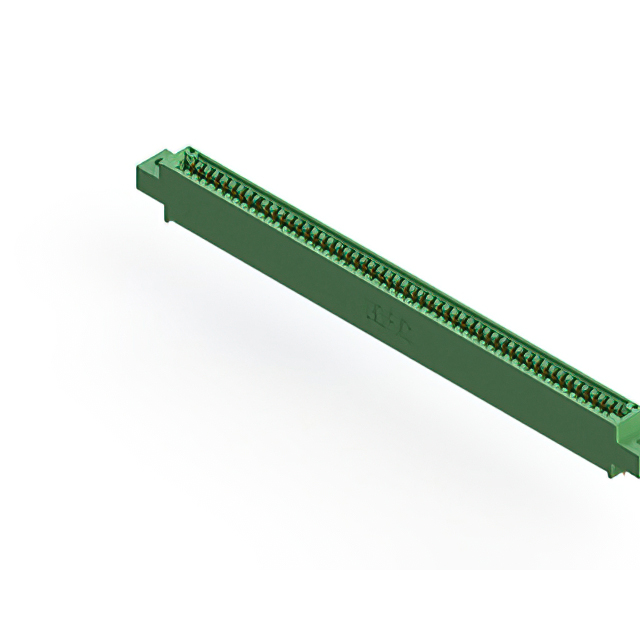

EDAC Inc. 845-053-524-602	Diallyl Phthalate (DAP)	1	Gold	0.1 "	2.54 mm	1	Through Hole	125 °C	-40 C	Female	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Non Specified - Single Edge	Single	Green	0.25 Ám	10 Áin	53	53		3.25 mm	0.128 "
EDAC Inc. 845-053-558-604	Diallyl Phthalate (DAP)	1	Gold	0.1 "	2.54 mm	1	Right Angle Through Hole	125 °C	-40 C	Female	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Non Specified - Single Edge	Single	Green	0.25 Ám	10 Áin	53	53		3.96 mm	0.156 "
EDAC Inc. 845-053-558-612	Diallyl Phthalate (DAP)	1	Gold	0.1 "	2.54 mm	1	Right Angle Through Hole	125 °C	-40 C	Female	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Non Specified - Single Edge	Single	Green	0.25 Ám	10 Áin	53	53	Side Mount Opening Unthreaded	3.25 mm	0.128 "

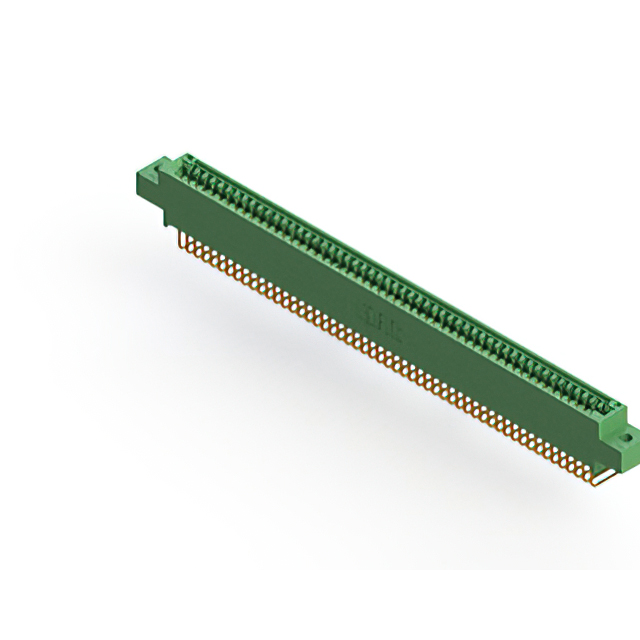

EDAC Inc. 845-053-558-602	Diallyl Phthalate (DAP)	1	Gold	0.1 "	2.54 mm	1	Right Angle Through Hole	125 °C	-40 C	Female	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Non Specified - Single Edge	Single	Green	0.25 Ám	10 Áin	53	53		3.25 mm	0.128 "

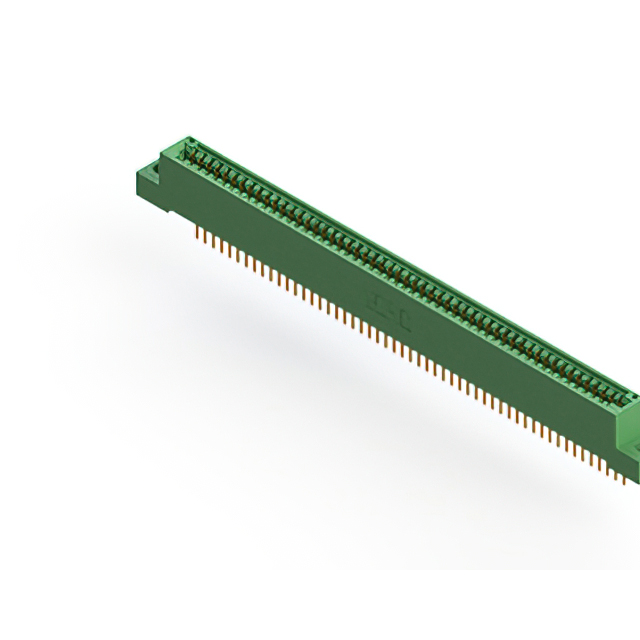

EDAC Inc. 845-053-523-104	Diallyl Phthalate (DAP)	1	Gold	0.1 "	2.54 mm	1	Through Hole	125 °C	-40 C	Female	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Non Specified - Single Edge	Single	Green	0.25 Ám	10 Áin	53	53	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "
EDAC Inc. 845-053-521-602	Diallyl Phthalate (DAP)	1	Gold	0.1 "	2.54 mm	1	Through Hole	125 °C	-40 C	Female	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Cantilever	Non Specified - Single Edge	Single	Green	0.25 Ám	10 Áin	53	53		3.25 mm	0.128 "
