6ES71346 Series

Manufacturer: Siemens

Catalog

INPUT MODULE 4 ANALOG 24V

Part	Ingress Protection	Mounting Type	Number of Inputs and Type	Number of Inputs and Type	Voltage - Supply	Termination Style	Type	For Use With/Related Products	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]

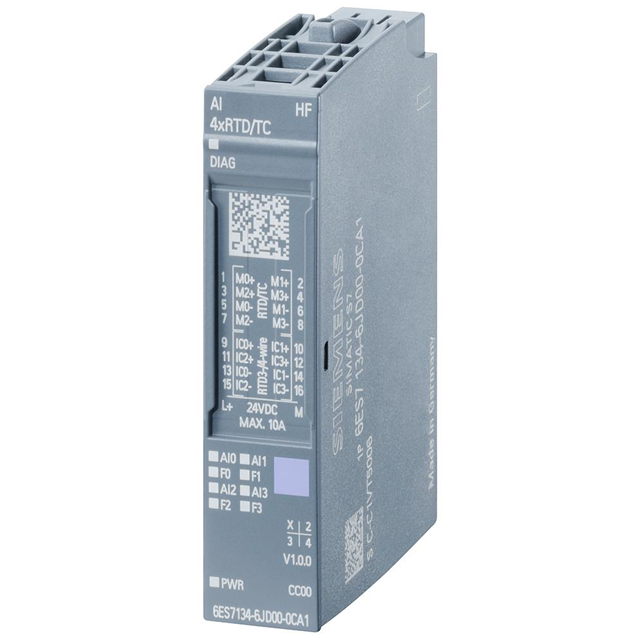

Siemens 6ES71346JD000CA1	IP20	DIN Rail	Analog	4	24 V	Screw Terminal	Input Module	SIMATIC ET 200SP

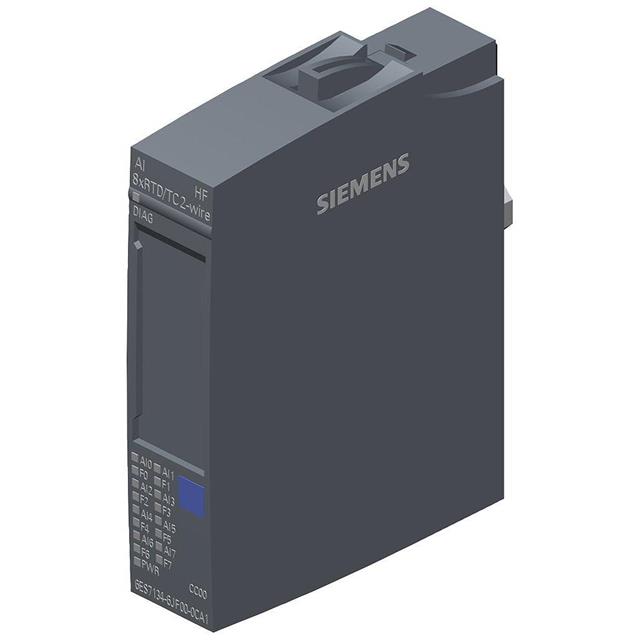

Siemens 6ES71346JF002CA1	IP20	DIN Rail	Analog	8		Screw Terminal	Input Module	SIMATIC ET 200SP	-30 ░C	60 °C	28.8 VDC	19.2 VDC

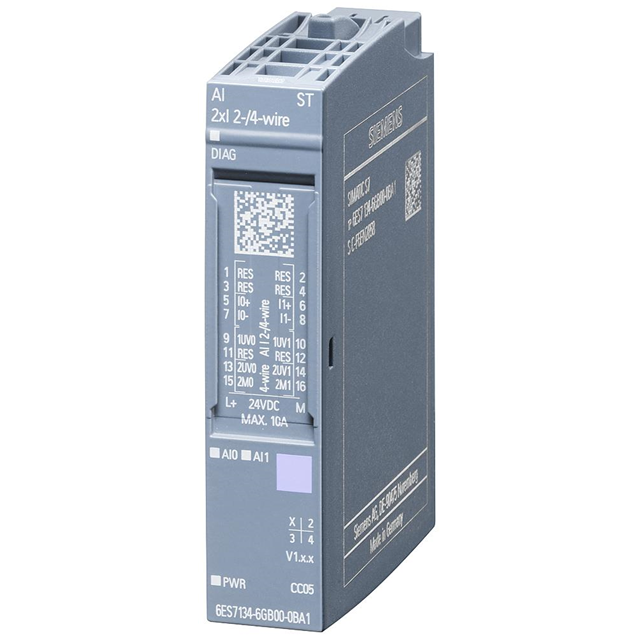

Siemens 6ES71346GB000BA1	IP20	DIN Rail				Screw Terminal	Input Module	SIMATIC ET 200SP	-30 ░C	60 °C	28.8 VDC	19.2 VDC	2	Analog

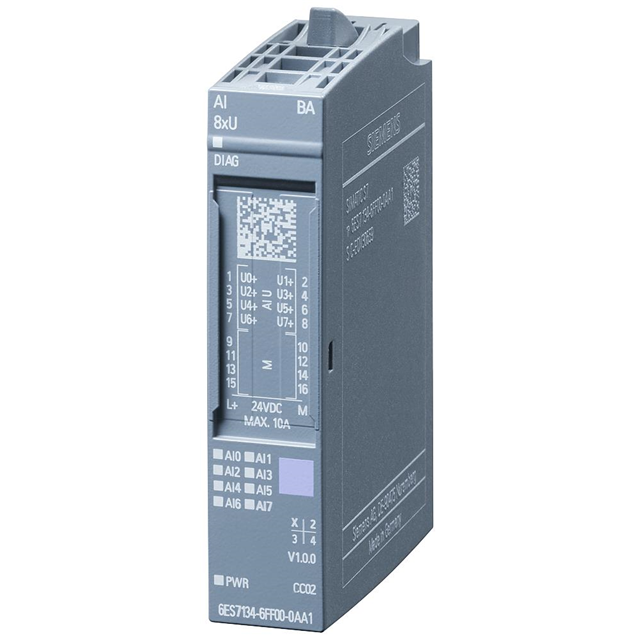

Siemens 6ES71346FF000AA1		Backplane Requires Basic Unit	Analog	8		Requires Basic Unit	Input Module	SIMATIC ET 200SP	-30 ░C	60 °C	28.8 VDC	19.2 VDC
Siemens 6ES71346PA010CU0	IP20	DIN Rail			24 V		Input Module	SIMATIC ET 200SP	-30 ░C	60 °C

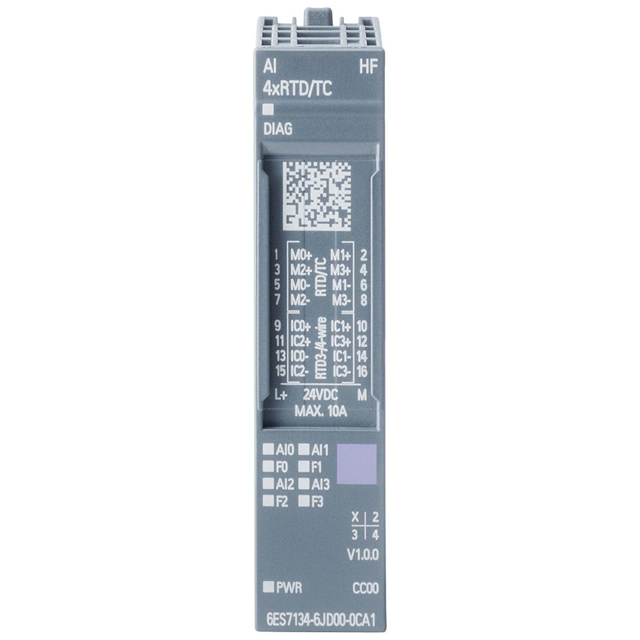

Siemens 6ES71346JD002CA1	IP20	DIN Rail	Analog	4		Screw Terminal	Input Module	SIMATIC ET 200SP	-30 ░C	60 °C	28.8 VDC	19.2 VDC

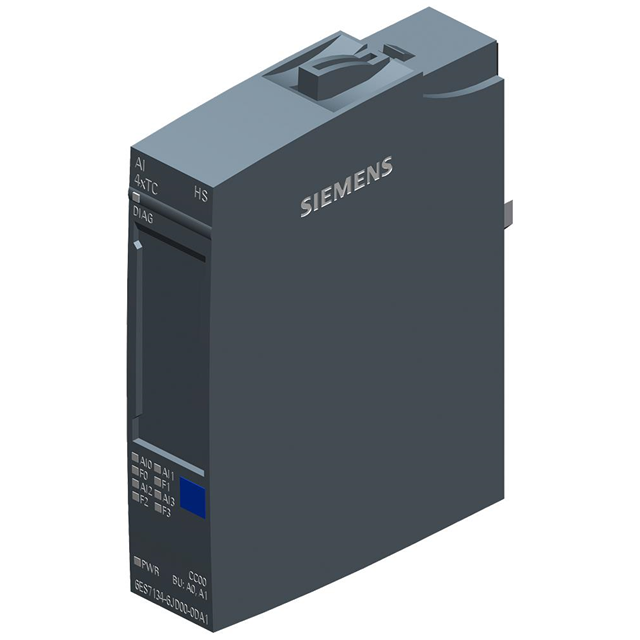

Siemens 6ES71346JD000DA1	IP20	DIN Rail	Analog	4		Screw Terminal	Input Module	SIMATIC ET 200SP	-30 ░C	60 °C	28.8 VDC	19.2 VDC
Siemens 6ES71346GD010BA1		Backplane Requires Basic Unit	Analog	4		Requires Basic Unit	Input Module	SIMATIC ET 200SP	-30 ░C	60 °C	28.8 VDC	19.2 VDC
Siemens 6ES71346PA010BU0	IP20	DIN Rail			24 V		Input Module	SIMATIC ET 200SP	-30 ░C	60 °C
Siemens 6ES71346PA210CU0		DIN Rail					Input Module	SIMATIC ET 200SP	-30 ░C	60 °C	28.8 VDC	19.2 VDC
