TPSMB15 Series

Catalog

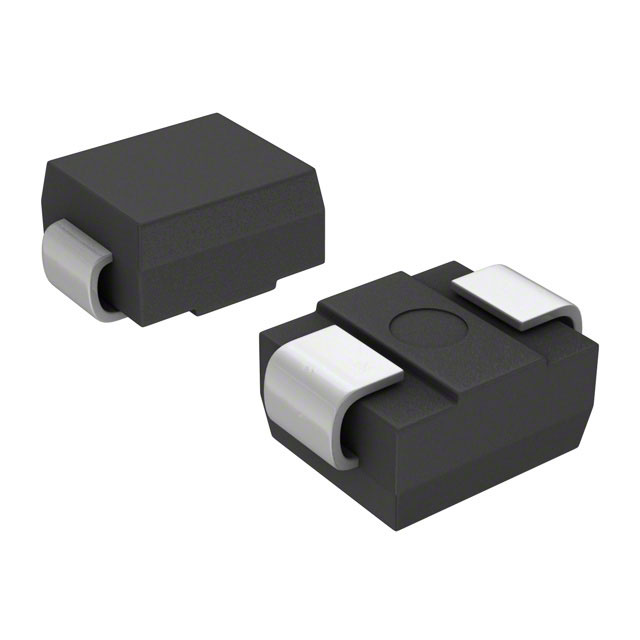

TVS DIODE 12.8VWM 21.2VC DO214AA

Part	Mounting Type	Grade	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp	Supplier Device Package	Supplier Device Package	Unidirectional Channels [custom]	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Type	Voltage - Reverse Standoff (Typ)	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Voltage - Clamping (Max) @ Ipp [Max]
Vishay General Semiconductor - Diodes Division TPSMB15AHM3_A/H	Surface Mount	Automotive	28.3 A	21.2 V	SMB	DO-214AA	1	600 W	14.3 V	Zener	12.8 V	DO-214AA SMB	Telecom	185 °C	-65 °C	AEC-Q101
Vishay General Semiconductor - Diodes Division TPSMB15HE3/52T	Surface Mount	Automotive	27.3 A			DO-214AA (SMBJ)	1	600 W	13.5 V	Zener	12.1 V	DO-214AA SMB		185 °C	-65 °C	AEC-Q101	22 V
Vishay General Semiconductor - Diodes Division TPSMB15AHM3_A/I	Surface Mount	Automotive	28.3 A	21.2 V	SMB	DO-214AA	1	600 W	14.3 V	Zener	12.8 V	DO-214AA SMB	Telecom	185 °C	-65 °C	AEC-Q101
Vishay General Semiconductor - Diodes Division TPSMB15AHE3/5BT	Surface Mount	Automotive	28.3 A	21.2 V		DO-214AA (SMBJ)	1	600 W	14.3 V	Zener	12.8 V	DO-214AA SMB		185 °C	-65 °C	AEC-Q101
