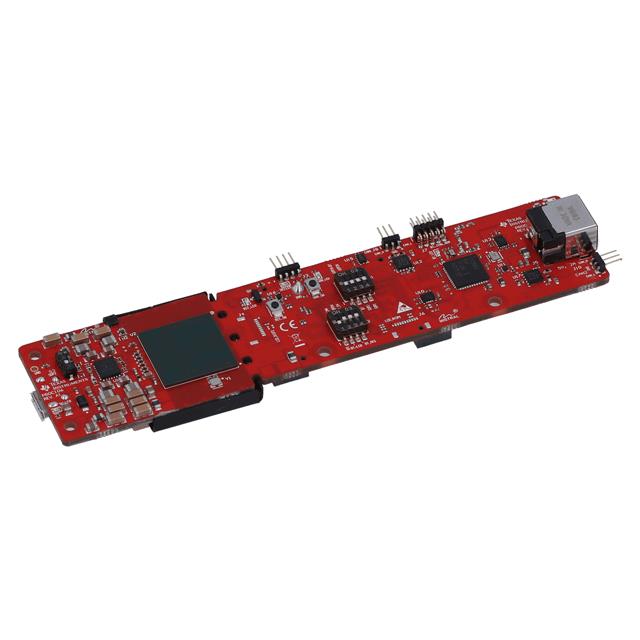

AWR1843AOP Series
Single-chip 76-GHz to 81-GHz automotive radar sensor integrating antenna on package, DSP and MCU
Manufacturer: Texas Instruments
Catalog
Single-chip 76-GHz to 81-GHz automotive radar sensor integrating antenna on package, DSP and MCU
Key Features
• FMCW transceiverIntegrated 4 receivers and 3 transmitters Antennas-On-Package (AOP)Integrated PLL, transmitter, receiver, Baseband, and ADC76- to 81-GHz coverage with 4 GHz available bandwidthUltra-accurate chirp engine based on fractional-N PLLTX Effective isotropic radiated power (EIRP): 16 dBmRX Effective isotropic noise figure: 10 dB (76 to 81 GHz)Phase noise at 1 MHz:–95 dBc/Hz (76 to 77 GHz)–93 dBc/Hz (77 to 81 GHz)Built-in calibration and self-test (monitoring)Arm Cortex-R4F-based radio control systemBuilt-in firmware (ROM)Self-calibrating system across process and temperatureC674x DSP for FMCW signal processingOn-chip Memory: 2MB RAMArm Cortex-R4F microcontroller for object tracking and classification, AUTOSAR, and interface controlSupports autonomous mode (loading user application from QSPI flash memory)Host interfaceCAN (two instances, one being CAN-FD)Other interfaces available to user applicationUp to 6 general purpose ADC channelsUp to 2 SPI portsUp to 2 UARTsI2CGPIOs2-lane LVDS interface for raw ADC data and debug instrumentationDevice Security (on select part numbers)Secure authenticated and encrypted boot supportCustomer programmable root keys, symmetric keys (256 bit), Asymmetric keys (up to RSA-2K) with Key revocation capabilityCrypto software accelerators - PKA , AES (up to 256 bit), SHA (up to 256 bit), TRNG/DRGBFunctional Safety-CompliantDeveloped for functional safety applicationsDocumentation available to aid ISO26262 functional safety system design up to ASIL-DHardware integrity up to ASIL-BSafety-related certificationISO 26262 certified up to ASIL B by TUV SUDAEC-Q100 qualifiedAWR1843AOP advanced featuresEmbedded self-monitoring with no host processor involvementComplex baseband architectureEmbedded interference detection capabilityProgrammable phase rotators in transmit path to enable beam formingPower managementBuilt-in LDO network for enhanced PSRRI/Os support dual voltage 3.3 V/1.8 VClock sourceSupports external oscillator at 40 MHzSupports externally driven clock (square/sine) at 40 MHzSupports 40 MHz crystal connection with load capacitorsEasy hardware design0.8-mm pitch, 180-pin 15 mm × 15 mm flip chip BGA package (ALP) for easy assembly and low-cost PCB designSmall solution sizeOperating ConditionsJunction Temperature range: –40°C to 125°CFMCW transceiverIntegrated 4 receivers and 3 transmitters Antennas-On-Package (AOP)Integrated PLL, transmitter, receiver, Baseband, and ADC76- to 81-GHz coverage with 4 GHz available bandwidthUltra-accurate chirp engine based on fractional-N PLLTX Effective isotropic radiated power (EIRP): 16 dBmRX Effective isotropic noise figure: 10 dB (76 to 81 GHz)Phase noise at 1 MHz:–95 dBc/Hz (76 to 77 GHz)–93 dBc/Hz (77 to 81 GHz)Built-in calibration and self-test (monitoring)Arm Cortex-R4F-based radio control systemBuilt-in firmware (ROM)Self-calibrating system across process and temperatureC674x DSP for FMCW signal processingOn-chip Memory: 2MB RAMArm Cortex-R4F microcontroller for object tracking and classification, AUTOSAR, and interface controlSupports autonomous mode (loading user application from QSPI flash memory)Host interfaceCAN (two instances, one being CAN-FD)Other interfaces available to user applicationUp to 6 general purpose ADC channelsUp to 2 SPI portsUp to 2 UARTsI2CGPIOs2-lane LVDS interface for raw ADC data and debug instrumentationDevice Security (on select part numbers)Secure authenticated and encrypted boot supportCustomer programmable root keys, symmetric keys (256 bit), Asymmetric keys (up to RSA-2K) with Key revocation capabilityCrypto software accelerators - PKA , AES (up to 256 bit), SHA (up to 256 bit), TRNG/DRGBFunctional Safety-CompliantDeveloped for functional safety applicationsDocumentation available to aid ISO26262 functional safety system design up to ASIL-DHardware integrity up to ASIL-BSafety-related certificationISO 26262 certified up to ASIL B by TUV SUDAEC-Q100 qualifiedAWR1843AOP advanced featuresEmbedded self-monitoring with no host processor involvementComplex baseband architectureEmbedded interference detection capabilityProgrammable phase rotators in transmit path to enable beam formingPower managementBuilt-in LDO network for enhanced PSRRI/Os support dual voltage 3.3 V/1.8 VClock sourceSupports external oscillator at 40 MHzSupports externally driven clock (square/sine) at 40 MHzSupports 40 MHz crystal connection with load capacitorsEasy hardware design0.8-mm pitch, 180-pin 15 mm × 15 mm flip chip BGA package (ALP) for easy assembly and low-cost PCB designSmall solution sizeOperating ConditionsJunction Temperature range: –40°C to 125°C
Description
AI
The AWR1843AOP is an Antenna-On-Package device capable of operation in the 76- to 81GHz band. The device is built with TI’s low-power 45-nm RFCMOS process and enables unprecedented levels of integration in an extremely small form factor. The AWR1843AOP is an ideal solution for low-power, self-monitored, ultra-accurate radar systems in the automotive space.
It integrates a DSP subsystem, which contains TI’s high-performance C674x DSP for the Radar Signal processing. The device includes a BIST processor subsystem, which is responsible for radio configuration, control, and calibration. Additionally the device includes a user programmable Arm Cortex-R4F based for automotive interfacing. The Hardware Accelerator block (HWA) can perform radar processing and can offload the DSP in order to execute higher level algorithms. Simple programming model changes can enable a wide variety of sensor applications with the possibility of dynamic reconfiguration for implementing a multimode sensor. Additionally, the device is provided as a complete platform solution including reference hardware design, software drivers, sample configurations, API guide, and user documentation.
The AWR1843AOP is an Antenna-On-Package device capable of operation in the 76- to 81GHz band. The device is built with TI’s low-power 45-nm RFCMOS process and enables unprecedented levels of integration in an extremely small form factor. The AWR1843AOP is an ideal solution for low-power, self-monitored, ultra-accurate radar systems in the automotive space.
It integrates a DSP subsystem, which contains TI’s high-performance C674x DSP for the Radar Signal processing. The device includes a BIST processor subsystem, which is responsible for radio configuration, control, and calibration. Additionally the device includes a user programmable Arm Cortex-R4F based for automotive interfacing. The Hardware Accelerator block (HWA) can perform radar processing and can offload the DSP in order to execute higher level algorithms. Simple programming model changes can enable a wide variety of sensor applications with the possibility of dynamic reconfiguration for implementing a multimode sensor. Additionally, the device is provided as a complete platform solution including reference hardware design, software drivers, sample configurations, API guide, and user documentation.
