5543UE Series
Manufacturer: Belden Inc.
Beta
⌘K

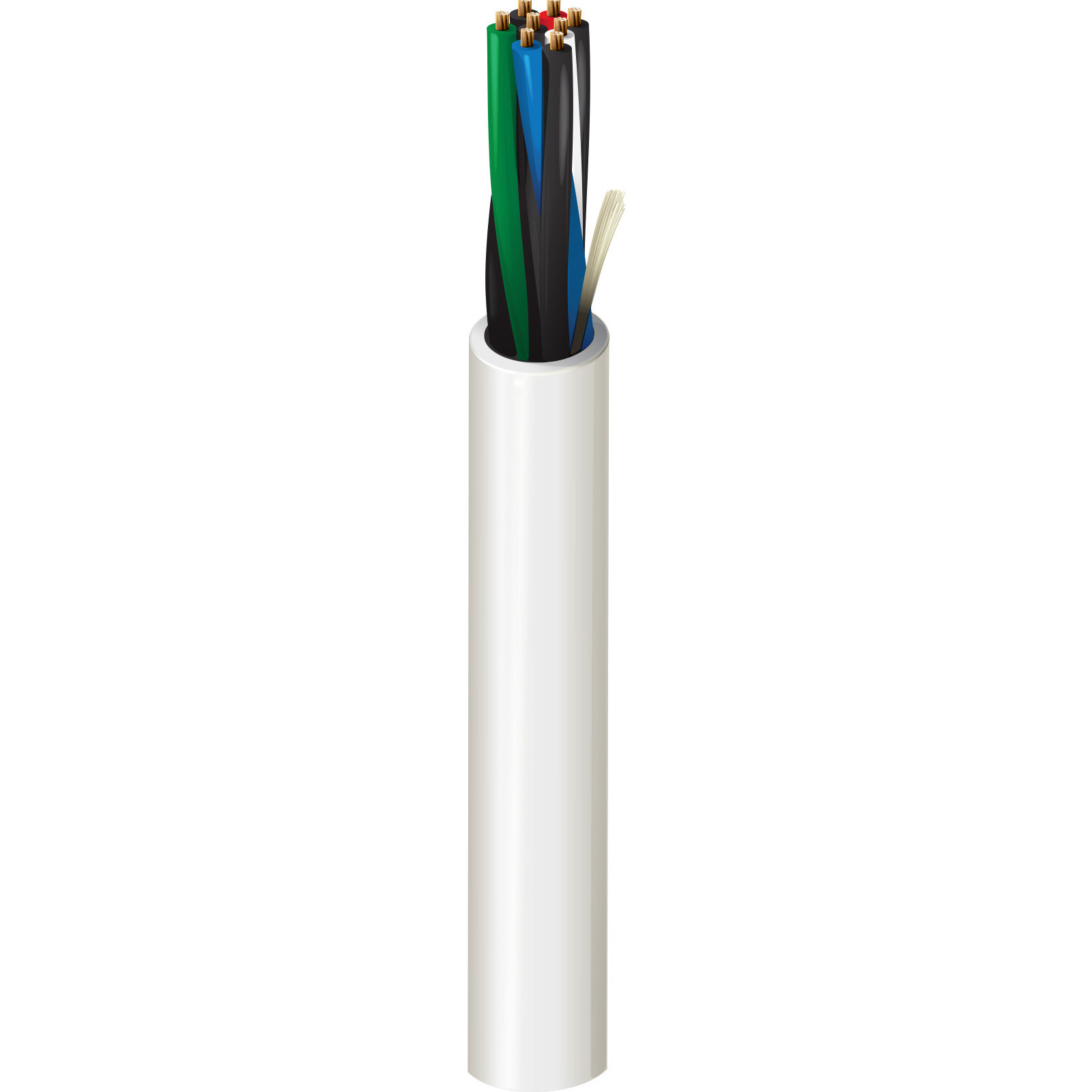

MULT-PAIR 8COND 22AWG GRAY
| Part | Wire Gauge | Jacket (Insulation) Material | Cable Type | Conductor Insulation | Jacket Color | Voltage | Conductor Material | Length | Length | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 22 AWG | Poly-Vinyl Chloride (PVC) Riser | Multi-Pair | Polypropylene (PP) | Gray | 300 VDC | Copper Bare | 304.8 m | 1000 ft | 5.54 mm | 0.218 " | 8 | 30 AWG | 7 | Security Sound | 0.018 in | 0.457 mm | Rip Cord | UL Style CMR |
 Belden Inc. | 22 AWG | Poly-Vinyl Chloride (PVC) Riser | Multi-Pair | Polypropylene (PP) | Gray | 300 VDC | Copper Bare | 304.8 m | 1000 ft | 5.54 mm | 0.218 " | 8 | 30 AWG | 7 | Security Sound | 0.018 in | 0.457 mm | Rip Cord | UL Style CMR |
