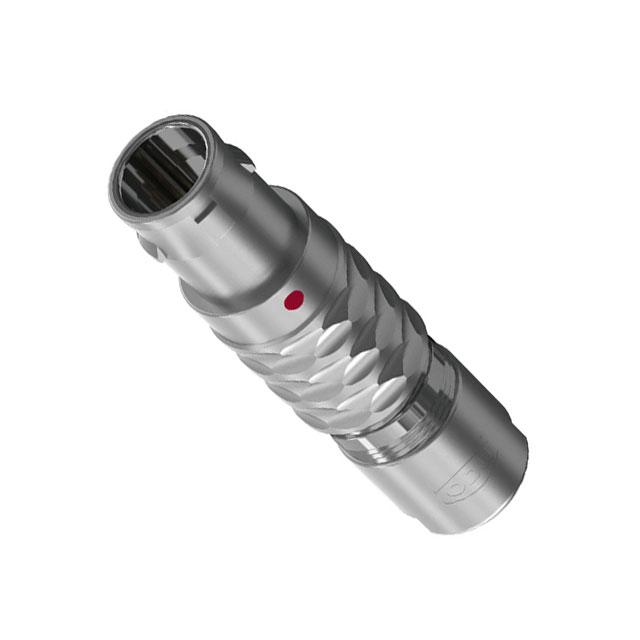

S10L0C-P Series

Manufacturer: ODU

Catalog

ODU MINI-SNAP PLUG, STY 1, SZ 0,

Part	Insert Material	Cable Opening [Max]	Cable Opening [Min]	Contact Finish - Mating	Connector Type	Backshell Material, Plating	Current Rating (Amps)	Mounting Type	Primary Material	Voltage Rating	Fastening Type	Shell Finish	Ingress Protection	Color	Features	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Material	Number of Positions	Shell Material	Applications	Cable Opening [Max]	Cable Opening [Min]	Cable Opening
ODU S10L0C-P02NJH0-2200	Polyetheretherketone (PEEK)	0.087 " 2.2 mm	0.059 " 1.5 mm	Gold	Plug Male Pins	Brass Chrome over Nickel	10 A	Free Hanging (In-Line)	Metal	366 V	Push-Pull	Chrome over Nickel	IP50 - Dust Protected	Silver	Backshell	Unshielded	120 °C	-40 C	Crimp	Brass	2	Brass	Industrial Medical Military Testing Equipment & Measurement
ODU S10L0C-P07LCC0-5600	Polyetheretherketone (PEEK)	0.22 in	0.197 in	Gold	Plug Male Pins	Brass Chrome over Nickel	4 A	Free Hanging (In-Line)	Metal	300 VDC	Push-Pull	Chrome over Nickel	IP50 - Dust Protected	Silver	Backshell	Unshielded	120 °C	-40 C		Brass	7	Brass	Industrial Medical Military Testing Equipment & Measurement	5.6 mm	5 mm
ODU S10L0C-P02PJG0-3200	Polyetheretherketone (PEEK)	0.126 in 3.2 mm	0.079 in 2 mm	Gold	Plug Male Pins	Brass Chrome over Nickel	7.5 A	Free Hanging (In-Line)	Metal	500 V	Push-Pull	Chrome over Nickel	IP50 - Dust Protected	Silver	Backshell	Unshielded	120 °C	-40 C	Crimp	Brass	2	Brass	Industrial Medical Military Testing Equipment & Measurement
ODU S10L0C-P04MFG0-4200	Polyetheretherketone (PEEK)			Gold	Plug Male Pins	Brass Chrome over Nickel	7.5 A	Free Hanging (In-Line)	Metal		Push-Pull	Chrome over Nickel	IP50 - Dust Protected	Silver	Backshell	Shielded	120 °C	-40 C		Brass	4	Brass	Industrial Medical Military Testing Equipment & Measurement
ODU S10L0C-P02PJH0-5200	Polyetheretherketone (PEEK)	0.205 in	0.157 in	Gold	Plug Male Pins	Brass Chrome over Nickel	10 A	Free Hanging (In-Line)	Metal	366 V	Push-Pull	Chrome over Nickel	IP50 - Dust Protected	Silver	Backshell	Unshielded	120 °C	-40 C	Crimp	Brass	2	Brass	Industrial Medical Military Testing Equipment & Measurement			4 mm 5.2 mm
ODU S10L0C-P07MCC0-4200	Polyetheretherketone (PEEK)			Gold	Plug Male Pins	Brass Chrome over Nickel	4 A	Free Hanging (In-Line)	Metal		Push-Pull	Chrome over Nickel	IP50 - Dust Protected	Silver	Backshell		120 °C	-40 C		Brass	7	Brass	Industrial Medical Military Testing Equipment & Measurement
ODU S10L0C-P03NJH0-5200	Polyetheretherketone (PEEK)	0.205 in	0.157 in	Gold	Plug Male Pins	Brass Chrome over Nickel	10 A	Free Hanging (In-Line)	Metal	200 V	Push-Pull	Chrome over Nickel	IP50 - Dust Protected	Silver	Backshell	Unshielded	120 °C	-40 C	Crimp	Brass		Brass	Industrial Medical Military Testing Equipment & Measurement			4 mm 5.2 mm
ODU S10L0C-P09LCC0-2200	Polyetheretherketone (PEEK)	0.087 " 2.2 mm	0.059 " 1.5 mm	Gold	Plug Male Pins	Brass Chrome over Nickel	4 A	Free Hanging (In-Line)	Metal	200 V	Push-Pull	Chrome over Nickel	IP50 - Dust Protected	Silver	Backshell	Unshielded	120 °C	-40 C		Brass	9	Brass	Industrial Medical Military Testing Equipment & Measurement
ODU S10L0C-P09MCC0-2200	Polyetheretherketone (PEEK)	0.087 " 2.2 mm	0.059 " 1.5 mm	Gold	Plug Male Pins	Brass Chrome over Nickel	4 A	Free Hanging (In-Line)	Metal		Push-Pull	Chrome over Nickel	IP50 - Dust Protected	Silver	Backshell	Shielded	120 °C	-40 C		Brass	9	Brass	Industrial Medical Military Testing Equipment & Measurement
ODU S10L0C-P10MCC9-5600	Polyetheretherketone (PEEK)	0.22 in	0.197 in	Gold	Plug Male Pins	Brass Chrome over Nickel	4 A	Free Hanging (In-Line)	Metal		Push-Pull	Chrome over Nickel	IP50 - Dust Protected	Silver	Backshell	Shielded	120 °C	-40 C		Brass	10	Brass	Industrial Medical Military Testing Equipment & Measurement	5.6 mm	5 mm
