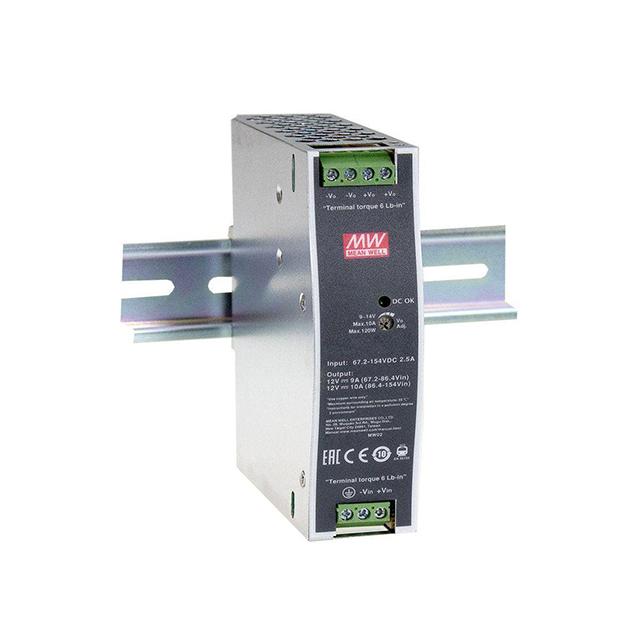

DDR-120 Series

Catalog

DC/DC DIN RAIL SUPPLY 24V 101W

Part	Number of Outputs	Features	Power (Watts)	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Isolation	Input Type	Applications	Approval Agency	DC Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max)
MEAN WELL USA Inc. DDR-120A-24	1	Adjustable Output	101 W	18 V	4.2 A	24 V	4000 V	DC	Industrial ITE (Commercial) Railway	CE EAC	9 V	88.5 %
MEAN WELL USA Inc. DDR-120D-24	1	Adjustable Output	120 W	154 V		24 V	4000 V	DC	Industrial ITE (Commercial) Railway	CE EAC	67.2 V	91 %	5 A
MEAN WELL USA Inc. DDR-120A-48	1	Adjustable Output	101 W	18 V	2.1 A	48 V	4000 V	DC	Industrial ITE (Commercial) Railway	CE EAC	9 V	88.5 %
MEAN WELL USA Inc. DDR-120C-48	1	Adjustable Output	120 W	67.2 V	2.5 A	48 V	4000 V	DC	Industrial ITE (Commercial) Railway	CE EAC	33.6 V	92 %
MEAN WELL USA Inc. DDR-120C-12	1	Adjustable Output	120 W	67.2 V	10 A	12 V	4000 V	DC	Industrial ITE (Commercial) Railway	CE EAC	33.6 V
MEAN WELL USA Inc. DDR-120C-24	1	Adjustable Output	120 W	67.2 V		24 V	4000 V	DC	Industrial ITE (Commercial) Railway	CE EAC	33.6 V	91 %	5 A
MEAN WELL USA Inc. DDR-120B-48	1	Adjustable Output	120 W	33.6 V	2.5 A	48 V	4000 V	DC	Industrial ITE (Commercial) Railway	CE EAC	16.8 V	91 %
MEAN WELL USA Inc. DDR-120D-48	1	Adjustable Output	120 W	154 V	2.5 A	48 V	4000 V	DC	Industrial ITE (Commercial) Railway	CE EAC	67.2 V	91.5 %
MEAN WELL USA Inc. DDR-120D-12	1	Adjustable Output	120 W	154 V	10 A	12 V	4000 V	DC	Industrial ITE (Commercial) Railway	CE EAC	67.2 V
MEAN WELL USA Inc. DDR-120B-12	1	Adjustable Output	120 W	33.6 V	10 A	12 V	4000 V	DC	Industrial ITE (Commercial) Railway	CE EAC	16.8 V	89 %
