917-43 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN SOCKET TRANSIST TO-100 8POS
| Part | Termination | Contact Material - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Current Rating (Amps) | Housing Material | Contact Finish - Mating | Termination Post Length [x] | Termination Post Length [x] | Number of Positions or Pins (Grid) | Contact Material - Mating | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Type | Mounting Type | Termination Post Length | Termination Post Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

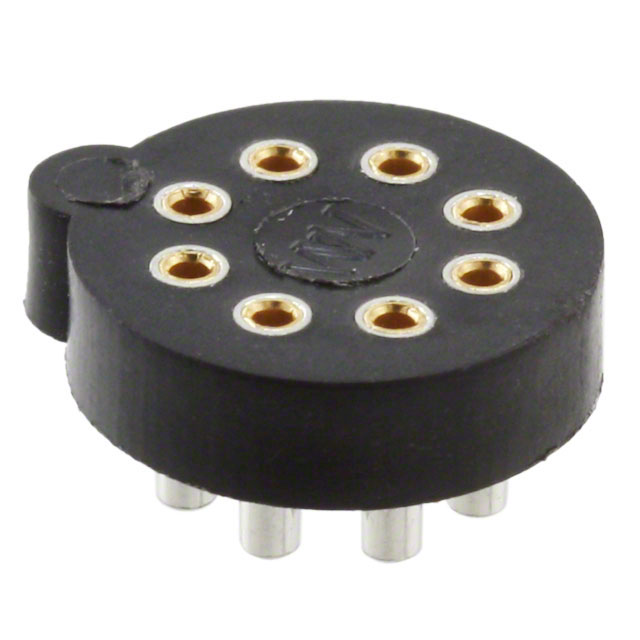

 Mill-Max Manufacturing Corp. | Solder | Brass Alloy | 30 Áin | 0.76 Ám | 200 µin | 5.08 µm | Closed Frame | 3 A | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | 2.29 mm | 0.09 in | 8 | Beryllium Copper | Tin | -55 °C | 125 °C | Transistor TO-100 | Surface Mount | ||

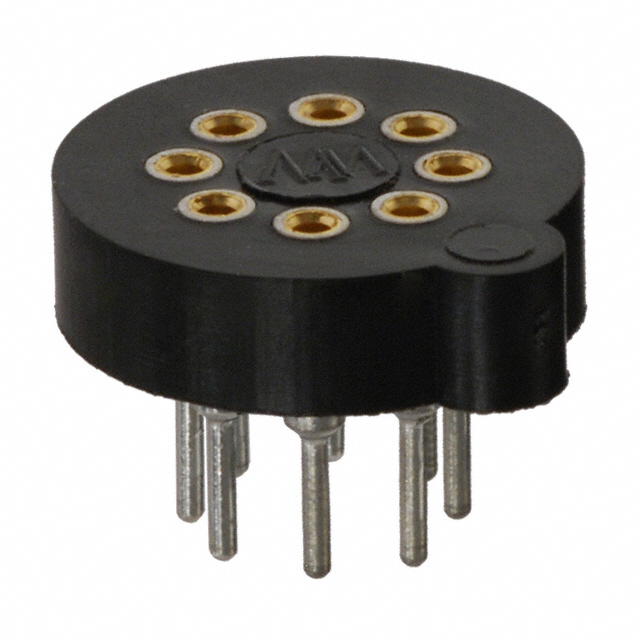

 Mill-Max Manufacturing Corp. | Solder | Brass Alloy | 30 Áin | 0.76 Ám | 200 µin | 5.08 µm | Closed Frame | 3 A | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | 8 | Beryllium Copper | Tin | -55 °C | 125 °C | Transistor TO-5 | Through Hole | 3.18 mm | 0.125 in | ||

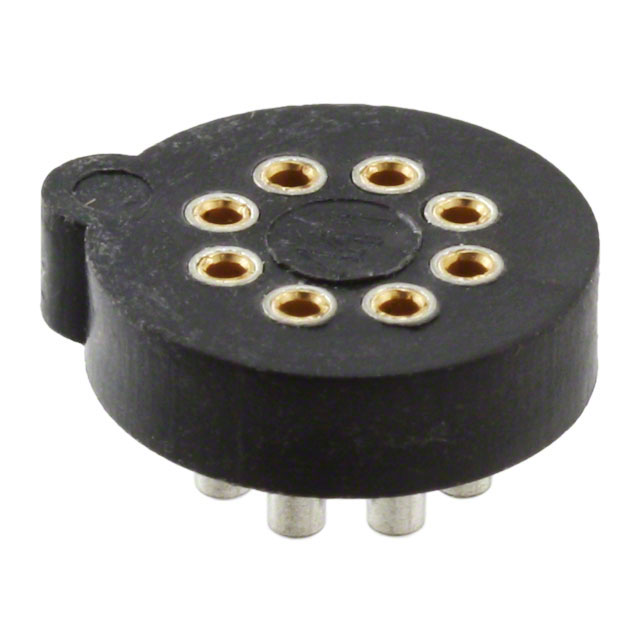

 Mill-Max Manufacturing Corp. | Solder | Brass Alloy | 30 Áin | 0.76 Ám | 200 µin | 5.08 µm | Closed Frame | 3 A | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Gold | 2.29 mm | 0.09 in | 8 | Beryllium Copper | Tin | -55 °C | 125 °C | Transistor TO-5 | Surface Mount |
