M80-532 Series

Catalog

5+5 POS. MALE DIL HORIZONTAL SMT CONN. JACKSCREWS ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Insulation Color	Insulation Material	Material Flammability Rating	Contact Finish - Post	Contact Finish - Mating	Fastening Type	Contact Shape	Termination	Current Rating (Amps)	Style	Number of Rows [custom]	Contact Type	Mounting Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Features	Shrouding	Contact Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Voltage Rating	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Number of Positions [custom]	Contact Finish Thickness - Post
Harwin Inc. M80-5321005	29.5 µin	0.75 µm	All	Black	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Gold	Gold	Threaded	Circular	Solder	2.2 A	Board to Board Cable	2	Male Pin	Right Angle Surface Mount	29.5 µin	0.75 µm	0.079 "	2 mm	5.6 mm	0.22 in	2 mm	0.079 in	Keying Slot Mating Flange	Shrouded - 4 Wall	Brass	Header	-55 C	125 °C	10	800 VAC
Harwin Inc. M80-5321842			All	Black	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Tin	Gold	Threaded	Circular	Solder	2.2 A	Board to Board Cable	2	Male Pin	Right Angle Surface Mount	29.5 µin	0.75 µm	0.079 "	2 mm	5.55 mm	0.218 in	2 mm	0.079 in	Keying Slot Mating Flange	Shrouded - 4 Wall	Brass	Header	-55 C	125 °C	18	800 V	118.1 µin	3 µm

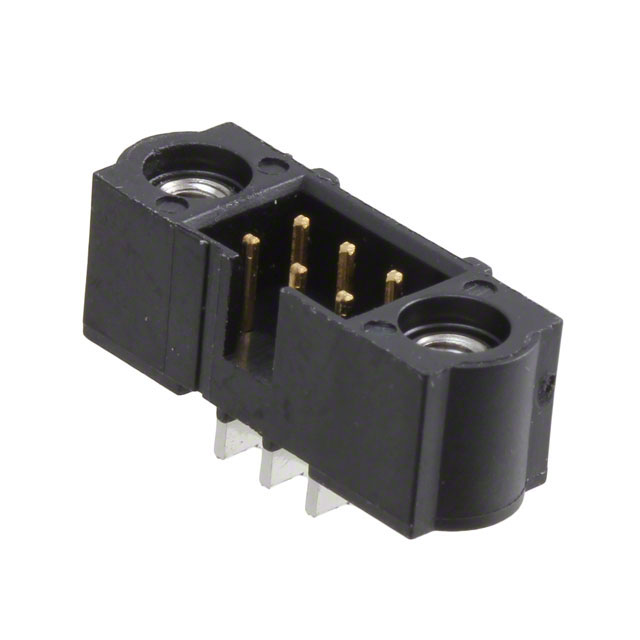

Harwin Inc. M80-5320642			All	Black	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Tin	Gold	Threaded	Circular	Solder	2.2 A	Board to Board Cable	2	Male Pin	Right Angle Surface Mount	29.5 µin	0.75 µm	0.079 "	2 mm	5.55 mm	0.218 in	2 mm	0.079 in	Keying Slot Mating Flange	Shrouded - 4 Wall	Brass	Header	-55 C	125 °C	6	800 V	118.1 µin	3 µm
Harwin Inc. M80-5321242			All	Black	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Tin	Gold	Threaded	Circular	Solder	2.2 A	Board to Board Cable	2	Male Pin	Right Angle Surface Mount	29.5 µin	0.75 µm	0.079 "	2 mm	5.55 mm	0.218 in	2 mm	0.079 in	Keying Slot Mating Flange	Shrouded - 4 Wall	Brass	Header	-55 C	125 °C	12	800 V	118.1 µin	3 µm

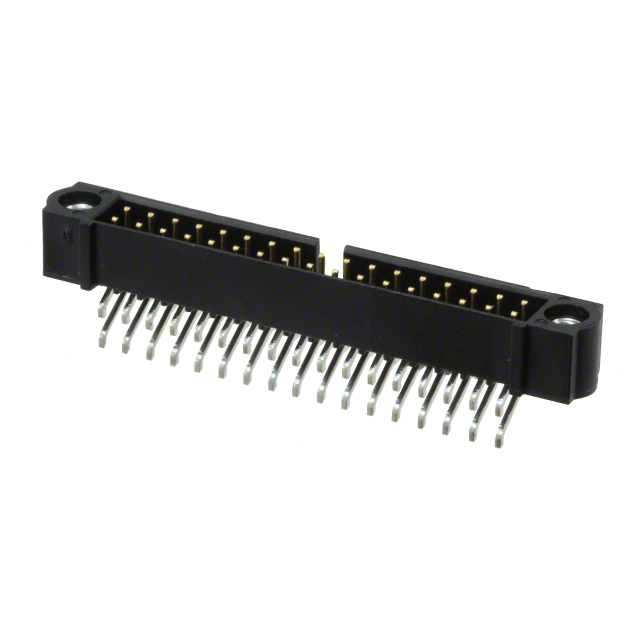

Harwin Inc. M80-5323442			All	Black	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Tin	Gold	Threaded	Circular	Solder	2.2 A	Board to Board Cable	2	Male Pin	Right Angle Surface Mount	29.5 µin	0.75 µm	0.079 "	2 mm	5.55 mm	0.218 in	2 mm	0.079 in	Keying Slot Mating Flange	Shrouded - 4 Wall	Brass	Header	-55 C	125 °C		800 V	118.1 µin	3 µm	34
Harwin Inc. M80-5320842	0.3 µm		All	Black	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Tin	Gold	Threaded	Circular	Solder	2.2 A	Board to Board Cable	2	Male Pin	Right Angle Surface Mount	29.5 µin	0.75 µm	0.079 "	2 mm	5.55 mm	0.218 in	2 mm	0.079 in	Keying Slot Mating Flange	Shrouded - 4 Wall	Brass	Header	-55 C	125 °C	8	800 VAC				12 µin
Harwin Inc. M80-5324242			All	Black	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Tin	Gold	Threaded	Circular	Solder	2.2 A	Board to Board Cable	2	Male Pin	Right Angle Surface Mount	29.5 µin	0.75 µm	0.079 "	2 mm	5.55 mm	0.218 in	2 mm	0.079 in	Keying Slot Mating Flange	Shrouded - 4 Wall	Brass	Header	-55 C	125 °C	42	800 V	118.1 µin	3 µm
Harwin Inc. M80-5322605	29.5 µin	0.75 µm	All	Black	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Gold	Gold	Threaded	Circular	Solder	2.2 A	Board to Board Cable	2	Male Pin	Right Angle Surface Mount	29.5 µin	0.75 µm	0.079 "	2 mm	5.6 mm	0.22 in	2 mm	0.079 in	Keying Slot Mating Flange	Shrouded - 4 Wall	Brass	Header	-55 C	125 °C	26	800 VAC
Harwin Inc. M80-5321442			All	Black	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Tin	Gold	Threaded	Circular	Solder	2.2 A	Board to Board Cable	2	Male Pin	Right Angle Surface Mount	29.5 µin	0.75 µm	0.079 "	2 mm	5.55 mm	0.218 in	2 mm	0.079 in	Keying Slot Mating Flange	Shrouded - 4 Wall	Brass	Header	-55 C	125 °C	14	800 V	118.1 µin	3 µm
Harwin Inc. M80-5321422			All	Black	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Tin-Lead	Gold	Threaded	Circular	Solder	2.2 A	Board to Board Cable	2	Male Pin	Right Angle Surface Mount	29.5 µin	0.75 µm	0.079 "	2 mm	5.55 mm	0.218 in	2 mm	0.079 in	Keying Slot Mating Flange	Shrouded - 4 Wall	Brass	Header	-55 C	125 °C	14	800 V	118.1 µin	3 µm
