090148 Series

Manufacturer: Molex

Catalog

CONN SOCKET STRIP RCP 8 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE C-GRID TUBE

Part	Number of Positions	Number of Rows	Voltage Rating	Insulation Material	Fastening Type	Contact Material	Contact Shape	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Termination	Contact Type	Insulation Color	Mounting Type	Contact Finish - Mating	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Molex 0901481308	8	1	350 V	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Phosphor Bronze	Square	0.13 in	3.3 mm	0.1 in	2.54 mm	Receptacle	3 µm	118.1 µin	105 ░C	-55 °C	Tin	3 A	0.114 in	2.9 mm	All	Solder	Female Socket	Black	Through Hole Right Angle	Gold	Automotive General Purpose Lighting Medical Telecommunications	30 Áin	0.76 Ám
Molex 0901481218	18	1	350 V	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Phosphor Bronze	Square	0.13 in	3.3 mm	0.1 in	2.54 mm	Receptacle	3 µm	118.1 µin	105 ░C	-55 °C	Tin	3 A	0.114 in	2.9 mm	All	Solder	Female Socket	Black	Through Hole Right Angle	Gold	Automotive General Purpose Lighting Medical Telecommunications	15 µin	0.38 µm
Molex 0901481230	30	1	350 V	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Phosphor Bronze	Square	0.13 in	3.3 mm	0.1 in	2.54 mm	Receptacle	3 µm	118.1 µin	105 ░C	-55 °C	Tin	3 A	0.114 in	2.9 mm	All	Solder	Female Socket	Black	Through Hole Right Angle	Gold	Automotive General Purpose Lighting Medical Telecommunications	15 µin	0.38 µm
Molex 0901481118	18	1	350 V	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Phosphor Bronze	Square	0.13 in	3.3 mm	0.1 in	2.54 mm	Receptacle	1.02 Ám	40 Áin	105 ░C	-55 °C	Tin	3 A	0.114 in	2.9 mm	All	Solder	Female Socket	Black	Through Hole Right Angle		Automotive General Purpose Lighting Medical Telecommunications	40 µin	1.02 µm
Molex 0901481215	15	1	350 V	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Phosphor Bronze	Square	0.13 in	3.3 mm	0.1 in	2.54 mm	Receptacle	3 µm	118.1 µin	105 ░C	-55 °C	Tin	3 A	0.114 in	2.9 mm	All	Solder	Female Socket	Black	Through Hole Right Angle	Gold	Automotive General Purpose Lighting Medical Telecommunications	15 µin	0.38 µm
Molex 0901481306	6	1	350 V	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Phosphor Bronze	Square	0.13 in	3.3 mm	0.1 in	2.54 mm	Receptacle	3 µm	118.1 µin	105 ░C	-55 °C	Tin	3 A	0.114 in	2.9 mm	All	Solder	Female Socket	Black	Through Hole Right Angle	Gold	Automotive General Purpose Lighting Medical Telecommunications	30 Áin	0.76 Ám
Molex 0901481208	8	1	350 V	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Phosphor Bronze	Square	0.13 in	3.3 mm	0.1 in	2.54 mm	Receptacle	3 µm	118.1 µin	105 ░C	-55 °C	Tin	3 A	0.114 in	2.9 mm	All	Solder	Female Socket	Black	Through Hole Right Angle	Gold	Automotive General Purpose Lighting Medical Telecommunications	15 µin	0.38 µm
Molex 0901481204	4	1	350 V	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Phosphor Bronze	Square	0.13 in	3.3 mm	0.1 in	2.54 mm	Receptacle	3 µm	118.1 µin	105 ░C	-55 °C	Tin	3 A	0.114 in	2.9 mm	All	Solder	Female Socket	Black	Through Hole Right Angle	Gold	Automotive General Purpose Lighting Medical Telecommunications	15 µin	0.38 µm
Molex 0901481203		1	350 V	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Phosphor Bronze	Square	0.13 in	3.3 mm	0.1 in	2.54 mm	Receptacle	3 µm	118.1 µin	105 ░C	-55 °C	Tin	3 A	0.114 in	2.9 mm	All	Solder	Female Socket	Black	Through Hole Right Angle	Gold	Automotive General Purpose Lighting Medical Telecommunications	15 µin	0.38 µm

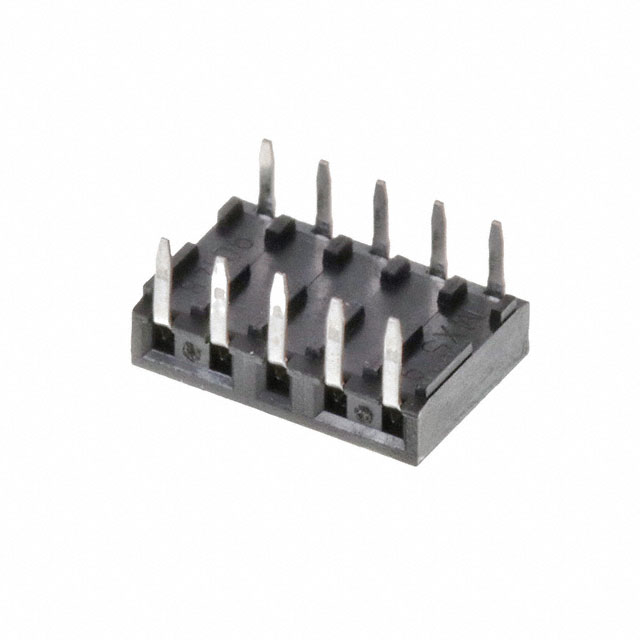

Molex 0901481105		1	350 V	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	Phosphor Bronze	Square	0.13 in	3.3 mm	0.1 in	2.54 mm	Receptacle	1.02 Ám	40 Áin	105 ░C	-55 °C	Tin	3 A	0.114 in	2.9 mm	All	Solder	Female Socket	Black	Through Hole Right Angle		Automotive General Purpose Lighting Medical Telecommunications	40 µin	1.02 µm
