002265 Series

Manufacturer: Molex

Catalog

CONN RCPT 2POS 0.1 TIN EDGE MNT

Part	Contact Finish Thickness - Post	Contact Type	Insulation Material	Applications	Contact Material	Contact Shape	Insulation Color	Current Rating (Amps)	Mounting Type	Termination	Contact Finish - Post	Material Flammability Rating	Voltage Rating	Fastening Type	Features	Connector Type	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Rows	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding
Molex 0022653021	3.81 Ám	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Phosphor Bronze	Square	White	4 A	Board Edge Right Angle Through Hole	Solder	Tin	UL94 V-0	250 VAC	Push-Pull	Board Hooks	Receptacle	0.185 in	4.7 mm	All	-40 C	105 ░C	0.1 "	2.54 mm	2	150 Áin	3.81 Ám	Board to Board Cable	1
Molex 0022653151	3.81 Ám	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Phosphor Bronze	Square	White	4 A	Board Edge Right Angle Through Hole	Solder	Tin	UL94 V-0	250 VAC	Push-Pull	Board Hooks	Receptacle	0.185 in	4.7 mm	All	-40 C	105 ░C	0.1 "	2.54 mm	15	150 Áin	3.81 Ám	Board to Board Cable	1
Molex 0022653080	2.54 µm	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Brass	Square	White	2.5 A	Through Hole	Solder	Tin	UL94 V-0	250 VAC	Push-Pull	Board Hooks	Receptacle			All	-40 C	80 °C	0.1 "	2.54 mm	8	100 çin	2.54 çm	Board to Board Cable	1	100 µin	0.311 in	7.9 mm	0.132 in	3.35 mm
Molex 0022653150	2.54 µm	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Brass	Square	White	2.5 A	Through Hole	Solder	Tin	UL94 V-0	250 VAC	Push-Pull	Board Hooks	Receptacle			All	-40 C	80 °C	0.1 "	2.54 mm	15	100 çin	2.54 çm	Board to Board Cable	1	100 µin	0.311 in	7.9 mm	0.132 in	3.35 mm

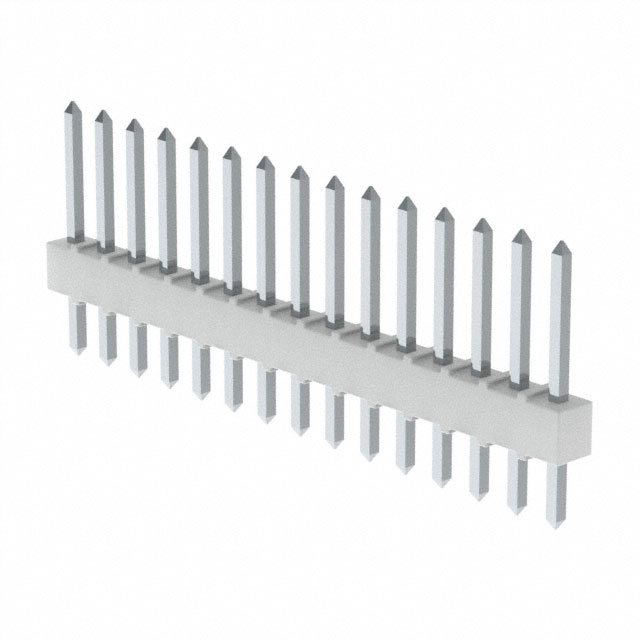

Molex 0022651150	1.52 µm	Male Pin	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications		Square	White		Through Hole	Solder	Tin	UL94 V-0		Push-Pull		Header	0.13 in	3.3 mm	All			0.1 "	2.54 mm	15	60 µin	1.52 Ám	Board to Board Cable	1	60 µin					0.228 in	5.8 mm	0.47 in	11.94 mm	0.112 in	2.84 mm	Unshrouded
Molex 0022653020	2.54 µm	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Brass	Square	White	2.5 A	Through Hole	Solder	Tin	UL94 V-0	250 VAC	Push-Pull	Board Hooks	Receptacle			All	-40 C	80 °C	0.1 "	2.54 mm	2	100 çin	2.54 çm	Board to Board Cable	1	100 µin	0.311 in	7.9 mm	0.132 in	3.35 mm
Molex 0022653040	2.54 µm	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Brass	Square	White	2.5 A	Through Hole	Solder	Tin	UL94 V-0	250 VAC	Push-Pull	Board Hooks	Receptacle			All	-40 C	80 °C	0.1 "	2.54 mm	4	100 çin	2.54 çm	Board to Board Cable	1	100 µin	0.311 in	7.9 mm	0.132 in	3.35 mm
Molex 0022653041	3.81 Ám	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Phosphor Bronze	Square	White	4 A	Board Edge Right Angle Through Hole	Solder	Tin	UL94 V-0	250 VAC	Push-Pull	Board Hooks	Receptacle	0.185 in	4.7 mm	All	-40 C	105 ░C	0.1 "	2.54 mm	4	150 Áin	3.81 Ám	Board to Board Cable	1
Molex 0022653071	3.81 Ám	Cat Ear Female Non-Gendered	Nylon Polyamide (PA)	Automotive General Purpose Medical Telecommunications	Phosphor Bronze	Square	White	4 A	Board Edge Right Angle Through Hole	Solder	Tin	UL94 V-0	250 VAC	Push-Pull	Board Hooks	Receptacle	0.185 in	4.7 mm	All	-40 C	105 ░C	0.1 "	2.54 mm	7	150 Áin	3.81 Ám	Board to Board Cable	1
