RF505 Series

Super Fast Recovery Diode (AEC-Q101 Qualified)

Catalog

Super Fast Recovery Diode (AEC-Q101 Qualified)

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Grade	Speed	Current - Reverse Leakage @ Vr	Package / Case	Operating Temperature - Junction [Max]	Mounting Type	Supplier Device Package	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Technology	Qualification	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature - Junction

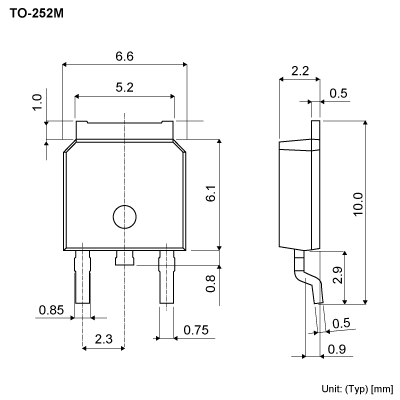

Rohm Semiconductor RF505BM6SFHTL	600 V	Automotive	200 mA 500 ns	10 µA	DPAK (2 Leads + Tab) SC-63 TO-252-3	150 °C	Surface Mount	TO-252	30 ns	5 A	Standard	AEC-Q101	1.7 V
Rohm Semiconductor RF505BM6STL	600 V		200 mA 500 ns	10 µA	DPAK (2 Leads + Tab) SC-63 TO-252-3	150 °C	Surface Mount	TO-252	30 ns	5 A	Standard		1.7 V

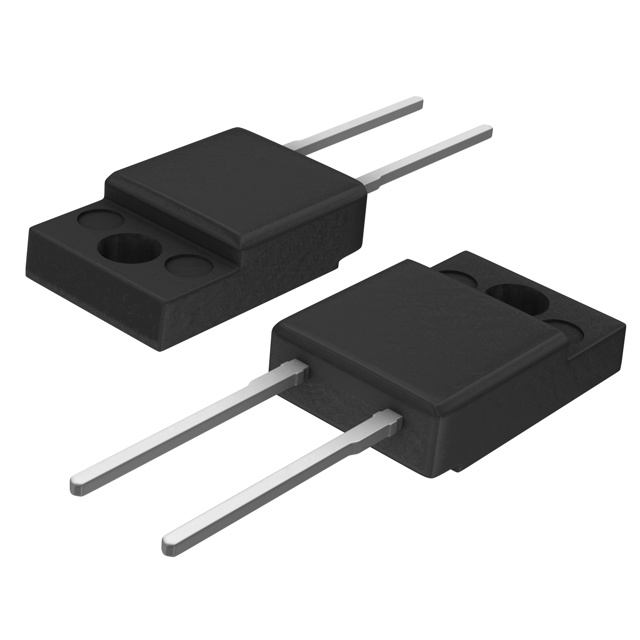

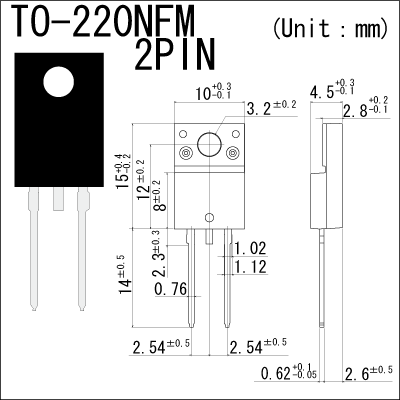

Rohm Semiconductor RF505TF6SC9	600 V		200 mA 500 ns	10 µA	TO-220-2 Full Pack		Through Hole	TO-220NFM	30 ns	5 A	Standard		1.7 V	150 ¯C
Rohm Semiconductor RF505BGE6STL	600 V		200 mA 500 ns	10 µA	DPAK (2 Leads + Tab) SC-63 TO-252-3		Surface Mount	TO-252GE	30 ns	5 A	Standard		1.7 V	150 ¯C
Rohm Semiconductor RF505TF6S	600 V		200 mA 500 ns		TO-220-2 Full Pack Isolated Tab	150 °C	Through Hole	TO-220NFM		5 A	Standard

Catalog

Super Fast Recovery Diode (AEC-Q101 Qualified)

Description

ROHM's fast recovery diodes are ultra high-speed, low VF, and suited for significant efficiency increase of switching power supply as well as reduction of switching loss.
