9033-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

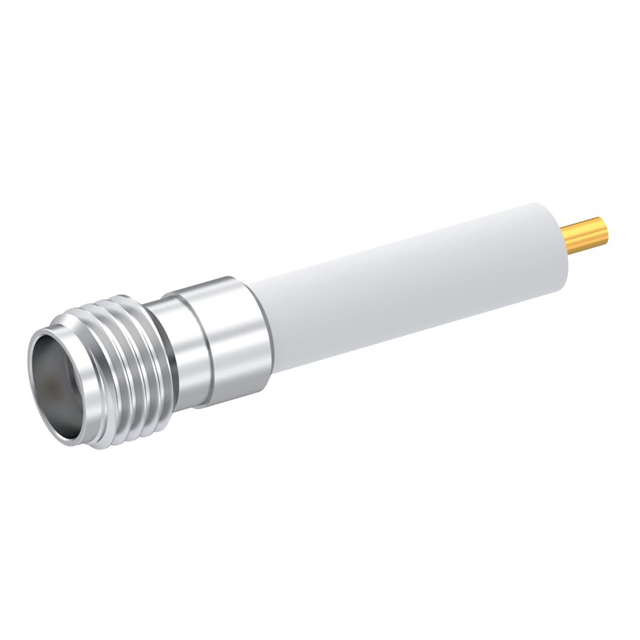

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Fastening Type | Impedance | Frequency - Max [Max] | Connector Style | Features | Number of Ports | Mounting Type | Housing Color | Center Contact Material | Shield Termination | Contact Termination | Connector Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Gold | Stainless Steel | Threaded | 50 Ohms | 18 GHz | SMA | Extended Insulation | 1 | Panel Mount Through Hole | Silver | Beryllium Copper | Solder | Solder | Female Socket Jack | Flange |
