BUF20800-Q1 Series

Automotive, 18-CH Gamma Voltage Generator with Two Programmable VCOM Channels

Catalog

Automotive, 18-CH Gamma Voltage Generator with Two Programmable VCOM Channels

Part	Qualification	Number of Circuits	Package / Case	Package / Case	Current - Output / Channel	Current - Supply	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Output Type	Supplier Device Package	Mounting Type	Grade

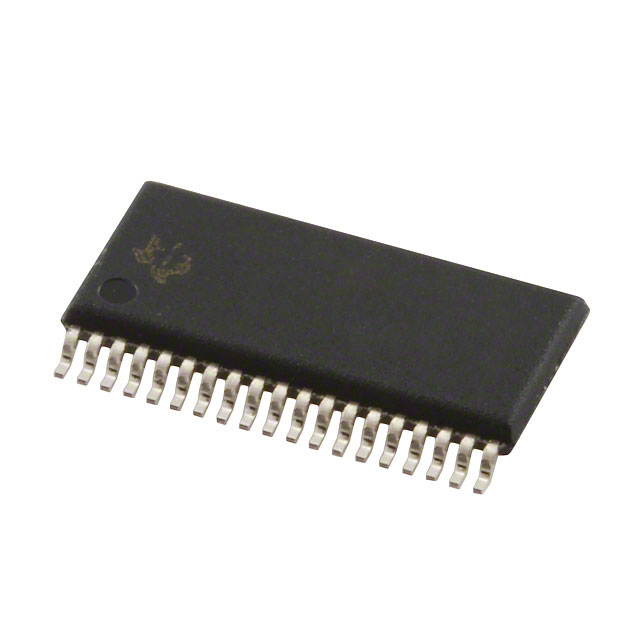

Texas Instruments BUF20800ATDCPRQ1	AEC-Q100	18	0.173 in 4.4 mm	38-PowerTFSOP	45 mA	18 mA	7 V	18 V	Rail-to-Rail	38-HTSSOP	Surface Mount	Automotive

Catalog

Automotive, 18-CH Gamma Voltage Generator with Two Programmable VCOM Channels

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1Device HBM ESD Classification Level 2Device CDM ESD Classification Level C4Low Supply Current: 900 µA/chAnalog Supply Voltage: 7 V to 18 VDigital Supply Voltage: 2 V to 5.5 V18-Channel Gamma Correction2-Channel Programmable VCOM: 50 mA IOUT10-Bit ResolutionRail-to-Rail OutputI2C Interface3.4 MHz High-Speed ModeDemo Board and Software AvailableQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1Device HBM ESD Classification Level 2Device CDM ESD Classification Level C4Low Supply Current: 900 µA/chAnalog Supply Voltage: 7 V to 18 VDigital Supply Voltage: 2 V to 5.5 V18-Channel Gamma Correction2-Channel Programmable VCOM: 50 mA IOUT10-Bit ResolutionRail-to-Rail OutputI2C Interface3.4 MHz High-Speed ModeDemo Board and Software Available

Description

The BUF20800-Q1 is a programmable voltage reference generator designed for gamma correction in TFT-LCD panels. It provides 18 programmable outputs for gamma correction and two channels for VCOMadjustment, each with 10-bit resolution. All channels are programmable using an I2C interface that supports high-speed data transfers up to 3.4 MHz.This programmability replaces the traditional, time consuming process of changing resistor values to optimize the various gamma voltages and allows designers to determine the correct gamma voltages for a panel very quickly. Required changes are easily implemented without hardware changes. The BUF20800-Q1 uses TI’s latest, small-geometry analog CMOS process, which makes it a very competitive choice for full production, not just evaluation. For lower channel count, please contact your local sales or marketing representative. The BUF20800-Q1 is available in an HTSSOP-38 package withPowerPAD™. It is specified from −40°C to +105°C. The BUF20800-Q1 is a programmable voltage reference generator designed for gamma correction in TFT-LCD panels. It provides 18 programmable outputs for gamma correction and two channels for VCOMadjustment, each with 10-bit resolution. All channels are programmable using an I2C interface that supports high-speed data transfers up to 3.4 MHz.This programmability replaces the traditional, time consuming process of changing resistor values to optimize the various gamma voltages and allows designers to determine the correct gamma voltages for a panel very quickly. Required changes are easily implemented without hardware changes. The BUF20800-Q1 uses TI’s latest, small-geometry analog CMOS process, which makes it a very competitive choice for full production, not just evaluation. For lower channel count, please contact your local sales or marketing representative. The BUF20800-Q1 is available in an HTSSOP-38 package withPowerPAD™. It is specified from −40°C to +105°C.
