84828 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

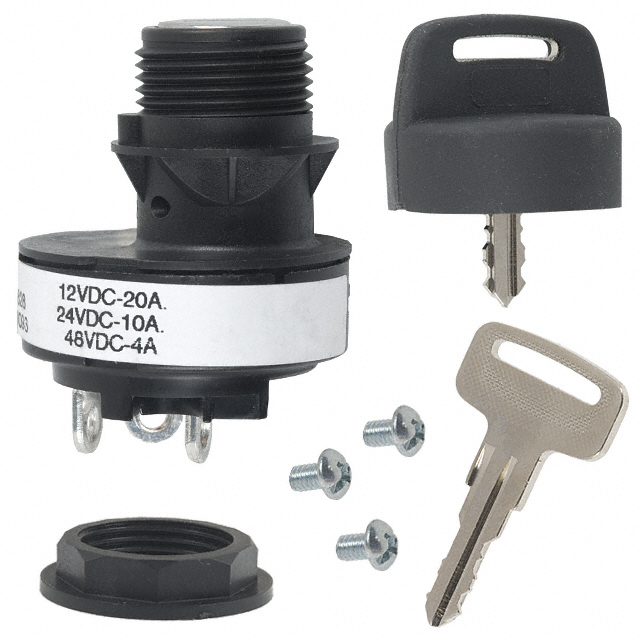

SWITCH KEYLOCK 2POS SPST 20A 12V
| Part | Electrical Life | Mechanical Life | Depth Behind Flange | Mounting Type | Angle of Throw | Contact Material | Termination Style | Number of Positions | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Actuator Type | Voltage Rating - DC | Circuit | Key Removable Positions | Contact Timing | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 25000 Steps | 25000 Steps | 39.88 mm | Panel Mount | 45 ° | Copper | Screw Terminal | 2 | 22.35 mm | 20 A | Flat Key | 12 V | SPST | Center | Not Specified | Off-On | 85 °C | -40 C |
