LN31 Series

Catalog

LED GREEN DIFFUSED 5MM ROUND T/H

Part	Lens Size	Lens Size	Lens Transparency	Height (Max) [Max] [z]	Millicandela Rating	Configuration	Lens Style	Color	Wavelength - Peak	Lens Color	Current - Test	Package / Case	Supplier Device Package [diameter]	Voltage - Forward (Vf) (Typ)	Mounting Type	Height (Max) [Max]	Supplier Device Package

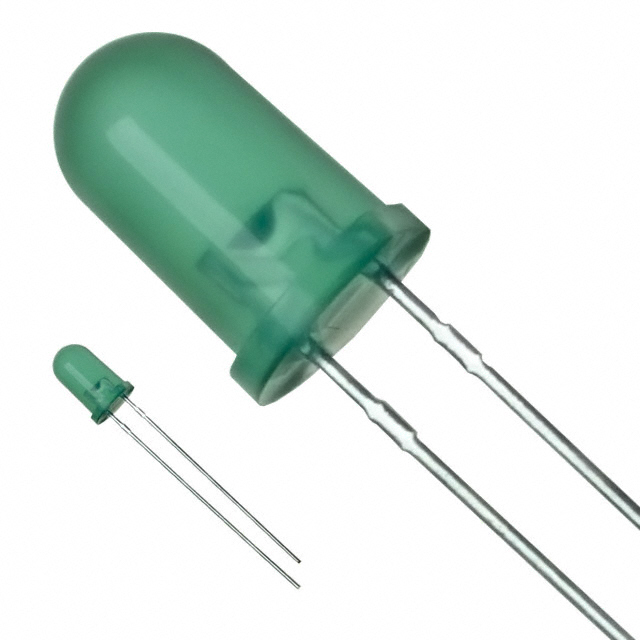

Panasonic Industrial Automation Sales LN31GPX	T-1 3/4	5 mm	Diffused	8.85 mm	15 mcd	Standard	Round with Domed Top	Green	565 nm	Green	20 mA	Radial	5 mm	2.2 V	Through Hole

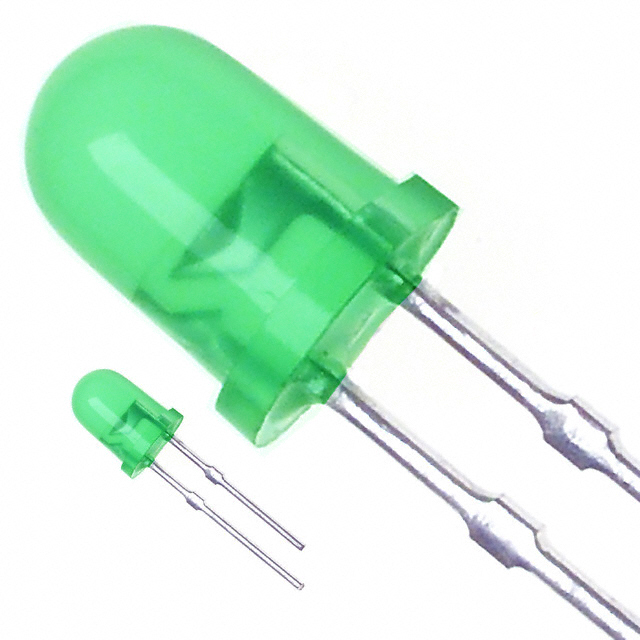

Panasonic Industrial Automation Sales LN31GPSL	T-1 3/4	5 mm	Diffused		15 mcd	Standard	Round with Domed Top	Green	565 nm	Green	20 mA	Radial	5 mm	2.2 V	Through Hole	7.7 mm

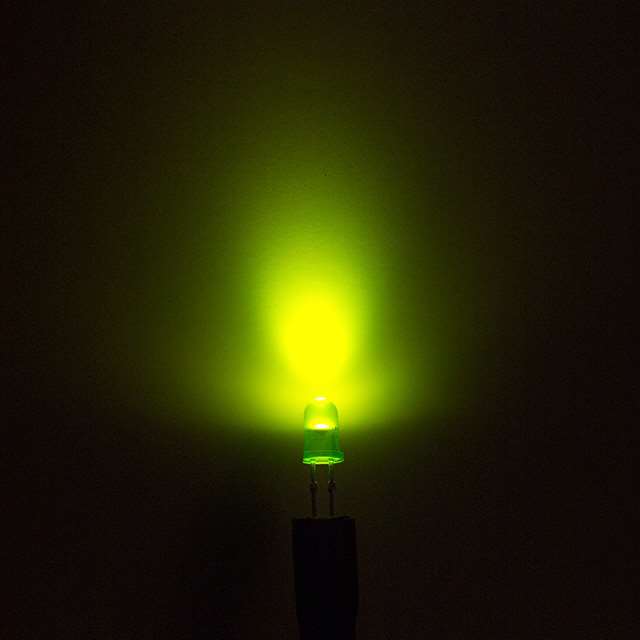

Panasonic Industrial Automation Sales LN31GPHL	T-1 3/4	5 mm	Diffused	8.85 mm	15 mcd	Standard	Round with Domed Top	Green	565 nm	Green	20 mA	Radial	5 mm	2.2 V	Through Hole

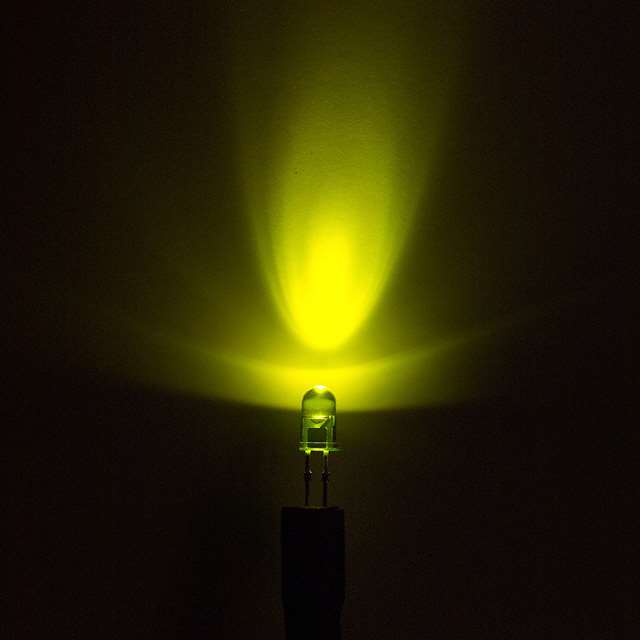

Panasonic Industrial Automation Sales LN31GCPHL	T-1 3/4	5 mm	Clear		20 mcd	Standard	Round with Domed Top	Green	565 nm	Green	20 mA	Radial		2.2 V	Through Hole	11.65 mm	5 mm
