3240 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN SPADE TERM 10-12AWG #10 YEL

Part	Material - Insulation	Mounting Type	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [x]	Width - Outer Edges	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Color	Contact Material	Insulation	Features	Stud/Tab Size	Contact Finish	Terminal Type	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Termination	Length - Termination	Length - Termination	Wire Gauge	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Width - Outer Edges [x]	Stud/Tab Size	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Length - Termination

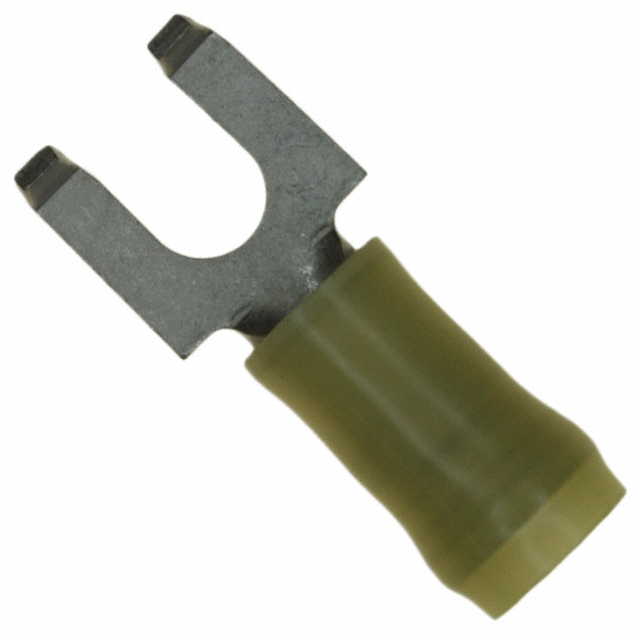

TE Connectivity Raychem Cable Protection 324015	Nylon Polyamide (PA)	Free Hanging (In-Line)	0.25 in	6.35 mm	12 AWG	10 AWG	0.416 in	10.57 mm	26.82 mm	1.056 in	0.25 "	3.81 mm	0.15 "	6.35 mm	Yellow	Copper	Insulated	Serrated Termination	10 Stud	Tin	Flanged	5 mm	0.197 in	Crimp	0.591 in	15.01 mm

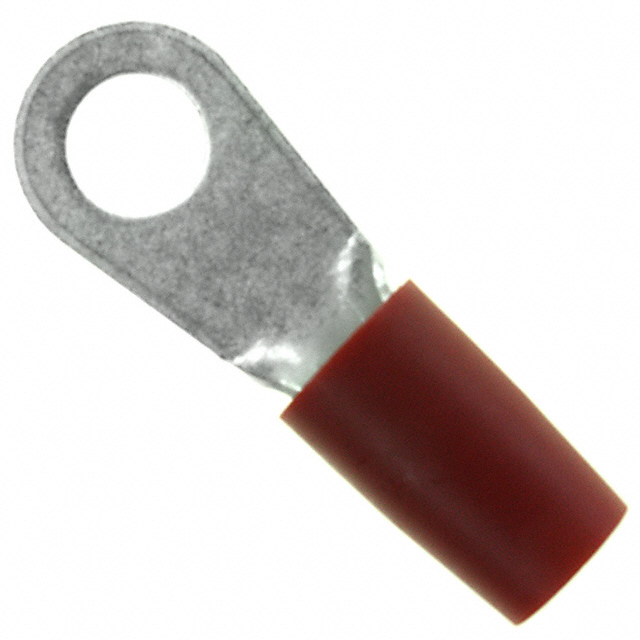

TE Connectivity Raychem Cable Protection 324082	Nylon Polyamide (PA)	Free Hanging (In-Line)							36.2 mm	1.425 in					Red	Copper	Insulated	Serrated Termination	0.25 Stud	Tin	Circular			Crimp			8 AWG	0.256 in	6.5 mm	0.04 in	1.02 mm	0.478 in	12.14 mm

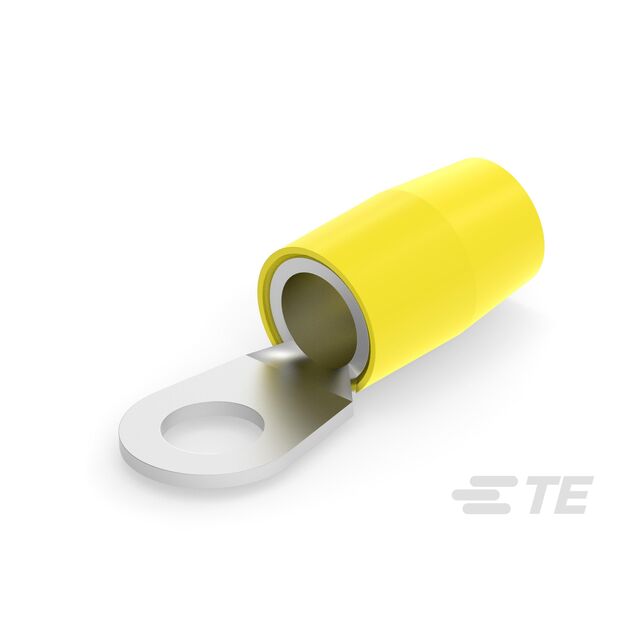

TE Connectivity Raychem Cable Protection 324085	Nylon Polyamide (PA)	Free Hanging (In-Line)					0.926 in		61.37 mm	2.416 in					Yellow	Copper	Insulated	Serrated Termination		Tin	Circular			Crimp				0.61 in	15.49 mm	0.08 "	2.03 mm			23.52 mm	1/2 Stud
TE Connectivity Raychem Cable Protection 32403	Nylon Polyamide (PA)	Free Hanging (In-Line)	0.218 in	5.54 mm	22 AWG	16 AWG			19.89 mm	0.783 in					Red	Copper	Insulated	Serrated Termination	6 Stud	Tin	Standard	3.68 mm	0.145 in	Crimp		0.404 "						0.344 in	8.74 mm			2.03 mm	3.18 mm	0.125 "	0.08 in	10.26 mm

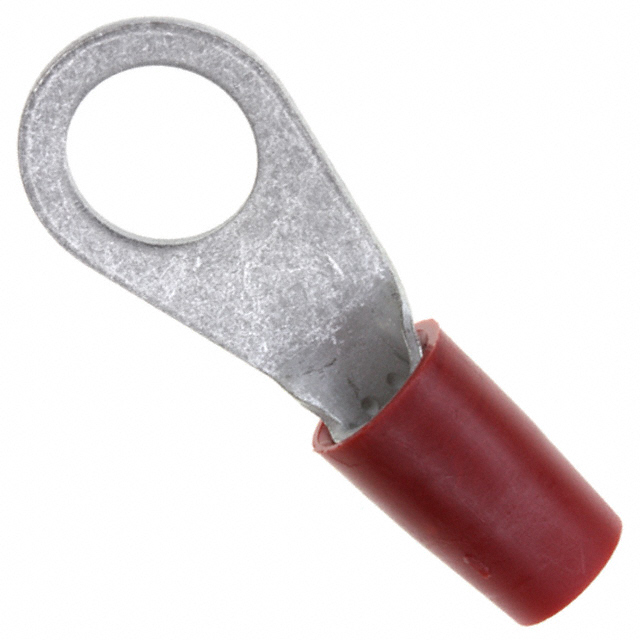

TE Connectivity Raychem Cable Protection 324045	Nylon Polyamide (PA)	Free Hanging (In-Line)					0.587 in	14.91 mm	39.17 mm	1.542 in					Red	Copper	Insulated	Serrated Termination		Tin	Circular			Crimp			8 AWG	0.256 in	6.5 mm	0.04 in	1.02 mm				3/8 Stud

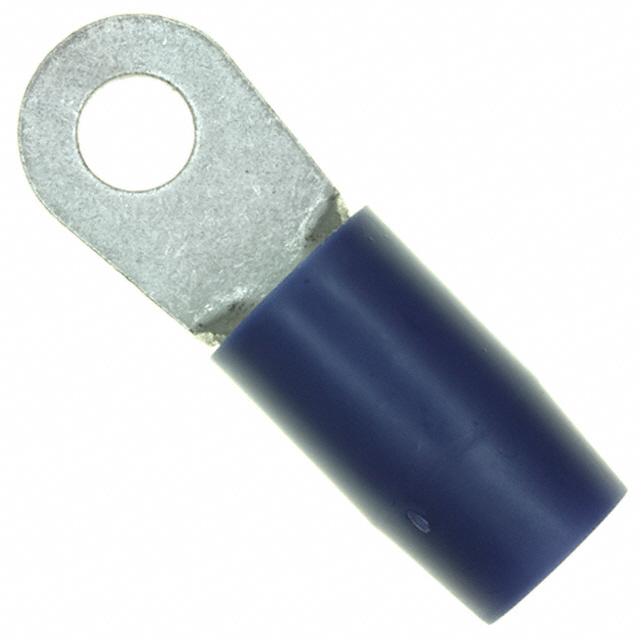

TE Connectivity Raychem Cable Protection 324057	Nylon Polyamide (PA)	Free Hanging (In-Line)							61.62 mm	2.426 in					Blue	Copper	Insulated	Serrated Termination		Tin	Circular			Crimp			44 AWG	0.58 in	14.73 mm	0.07 in	1.78 mm	0.807 "	20.5 mm		3/8 Stud

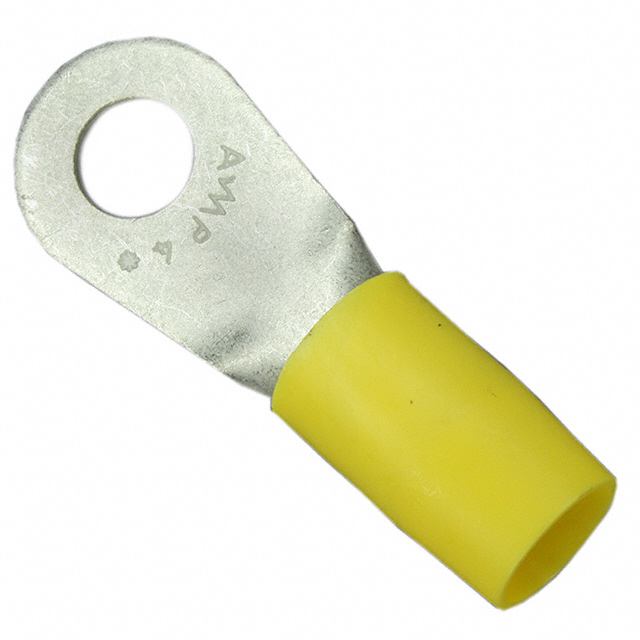

TE Connectivity Raychem Cable Protection 324051	Nylon Polyamide (PA)	Free Hanging (In-Line)							47.7 mm	1.878 in					Yellow	Copper	Insulated	Serrated Termination	0.3125 Stud	Tin	Circular			Crimp			4 AWG	0.382 in	9.7 mm	0.048 in	1.22 mm	0.679 in	17.25 mm
TE Connectivity Raychem Cable Protection 324086	Nylon Polyamide (PA)	Free Hanging (In-Line)													Blue	Copper	Insulated	Serrated Termination	12 Stud	Tin	Circular			Crimp						0.031 in	0.79 mm	0.469 in	11.91 mm					0.17 " 4.32 mm	0.115 in 2.92 mm
TE Connectivity Raychem Cable Protection 324011	Nylon Polyamide (PA)	Free Hanging (In-Line)			22 AWG	16 AWG	0.375 in		23.01 mm	0.906 in					Red	Copper	Insulated	Offset Holes Serrated Termination	10 Stud	Tin	Circular			Crimp						0.031 in	0.79 mm			9.53 mm		2.03 mm	3.18 mm	0.125 "	0.08 in
TE Connectivity Raychem Cable Protection 324028		Free Hanging (In-Line) Right Angle														Copper	Non-Insulated	Brazed Seam	0.25 Stud	Tin	Circular			Crimp
