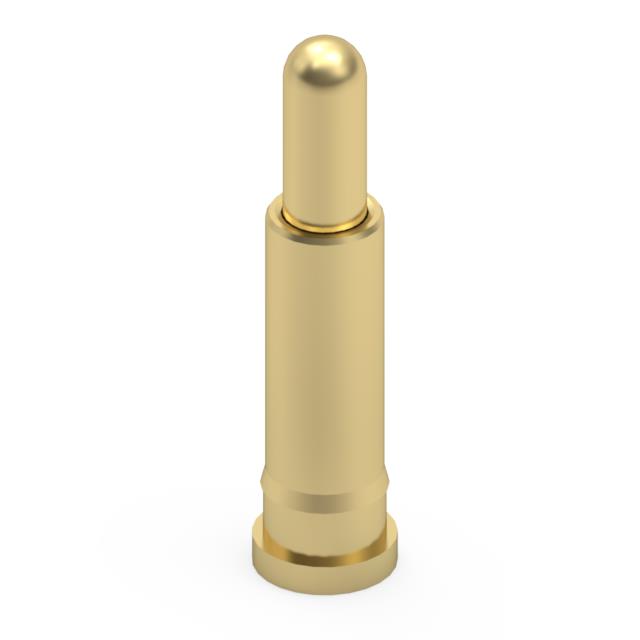

0907-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Current Rating (Amps) | Mating Cycles | Pad Layout Dimension | Pad Layout Dimension | Operating Force - Mid Compression | Operating Force - Initial | Contact Finish | Maximum Working Height [Max] | Maximum Working Height [Max] | Minimum Working Height | Minimum Working Height | Plunger Size [diameter] | Plunger Size [diameter] | Mounting Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Recommended Working Height | Recommended Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Sleeve & Plunger (Pogo Pins) | 5.2 A | 1000000 | 0.072 in | 1.83 mm | 60 gf | 10 gf | Gold | 0.295 in | 7.49 mm | 0.24 in | 6.1 mm | 0.042 in | 1.07 mm | Surface Mount | Brass Alloy | 20 µin | 0.51 µm | 0.267 in | 6.79 mm |
