GEC06D Series

Catalog

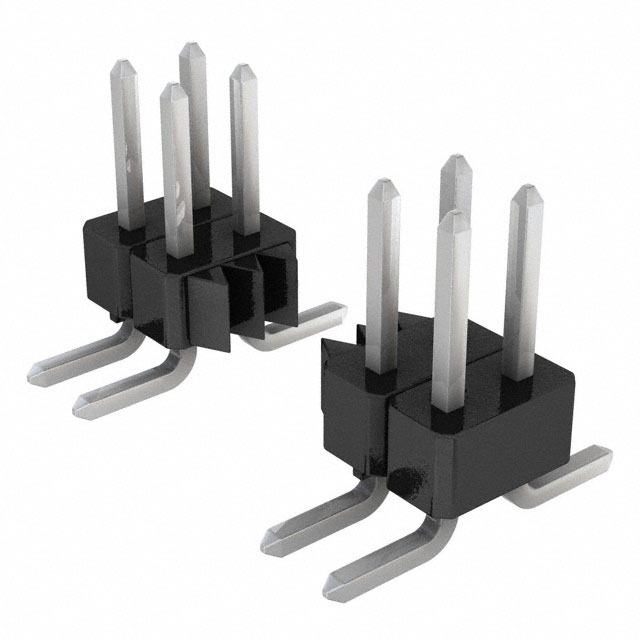

CONN HEADER SMD 12POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Style	Contact Type	Number of Positions	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Insulation Material	Connector Type	Contact Material	Mounting Type	Insulation Color	Insulation Height	Insulation Height	Fastening Type	Contact Finish - Post	Contact Shape	Number of Rows [custom]
Sullins Connector Solutions GEC06DABN-M30	2.54 µm	100 µin	UL94 V-0	Board to Board Cable	Male Pin	12	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	All	Unshrouded	150 °C	-65 ░C	0.1 in	2.54 mm	0.23 in	5.84 mm	3 A	Nylon 9T Polyamide (PA9T)	Header Breakaway	Phosphor Bronze	Surface Mount	Black	0.1 in	2.54 mm	Push-Pull	Tin	Square	2
