ASJ-199 Series
Manufacturer: Adam Tech
Beta
⌘K
AUDIO JACK
| Part | Mating Length/Depth | Mating Length/Depth | Housing Material | Body Color | Contact Material | Voltage - Rated | Contact Material - Plating | Current Rating (Amps) | Termination | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Connector Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Signal Lines | Actual Diameter [diameter] | Actual Diameter [diameter] | Internal Switch(s) | Features | Gender | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

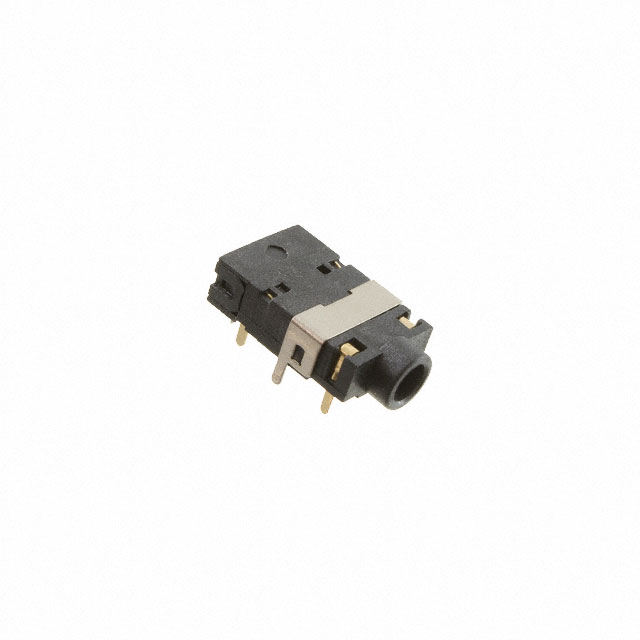

 Adam Tech | 14 mm | 0.551 in | Thermoplastic | Black | Phosphor Bronze | 30 V | Gold | 0.5 A | Solder | Shielded | -20 ░C | 70 °C | 0.125 in | 3.5 mm | 0.141 in | Phone Jack | 5 | 4 | Stereo (4 Conductor TRRS) | 0.142 in | 3.6 mm | Single Switch | Board Guide | Female | Right Angle Through Hole |

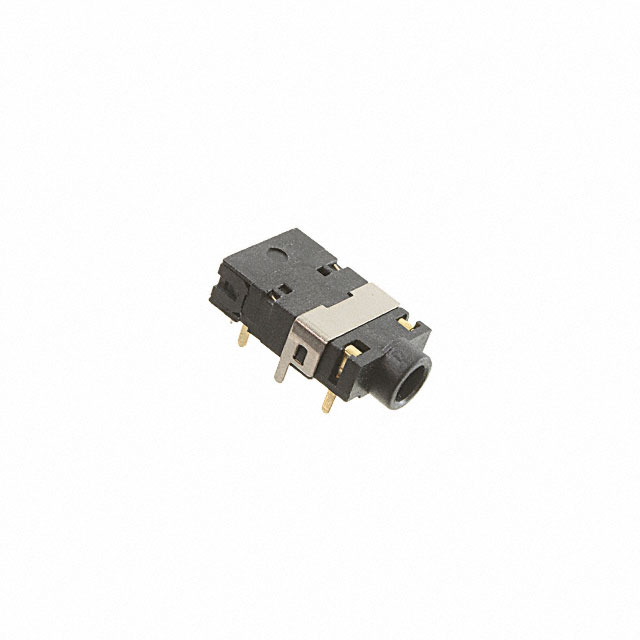

 Adam Tech | 14 mm | 0.551 in | Thermoplastic | Black | Phosphor Bronze | 30 V | Gold | 0.5 A | Solder | Shielded | -20 ░C | 70 °C | 0.125 in | 3.5 mm | 0.141 in | Phone Jack | 5 | 4 | Stereo (4 Conductor TRRS) | 0.142 in | 3.6 mm | Single Switch | Board Guide | Female | Right Angle Through Hole |
