833-048 Series
Manufacturer: EDAC Inc.
Beta
⌘K

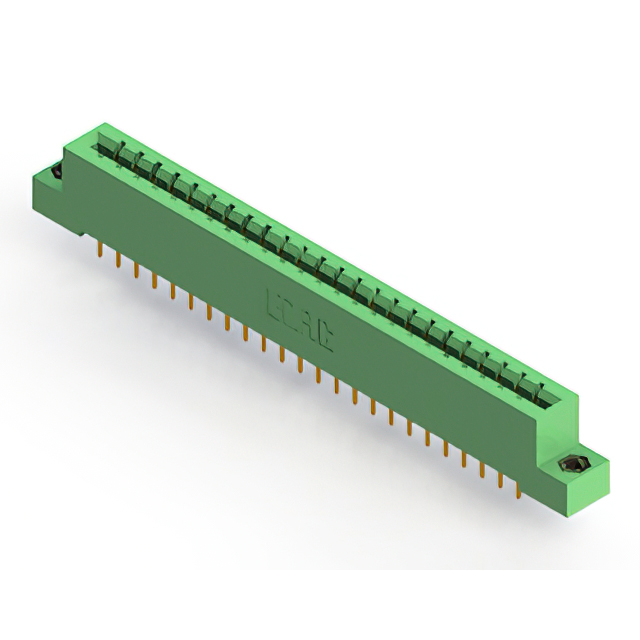

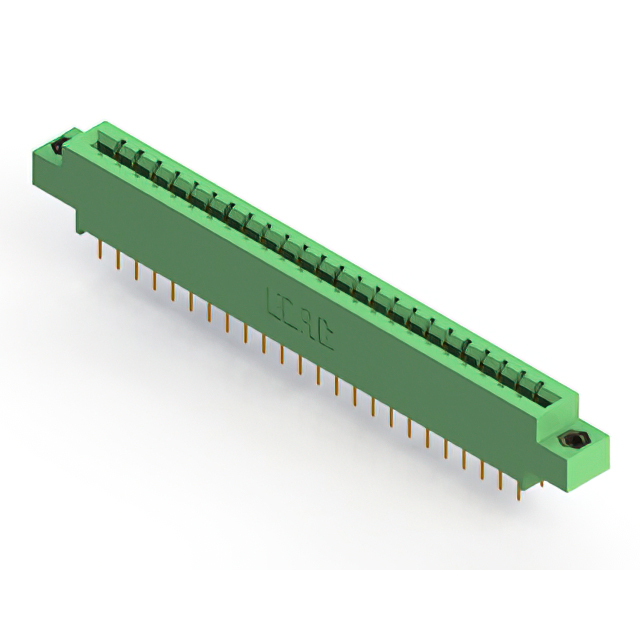

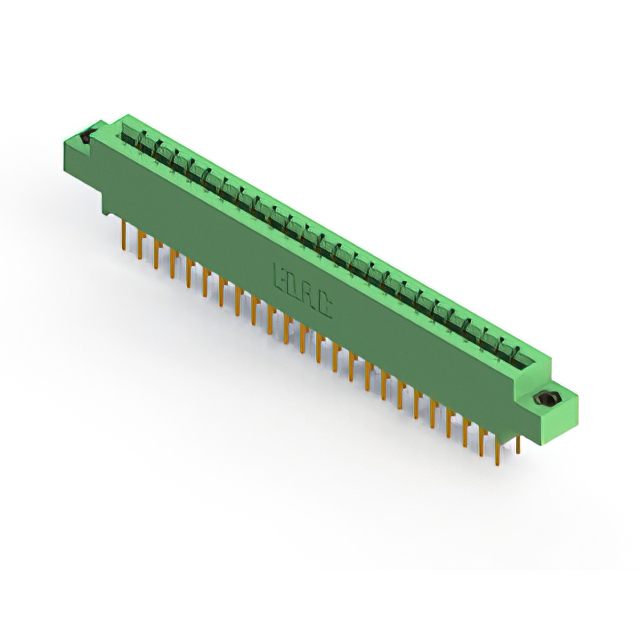

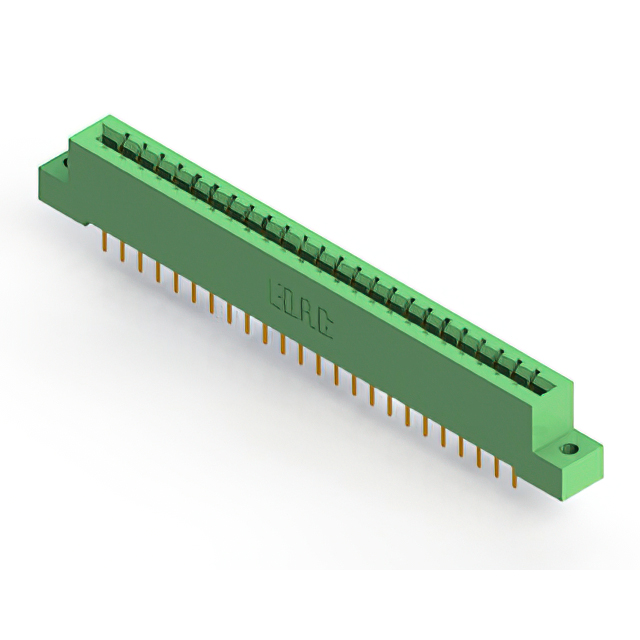

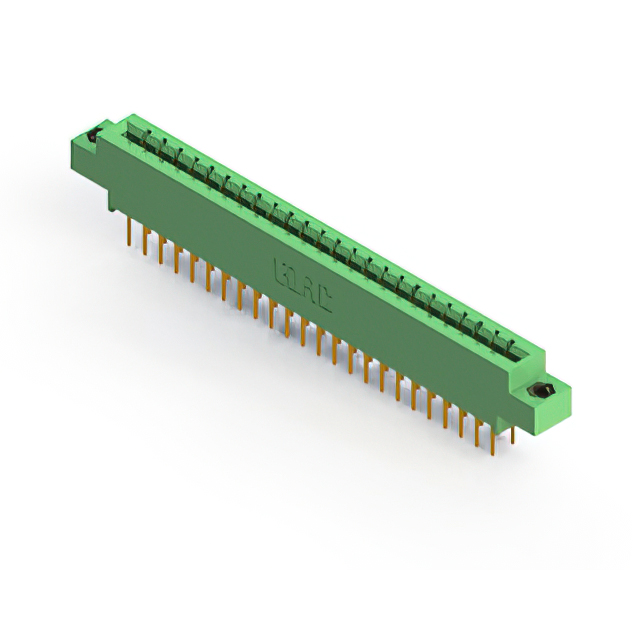

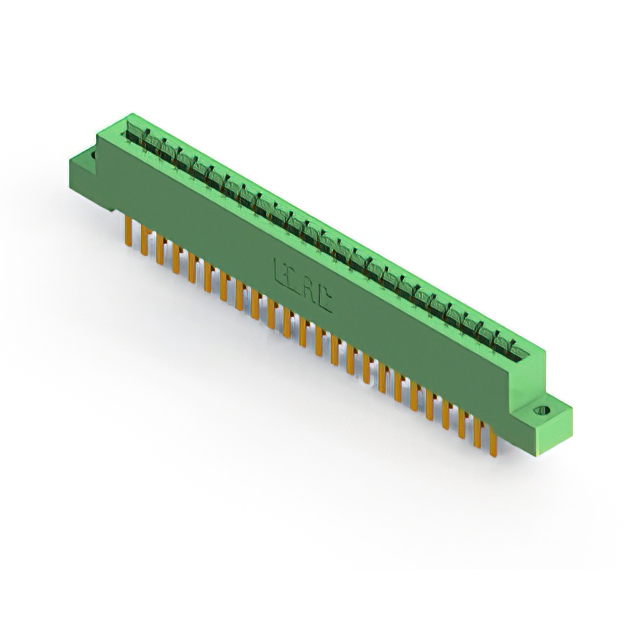

CONN EDGE DUAL FMALE 48POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Mounting Type | Read Out | Gender | Card Type | Color | Number of Rows [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Pitch | Pitch | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Flange Feature | Contact Material | Number of Positions/Bay/Row | Termination | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Gold | 0.25 Ám | 10 Áin | Cantilever | Board Edge Straddle Mount | Dual | Female | Non Specified - Dual Edge | Green | 2 | 125 °C | -40 C | Card Extender | 3.96 mm | 0.156 in | 48 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | Copper Alloy | 24 | Solder | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Gold | 0.25 Ám | 10 Áin | Cantilever | Through Hole | Dual | Female | Non Specified - Dual Edge | Green | 2 | 125 °C | -40 C | 3.96 mm | 0.156 in | 48 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 24 | Wire Wrap | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Gold | 0.25 Ám | 10 Áin | Cantilever | Board Edge Straddle Mount | Dual | Female | Non Specified - Dual Edge | Green | 2 | 125 °C | -40 C | Card Extender | 3.96 mm | 0.156 in | 48 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 24 | Solder | 0.156 " | 3.96 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Gold | 0.25 Ám | 10 Áin | Cantilever | Through Hole | Dual | Female | Non Specified - Dual Edge | Green | 2 | 125 °C | -40 C | 3.96 mm | 0.156 in | 48 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 24 | Solder Eyelet(s) | 0.156 " | 3.96 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Gold | 0.25 Ám | 10 Áin | Cantilever | Through Hole | Dual | Female | Non Specified - Dual Edge | Green | 2 | 125 °C | -40 C | 3.96 mm | 0.156 in | 48 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | 24 | Solder | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Gold | 0.25 Ám | 10 Áin | Cantilever | Through Hole | Dual | Female | Non Specified - Dual Edge | Green | 2 | 125 °C | -40 C | 3.96 mm | 0.156 in | 48 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | Copper Alloy | 24 | Solder | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Gold | 0.25 Ám | 10 Áin | Cantilever | Through Hole | Dual | Female | Non Specified - Dual Edge | Green | 2 | 125 °C | -40 C | 3.96 mm | 0.156 in | 48 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | Copper Alloy | 24 | Wire Wrap | 0.156 " | 3.96 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Gold | 0.25 Ám | 10 Áin | Cantilever | Through Hole | Dual | Female | Non Specified - Dual Edge | Green | 2 | 125 °C | -40 C | 3.96 mm | 0.156 in | 48 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | Copper Alloy | 24 | Wire Wrap | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Gold | 0.25 Ám | 10 Áin | Cantilever | Through Hole | Dual | Female | Non Specified - Dual Edge | Green | 2 | 125 °C | -40 C | 3.96 mm | 0.156 in | 48 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | Copper Alloy | 24 | Solder | 0.128 " | 3.25 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Gold | 0.25 Ám | 10 Áin | Cantilever | Through Hole | Dual | Female | Non Specified - Dual Edge | Green | 2 | 125 °C | -40 C | 3.96 mm | 0.156 in | 48 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded | Copper Alloy | 24 | Wire Wrap | 0.128 " | 3.25 mm |
