VLD2AN0B Series
Manufacturer: Carling Technologies
Beta
⌘K

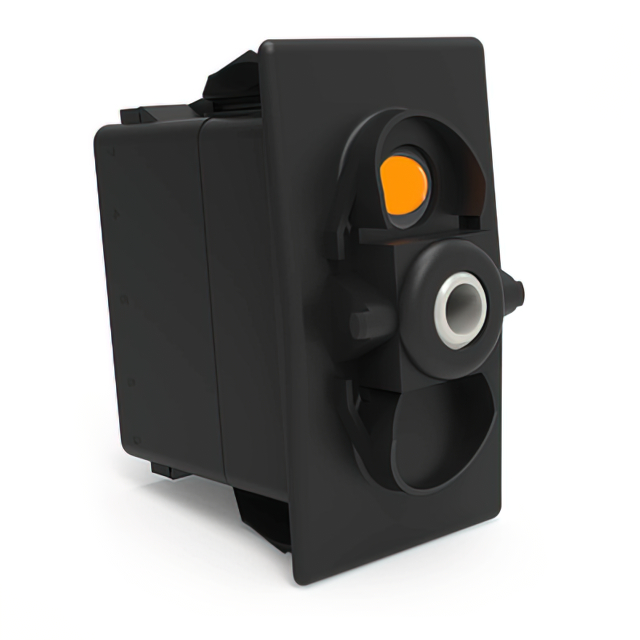

SWITCH ROCKER DPDT 20A 12V
| Part | Electrical Life | Mechanical Life | Illumination Voltage (Nominal) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mounting Type | Switch Function | Illumination Type, Color | Current Rating (Amps) | Ingress Protection | Color - Actuator/Cap | Circuit | Approval Agency | Voltage Rating - DC | Termination Style | Actuator Type | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 100000 Cycles | 100000 Cycles | 12 VDC | 36.83 mm | 21.08 mm | Panel Mount Snap-In | Mom-Off-Mom | Amber LED | 20 A | IP66 IP68 | Black | DPDT | CSA UL VDE | 12 V | Quick Connect - 0.250" (6.3mm) | Convex (Reverse V) - Illuminated | No Marking | 85 °C | -40 C |
 Carling Technologies | 100000 Cycles | 100000 Cycles | 12 VDC | 36.83 mm | 21.08 mm | Panel Mount Snap-In | Mom-Off-Mom | Amber LED | 20 A | IP66 IP68 | DPDT | CSA UL VDE | 12 V | Quick Connect - 0.250" (6.3mm) | Actuator Arm Cap Required Illuminated | Varies by Cap | 85 °C | -40 C |
