GFC0612 Series
Manufacturer: Delta Electronics
Beta
⌘K

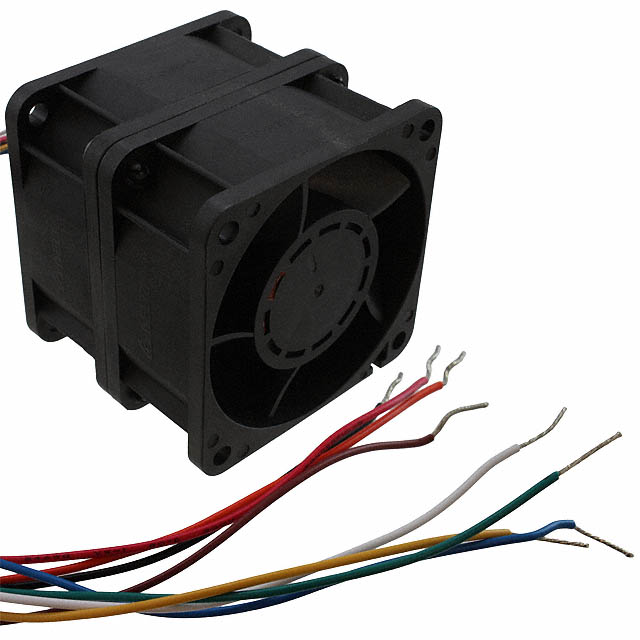

FAN AXIAL DUAL 60X56MM 12VDC
| Part | Material - Blade | Current Rating (Amps) | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Weight [custom] | Weight [custom] | Air Flow | Air Flow | Voltage - Rated | Width [y] | Power (Watts) | Static Pressure | Static Pressure | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Features | Bearing Type | RPM [custom] | RPM [custom] | Approval Agency | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 1.6 A | 40 °C 50000 Hrs | 10.8 VDC | 13.2 VDC | Plastic | 0.364 lb | 165.11 g | 1.82 m³/min | 65 CFM | 12 VDC | 56 mm | 19.2 W | 2.007 in H2O | 499.9 Pa | 60 mm | 60 mm | -10 °C | 60 °C | Tubeaxial (Dual) | Locked Rotor Protection PWM Control Speed Sensor (Tach) | Ball | 10400 RPM | 9500 RPM | CE CSA UL VDE | 4 |
