MS3120F16 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

RECEPT

Part	Primary Material	Grade	Mounting Type	Insert Material	Shielding	Shell Finish	Number of Positions	Mounting Feature	Contact Material	Contact Finish - Mating	Applications	Ingress Protection	Color	Qualification	Features	Connector Type	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Shell Material	Fastening Type	Backshell Material	Plating	Voltage Rating	Current Rating	Shell Size - Insert Length	Shell Size - Insert Width
Amphenol Aerospace Operations MS3120F16-8P(LC)
Amphenol Aerospace Operations MS3120F16-26SW	Metal	Military	Panel Mount	Neoprene	Unshielded	Cadmium Olive Drab Chromate	26	Flange	Copper Alloy	Gold	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Environment Resistant	Olive Drab	MIL-DTL-26482 Series I	Backshell Cable Clamp	Female Sockets Receptacle	W	125 °C	-55 °C	Crimp	16 S	26	Aluminum	Bayonet Lock	Aluminum	Olive Drab Chromate over Cadmium
Amphenol Aerospace Operations MS3120F16-26S(LC)
Amphenol Aerospace Operations MS3120F16-23S	Metal	Military	Panel Mount	Neoprene	Unshielded	Cadmium Olive Drab Chromate	23	Flange	Copper Alloy	Gold	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Environment Resistant	Olive Drab	MIL-DTL-26482 Series I	Backshell Cable Clamp	Female Sockets Receptacle	N (Normal)	125 °C	-55 °C	Crimp	16 S	23	Aluminum	Bayonet Lock	Aluminum	Olive Drab Chromate over Cadmium

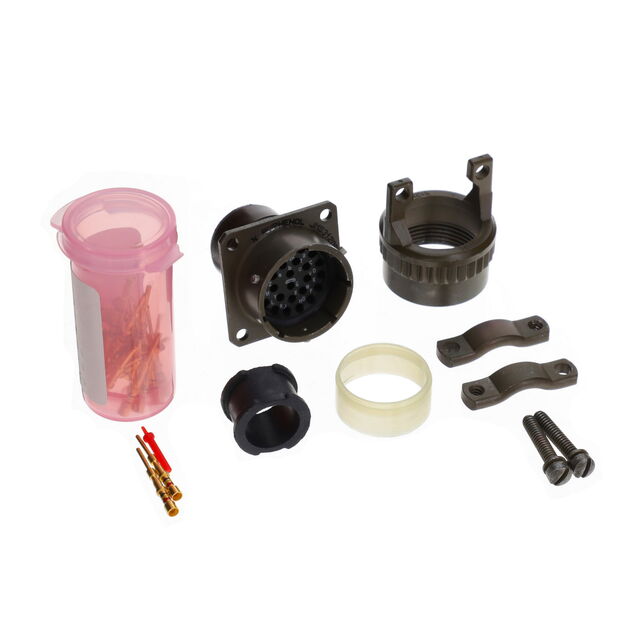

Amphenol Aerospace Operations MS3120F16-26P	Metal	Military	Panel Mount		Unshielded	Cadmium Olive Drab Chromate	26	Flange		Gold		Environment Resistant	Olive Drab	MIL-DTL-26482 Series I	Strain Relief	Male Pins Receptacle	N (Normal)	125 °C	-55 °C	Crimp	16 S	26	Aluminum	Bayonet Lock			600 V	7.5 A
Amphenol Aerospace Operations MS3120F16-26P	Metal	Military	Panel Mount	Neoprene	Unshielded	Cadmium Olive Drab Chromate	26	Flange	Copper Alloy	Gold	Aerospace Industrial Instrumentation Mass Transit Military	Environment Resistant	Olive Drab	MIL-DTL-26482 Series I	Strain Relief	Male Pins Receptacle	N (Normal)	125 °C	-55 °C	Crimp	16 S	26	Aluminum	Bayonet Lock			600 V	7.5 A
Amphenol Aerospace Operations MS3120F16-8P	Metal	Military	Panel Mount	Neoprene	Unshielded	Cadmium Olive Drab Chromate	8	Flange	Copper Alloy	Gold	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Environment Resistant	Olive Drab	MIL-DTL-26482 Series I	Backshell Cable Clamp	Male Pins Receptacle	N (Normal)	125 °C	-55 °C	Crimp			Aluminum	Bayonet Lock	Aluminum	Olive Drab Chromate over Cadmium			16 mm	8 mm
Amphenol Aerospace Operations MS3120F16-26S	Metal	Military	Panel Mount	Neoprene	Unshielded	Cadmium Olive Drab Chromate	26	Flange	Copper Alloy	Gold	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Environment Resistant	Olive Drab	MIL-DTL-26482 Series I	Backshell Cable Clamp	Female Sockets Receptacle	N (Normal)	125 °C	-55 °C	Crimp	16 S	26	Aluminum	Bayonet Lock	Aluminum	Olive Drab Chromate over Cadmium
