M80-897 Series
Manufacturer: Harwin Inc.
Beta
⌘K

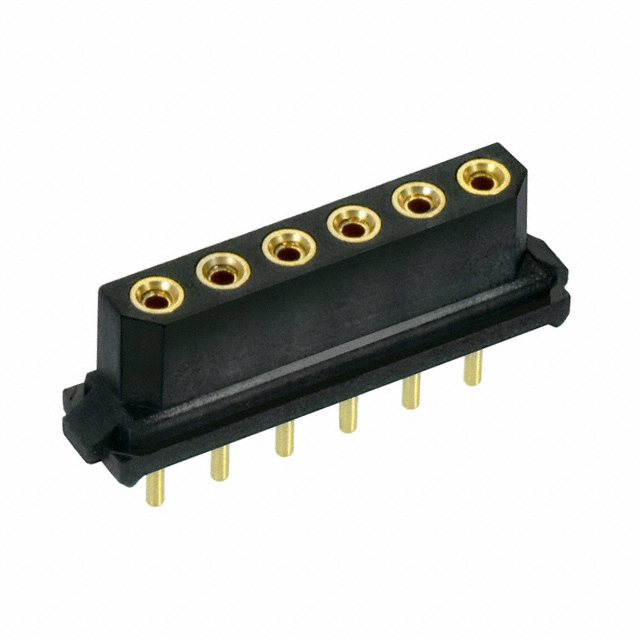

PCB RECEPTACLE, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 1 ROWS, 6 CONTACTS, THROUGH HOLE MOUNT
| Part | Contact Material | Insulation Material | Contact Shape | Applications | Pitch - Mating | Pitch - Mating | Connector Type | Contact Finish - Mating | Number of Rows | Number of Positions Loaded | Contact Finish - Post | Material Flammability Rating | Contact Type | Style | Voltage Rating | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Mated Stacking Heights | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Mounting Type | Fastening Type | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Beryllium Copper | Polyester Glass Filled | Circular | Automotive General Purpose Military | 0.079 " | 2 mm | Receptacle | Gold | 1 | All | Gold | UL94 V-0 | Female Socket | Board to Board Cable | 800 V | Solder | -55 C | 125 °C | Black | 7.23 mm 7.83 mm | 6 | 12 Áin | 0.3 Ám | 0.118 in | 3 mm | Through Hole | Locking Ramp | 0.202 in | 5.14 mm |
 Harwin Inc. | Beryllium Copper | Polyester Glass Filled | Circular | Automotive General Purpose Military | 0.079 " | 2 mm | Receptacle | Gold | 1 | All | Gold | UL94 V-0 | Female Socket | Board to Board Cable | 800 V | Solder | -55 C | 125 °C | Black | 7.23 mm 7.83 mm | 12 Áin | 0.3 Ám | 0.118 in | 3 mm | Through Hole | Locking Ramp | 0.202 in | 5.14 mm | |

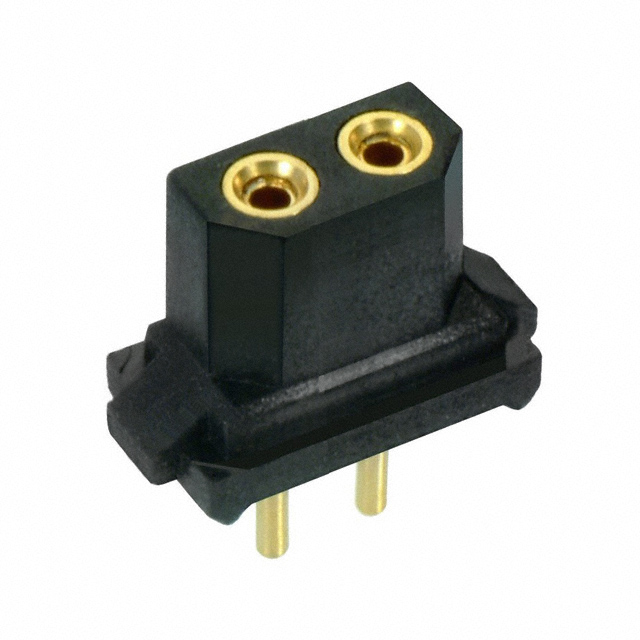

 Harwin Inc. | Beryllium Copper | Polyester Glass Filled | Circular | Automotive General Purpose Military | 0.079 " | 2 mm | Receptacle | Gold | 1 | All | Gold | UL94 V-0 | Female Socket | Board to Board Cable | 800 V | Solder | -55 C | 125 °C | Black | 7.23 mm 7.83 mm | 2 | 12 Áin | 0.3 Ám | 0.118 in | 3 mm | Through Hole | Locking Ramp | 0.202 in | 5.14 mm |
 Harwin Inc. | Beryllium Copper | Polyester Glass Filled | Circular | Automotive General Purpose Military | 0.079 " | 2 mm | Receptacle | Gold | 1 | All | Tin-Lead | UL94 V-0 | Female Socket | Board to Board Cable | 800 V | Solder | -55 C | 125 °C | Black | 7.23 mm 7.83 mm | 12 Áin | 0.3 Ám | 0.118 in | 3 mm | Through Hole | Locking Ramp | 0.202 in | 5.14 mm | |
 Harwin Inc. | Beryllium Copper | Polyester Glass Filled | Circular | Automotive General Purpose Military | 0.079 " | 2 mm | Receptacle | Gold | 1 | All | Gold | UL94 V-0 | Female Socket | Board to Board Cable | 800 V | Solder | -55 C | 125 °C | Black | 7.23 mm 7.83 mm | 12 Áin | 0.3 Ám | 0.118 in | 3 mm | Through Hole | Locking Ramp | 0.202 in | 5.14 mm | |

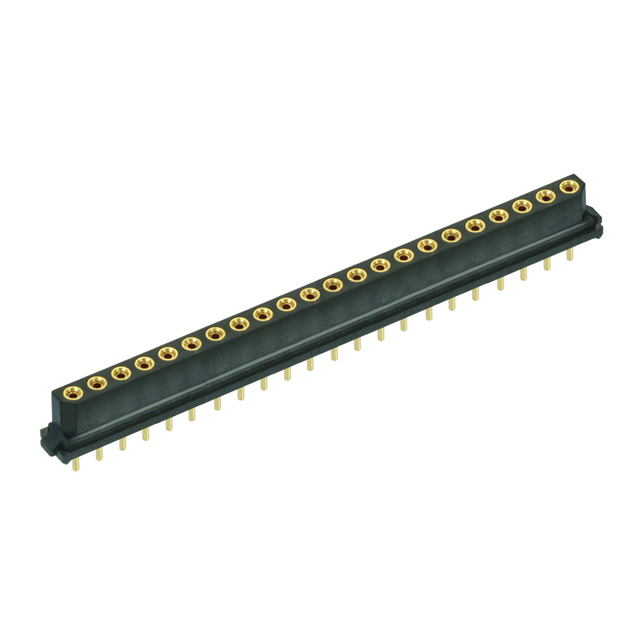

 Harwin Inc. | Beryllium Copper | Polyester Glass Filled | Circular | Automotive General Purpose Military | 0.079 " | 2 mm | Receptacle | Gold | 1 | All | Gold | UL94 V-0 | Female Socket | Board to Board Cable | 800 V | Solder | -55 C | 125 °C | Black | 7.23 mm 7.83 mm | 22 | 12 Áin | 0.3 Ám | 0.118 in | 3 mm | Through Hole | Locking Ramp | 0.202 in | 5.14 mm |

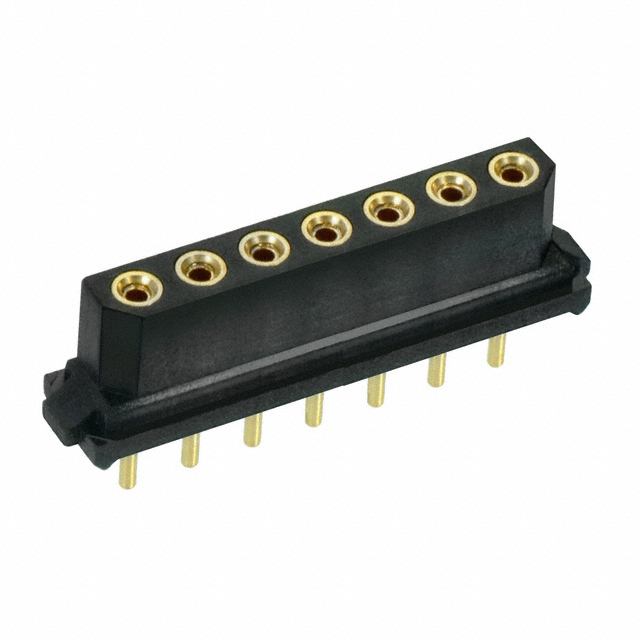

 Harwin Inc. | Beryllium Copper | Polyester Glass Filled | Circular | Automotive General Purpose Military | 0.079 " | 2 mm | Receptacle | Gold | 1 | All | Gold | UL94 V-0 | Female Socket | Board to Board Cable | 800 V | Solder | -55 C | 125 °C | Black | 7.23 mm 7.83 mm | 7 | 12 Áin | 0.3 Ám | 0.118 in | 3 mm | Through Hole | Locking Ramp | 0.202 in | 5.14 mm |
