LM26001-Q1 Series

1.5A Switching Regulator with High Efficiency Sleep Mode

Catalog

1.5A Switching Regulator with High Efficiency Sleep Mode

Part	Function	Frequency - Switching [Max]	Frequency - Switching [Min]	Voltage - Output (Min/Fixed)	Voltage - Output (Max)	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Output Configuration	Voltage - Input (Max) [Max]	Topology	Current - Output	Voltage - Input (Min) [Min]	Supplier Device Package	Mounting Type	Package / Case	Package / Case	Voltage - Output (Max) [Max]	Qualification	Grade	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Voltage - Output	Frequency - Switching	Board Type	Utilized IC / Part	Regulator Topology	Supplied Contents
Texas Instruments LM26001BMH/NOPB	Step-Down	500 kHz	150 kHz	1.234 V	16 V	1	-40 °C	125 ¯C	Adjustable	Positive	18 V	Buck	1.5 A	3 V	16-HTSSOP	Surface Mount	16-PowerTSSOP	0.173 in 4.4 mm Width
Texas Instruments LM26001MXA/NOPB	Step-Down	500 kHz	150 kHz	1.234 V		1	-40 °C	125 ¯C	Adjustable	Positive	38 V	Buck	1.5 A	3 V	16-HTSSOP	Surface Mount	16-PowerTSSOP	0.173 in 4.4 mm Width	35 V
Texas Instruments LM26001QMXAX/NOPB	Step-Down	500 kHz	150 kHz	1.234 V		1	-40 °C	125 ¯C	Adjustable	Positive	38 V	Buck	1.5 A	3 V	16-HTSSOP	Surface Mount	16-PowerTSSOP	0.173 in 4.4 mm Width	35 V	AEC-Q100	Automotive
Texas Instruments LM26001MXA	Step-Down	500 kHz	150 kHz	1.234 V		1	-40 °C	125 ¯C	Adjustable	Positive	38 V	Buck	1.5 A	3 V	16-HTSSOP	Surface Mount	16-PowerTSSOP	0.173 in 4.4 mm Width	35 V

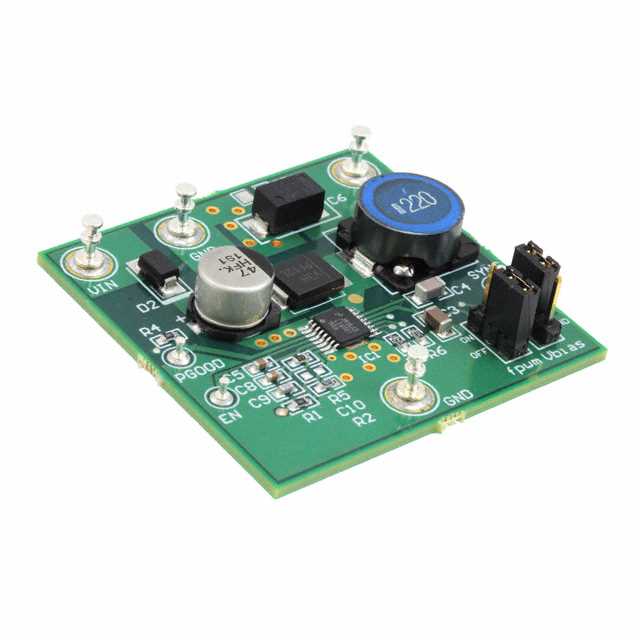

Texas Instruments LM26001EVAL													1.5 A									Non-Isolated	1	4.5 V	38 V	DC/DC Step Down	3.3 V	305 kHz	Fully Populated	LM26001	Buck	Board(s)
Texas Instruments LM26001MXAX	Step-Down	500 kHz	150 kHz	1.234 V		1	-40 °C	125 ¯C	Adjustable	Positive	38 V	Buck	1.5 A	3 V	16-HTSSOP	Surface Mount	16-PowerTSSOP	0.173 in 4.4 mm Width	35 V
Texas Instruments LM26001QMXA/NOPB	Step-Down	500 kHz	150 kHz	1.234 V		1	-40 °C	125 ¯C	Adjustable	Positive	38 V	Buck	1.5 A	3 V	16-HTSSOP	Surface Mount	16-PowerTSSOP	0.173 in 4.4 mm Width	35 V	AEC-Q100	Automotive

Catalog

1.5A Switching Regulator with High Efficiency Sleep Mode

Key Features

• LM26001-Q1 is an Automotive-Grade Product that is AEC-Q100 Grade 1 Qualified (–40°C to +125°C Operating Junction Temperature)High-Efficiency Sleep Mode40-µA Typical Iq in Sleep Mode10-µA Typical Iq in Shutdown Mode3.0-V Minimum Input Voltage4.0-V to 38-V Continuous Input Range1.5% Reference AccuracyCycle-by-Cycle Current LimitAdjustable Frequency (150 kHz to 500 kHz)Synchronizable to an External ClockPower Good FlagForced PWM FunctionAdjustable Soft-StartHTSSOP-16 Exposed Pad PackageThermal Shut DownLM26001-Q1 is an Automotive-Grade Product that is AEC-Q100 Grade 1 Qualified (–40°C to +125°C Operating Junction Temperature)High-Efficiency Sleep Mode40-µA Typical Iq in Sleep Mode10-µA Typical Iq in Shutdown Mode3.0-V Minimum Input Voltage4.0-V to 38-V Continuous Input Range1.5% Reference AccuracyCycle-by-Cycle Current LimitAdjustable Frequency (150 kHz to 500 kHz)Synchronizable to an External ClockPower Good FlagForced PWM FunctionAdjustable Soft-StartHTSSOP-16 Exposed Pad PackageThermal Shut Down

Description

The LM26001 is a switching regulator designed for the high-efficiency requirements of applications with standby modes. The device features a low-current sleep mode to maintain efficiency under light-load conditions and current-mode control for accurate regulation over a wide input voltage range. Quiescent current is reduced to 10 µA typically in shutdown mode and less than 40 µA in sleep mode. Forced PWM mode is also available to disable sleep mode. The LM26001 can deliver up to 1.5 A of continuous load current with a fixed current limit, through the internal N-channel switch. The part has a wide input voltage range of 4.0 V to 38 V and can operate with input voltages as low as 3 V during line transients. Operating frequency is adjustable from 150 kHz to 500 kHz with a single resistor and can be synchronized to an external clock. Other features include Power Good, adjustable soft-start, enable pin, input undervoltage protection, and an internal bootstrap diode for reduced component count. The LM26001 is a switching regulator designed for the high-efficiency requirements of applications with standby modes. The device features a low-current sleep mode to maintain efficiency under light-load conditions and current-mode control for accurate regulation over a wide input voltage range. Quiescent current is reduced to 10 µA typically in shutdown mode and less than 40 µA in sleep mode. Forced PWM mode is also available to disable sleep mode. The LM26001 can deliver up to 1.5 A of continuous load current with a fixed current limit, through the internal N-channel switch. The part has a wide input voltage range of 4.0 V to 38 V and can operate with input voltages as low as 3 V during line transients. Operating frequency is adjustable from 150 kHz to 500 kHz with a single resistor and can be synchronized to an external clock. Other features include Power Good, adjustable soft-start, enable pin, input undervoltage protection, and an internal bootstrap diode for reduced component count.
