ESK227M Series

Manufacturer: KEMET

Catalog

ELECTROLYTIC CAPACITOR, 220 ΜF, 35 V, ± 20%, PC PIN, 2000 HOURS @ 85°C, POLAR

Part	Lead Spacing	Lead Spacing	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Ripple Current @ High Frequency	Voltage - Rated	Ripple Current @ Low Frequency	Polarization	Applications	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
KEMET ESK227M035AG3AA	0.138 in	3.5 mm	220 µF	85 °C	-40 C	Can Radial	0.492 in	12.5 mm	20 %	0.315 in	8 mm	Through Hole	348 mA	35 V	290 mA	Polar	General Purpose	2000 Hrs
KEMET ESK227M6R3AC3AA	0.079 in	2 mm	220 µF	85 °C	-40 C	Can Radial	0.492 in	12.5 mm	20 %	0.197 in	5 mm	Through Hole	240 mA	6.3 VDC	200 mA	Polar	General Purpose	2000 Hrs
KEMET ESK227M016AG3DA	0.138 in	3.5 mm	220 µF	85 °C	-40 C	Can Radial	0.492 in	12.5 mm	20 %	0.315 in	8 mm	Through Hole		16 V		Polar	General Purpose	2000 Hrs
KEMET ESK227M025AG3EA	0.138 in	3.5 mm	220 µF	85 °C	-40 C	Can Radial	0.492 in	12.5 mm	20 %	0.315 in	8 mm	Through Hole	348 mA	25 VDC	290 mA	Polar	General Purpose	2000 Hrs
KEMET ESK227M063AH2AA	0.197 "	5 mm	220 µF	85 °C	-40 C	Can Radial	17 mm		20 %	0.394 in	10 mm	Through Hole	492 mA	63 V	410 mA	Polar	General Purpose	2000 Hrs	0.669 "
KEMET ESK227M050AH1EA	0.197 "	5 mm	220 µF	85 °C	-40 C	Can Radial	13.5 mm		20 %	0.394 in	10 mm	Through Hole		50 VDC		Polar	General Purpose	2000 Hrs		0.531 in
KEMET ESK227M050AH9KA	0.197 "	5 mm	220 µF	85 °C	-40 C	Can Radial	14 mm		20 %	0.394 in	10 mm	Through Hole	456 mA	50 VDC	380 mA	Polar	General Purpose	2000 Hrs		0.551 in

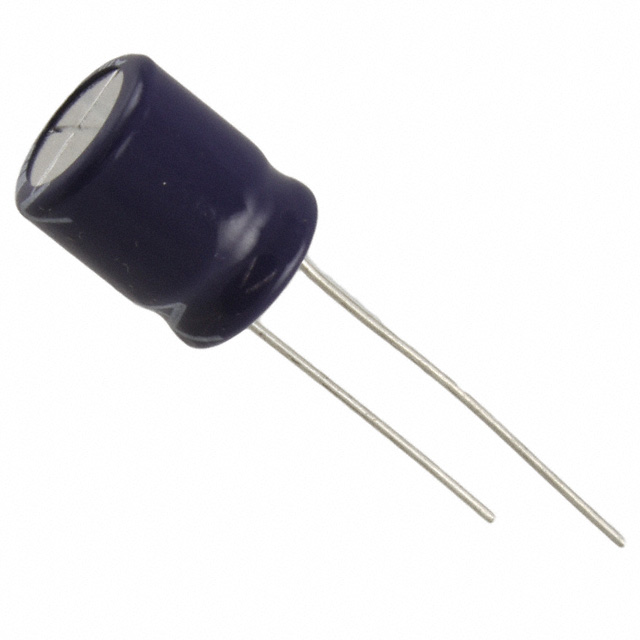

KEMET ESK227M035AH1AA	0.197 "	5 mm	220 µF	85 °C	-40 C	Can Radial	13.5 mm		20 %	0.394 in	10 mm	Through Hole		35 V		Polar	General Purpose	2000 Hrs		0.531 in
KEMET ESK227M050AH1AA	0.197 "	5 mm	220 µF	85 °C	-40 C	Can Radial	13.5 mm		20 %	0.394 in	10 mm	Through Hole		50 VDC		Polar	General Purpose	2000 Hrs		0.531 in
