9408 Series
Manufacturer: Belden Inc.
Beta
⌘K

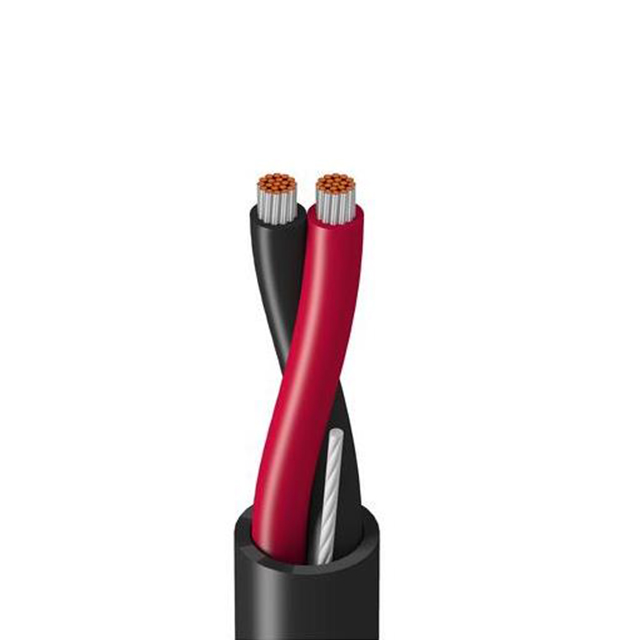

MULTIPAIR CABLE, POWER LIMITED TRAY, UNSHIELDED, 1 PAIR, 20 AWG, 500 FT, 152.4 M
| Part | Features | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Conductor Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Jacket Color | Wire Gauge | Number of Conductors | Ratings | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Rip Cord | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 19 | 32 AWG | Poly-Vinyl Chloride (PVC) | 5.54 mm | 0.218 " | Copper Tinned | Multi-Conductor | 0.94 mm | 0.037 in | 152.4 m | 500 ft | Chrome | 20 AWG | 2 | ||
 Belden Inc. | Rip Cord | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 19 | 32 AWG | Poly-Vinyl Chloride (PVC) | 5.54 mm | 0.218 " | Copper Tinned | Multi-Conductor | 0.94 mm | 0.037 in | 762 m | 2500 ft | Chrome | 20 AWG | 2 | UL Style 2462 | Instrumentation |
